Description

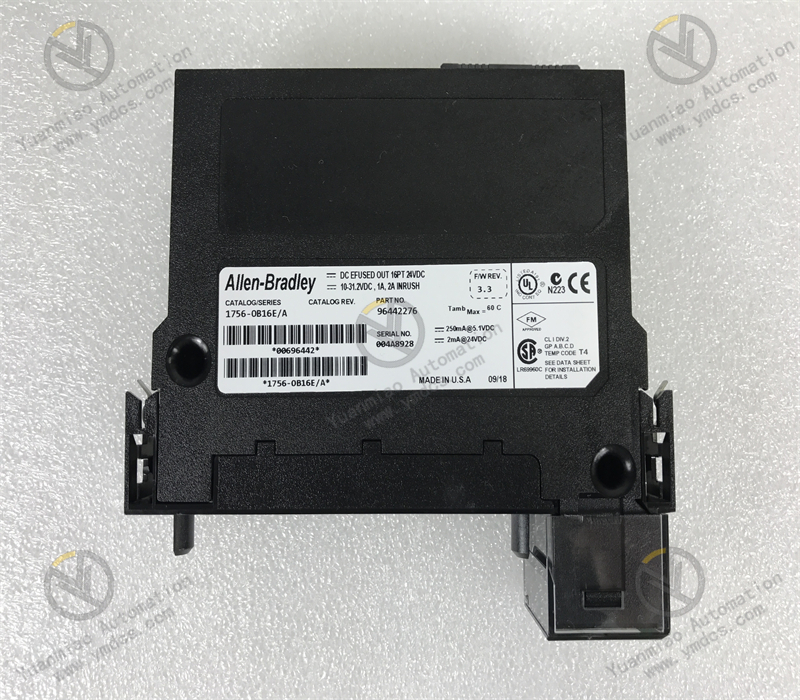

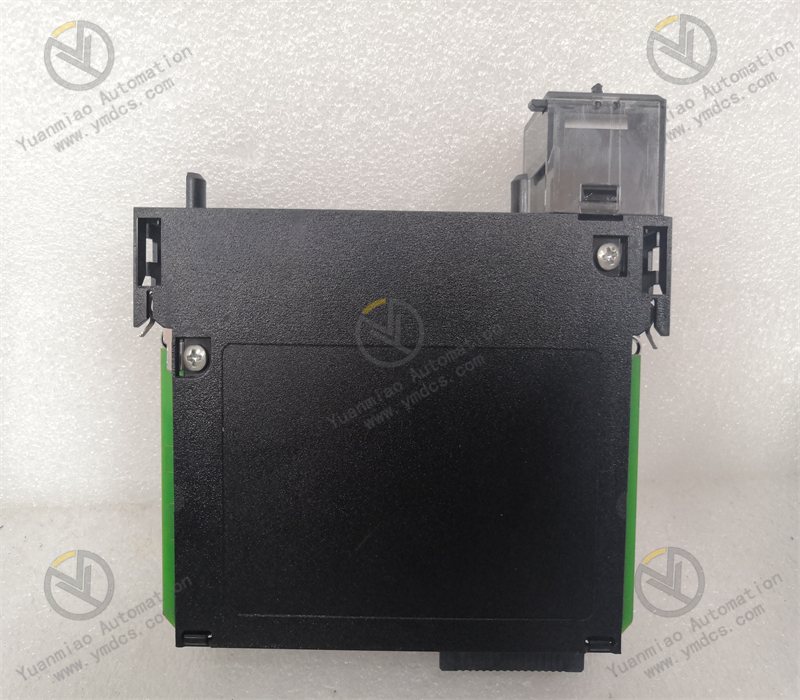

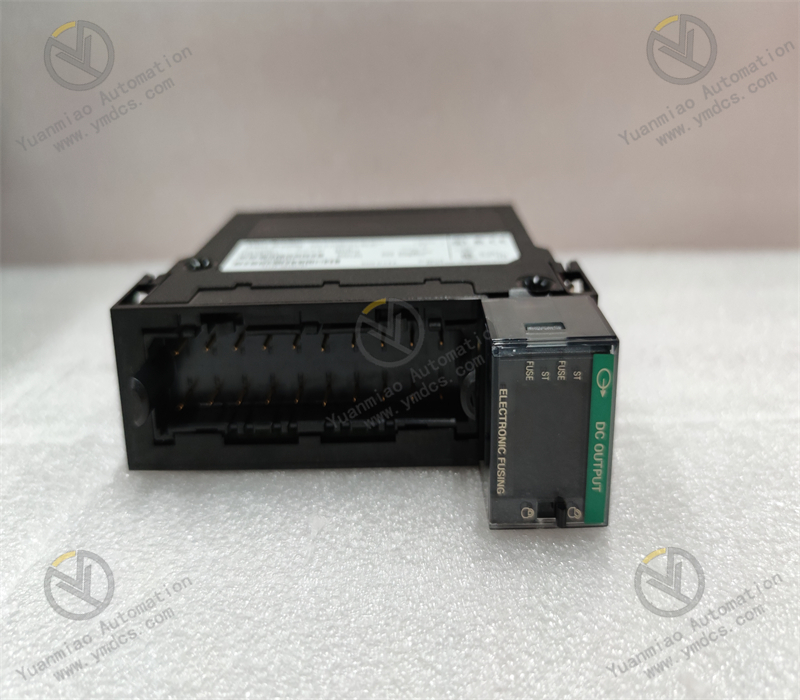

Description: The Allen-Bradley 1756-OB16E is a ControlLogix Discrete output module. This is a DC output module with Sixteen (16) output channels. It has Two (2) electronically fused groups of Eight (8) outputs each and delivers an output voltage range of 10-31.2 VDC. It may be installed to any 1756 local or distributed I/O chassis.
Technical Specifications for 1756-OB16E
| Manufacturer | Rockwell Automation |
| Removable Terminal Block(s) | 1756-TBNH; 1756-TBSH |
| Thermal Dissipation | 13.98 BTU/hr @ 60 °C (140 °F) |
| Backplane Current at 5.1 Volts | 250 milliamperes |
| Backplane Current at 24 Volts | 2 milliamperes |
| Output Delay Time, ON to OFF | 360 µs nom/1 ms max |
| Output Delay Time, OFF to ON | 70 µs nom/1 ms max |
| Slot Width | 1 |
| RTB Keying | User-defined mechanical |
| Module Keying | Electronic |
| Nominal output voltage | 24VDC |
| Output Voltage range | 10-31.2 VDC |
| No. of outputs | Sixteen (16) |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-OB16E |
| Series | ControlLogix |
| Module Type | Digital DC output Module |
| Power Dissipation (Max) | 4.1 W @ 60 °C (140 °F) |
| Outputs | 16-Point Electronically Fused |
| Voltage | 12-24 Volts DC |
| Operating Voltage Range | 10-30 Volts DC |
| Maximum Output Current Rating-Point | 1 Amp at 60 Celsius |
| Maximum Output Current Rating-Module | 8 Amps at 60 degrees Celsius |
| Backplane Current at 5 Volts | 250 milliamps |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Isolation Voltage | 50 Volts Continuous |
The Allen-Bradley 1956-OB16E is a Discrete output module that is part of the ControlLogix Programmable Automation Controllers (PLC) platform. This module is specifically a DC output module that delivers an output voltage range of 10-31.2 VDC with nominal value of 24VDC. It comes with Sixteen (16) output channels that is divided in Two (2) electronically-fused groups of Eight (8) channels each group. This module is typically used to actuated 24VDC rated devices such as relay coils, solenoid actuated devices, pilot lamps, sirens and other similar electrical loads. The 1756-OB16E is a single-slot wide module that is compatible for use with any 1756 ControlLogix controllers. It may be installed to any 1756 ControlLogix rack, specifically 1756-A4; 1756-A17; 1756-A10; 1756-A13 and 1756-A17. Additionally, it may serve as a local I/O or a distributed I/O component.
The 1756-OB16E provides an output current of 1 A @ 60 °C (140 °F) per channel or 8 A @ 60 °C (140 °F) per module. It has a surge current rating of 2 A for 10 ms per point which is repeatable every 2 s @ 0 °C (32 °F) @ 24V DC. Additionally, the module’s minimum load current is 3 mA per channel.
Built-in electronic fusing is provided per group. Each output channel exhibits an OFF to ON output delay time of 70 µs nom/1 ms max and On to Off delay time of 360 µs nom/1 ms, max. It draws current from the backplane amounting to 250 mA at 5VDC and 2 mA at 24VDC while the total backplane power requirement is 1.32 Watts and maximum power dissipation is 4.1 W @ 60 °C (140 °F). The 1756-OB16E module has a voltage category of 12 to 24 Volts DC source voltage, as well as an operating voltage of 10 to 31.2 Volts DC. Its total backplane power is 1.32 Watts and a current draw of 250 milliamps at 5.1 Volts and 2 milliamps at 24 Volts. It also has a maximum of 1 milliamp per point of off-state leakage current and a maximum of 400 mV DC voltage at 1 Amp on-state voltage drop. Its maximum current per point is 1 Amp at 60 degrees Celsius and its maximum current per module is 8 Amps at 60 degrees Celsius. This module has been routine-tested at 1350 Volts AC for 2 seconds and it has a continuous isolation voltage of 250 Volts. Its minimum load current is 3 milliamps per point and its typical surge current is 2 Amps for 10 seconds per point, which is repeatable every 2 seconds at 0 degrees Celsius. The power dissipation of this module is a maximum of 4.1 Watts at 60 degrees Celsius, while its thermal dissipation is 13.98 BTU/hour. It has an output delay time of 70 microseconds nominal/maximum of 1 millisecond from off to on and 360 microseconds nominal/maximum of 1 millisecond from on to off. Its operating temperature is between 0 and 60 degrees Celsius and its non-operating temperature is between -40 and 85 degrees Celsius. This module also allows for the modification of the states in the fault mode and the states in the program mode.
