Description

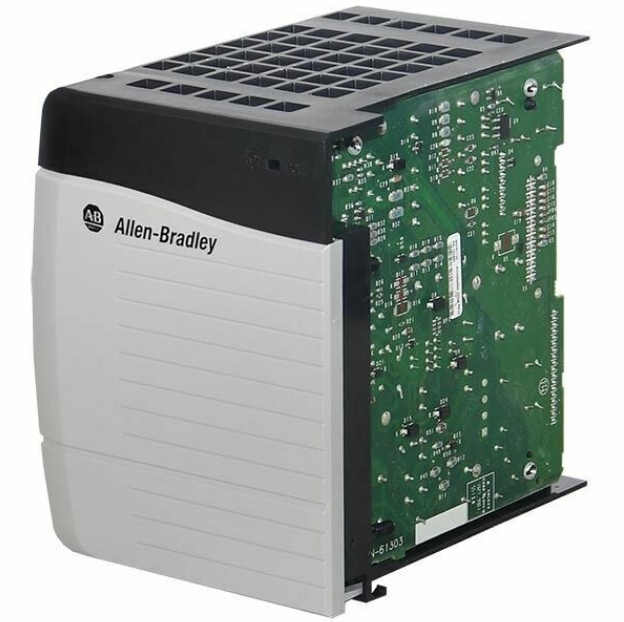

Description: The Allen-Bradley 1756-PB75 is a ControlLogix Power Supply. This is a Standard Power Supply that is externally powered by an input Voltage range of 18-32VDC with nominal input voltage of 24VDC. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F) and current capacity of 1.5 A at 1.2VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC. This module is installed at the left most side of the 1756 chassis.
Technical Specifications for 1756-PB75
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1756-PB75 |
| Chassis Series | Series B; Series C |
| Chassis Compatibility | 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
| Hold Up time | 35 ms @ 18V DC; 40 ms @ 24V DC; 40 ms @ 32V DC |
| Output Power | 75 W @ 0…+60 °C (+32…+140 °F) |
| Current Capacity | 1.5A at 1.2 VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC |
| Max Inrush Current | 30 Amperes |
| Isolation Voltage | 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s |
| Input Voltage Range | 18-32VDC |
| Nom Input Voltage | 24VDC |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Module Type | Standard Power Supply |
| Input Power | 95 W |
| Location | 1756 Chassis Left Side |
| Weight | 0.95 kg (2.10 lb) |
| Dimensions | 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.) |
| Input Voltage | 24 Volts DC |
| Voltage Range | 18-32 Volts DC |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series B |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
The 1756-PB75 is a Standard ControlLogix power supply. This power supply is a DC powered module, mainly used to deliver backplane power and enable module operation. This power supply is mounted on the left most side of a particular ControlLogix chassis. The 1756-PB75 is compatible with most of ControlLogix chassis, particularly Series B and Series C 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 chassis. When terminating incoming power connection to this power supply, recommended wire size is 2.5 mm2 or 14 American Wire Gauge (AWG) solid or stranded copper wire with insulation rating of 90 °C (194 °F), or higher and maximum insulation thickness of 1.2 mm (3/64 in.). Tighten screw with Torque of 0.565 N-m (5 lb-in).This power supply has physical dimension of 14.0 (H) x 11.2 (W) x 14.5 cm (D) (5.51 x 4.41 x 5.71 in and weighs 0.95 kg (2.10 lb). The 1756-PB75 is externally powered by a nominal supply voltage of 24VDC with applicable voltage range of 18-32VDC. It has an input power rating of 95W and inrush current rating of 30A. It delivers an output power of 75 W @ 0…+60 °C (+32…+140 °F) and current capacities of 1.5 A at 1.2VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC. This power supply also features hold up time of 35 ms @ 18V DC; 40 ms @ 24V DC and 40 ms @ 32V DC with isolation voltage of 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s. It is part of the 1756 ControlLogix product family that also provides power to the chassis backplane. The 1756-PB75 has an input voltage range between 18 and 32V DC with 24V DC nominal and a power rating of 95W input power and 75W maximum output power at 0-60 °C. The module has a maximum surge current of 30A and a signal hold up time of 35ms at 18V DC, 40ms at 24V DC, and 40ms at 32V DC. It has a current capacity of 1.5A at 1.2V, 4A at 3.3V, 13A at 5.1V, and 2.8A at 24V DC. The 1756-PB75 has an isolation voltage of 250V using a reinforced insulation type tested at 3500V DC for 60s between power input-to-backplane. Its circuitry uses 2.5 mm2 (14 AWG) stranded or solid copper wire with a 0.8 N-m (7 lb-in) conductor screw torque. The 1756-PB75 has a designated T4 ATEX, IEC, and North America temperature codes and it comes with an open-style enclosure. It has a 0-60 °C (32-140 °F) functional temperature range at a relative humidity condition of 5-95% without condensation. The 1756-PB75 has an operational shock rating of 30G and it can withstand an operational vibration of 2.0G at 10-500Hz. It weighs approximately 0.95 kg (2.10 lb) and has a shipping dimension of 14.0cm x 11.2cm x 14.5cm (5.51in x 4.41in x 5.71in).
