Description

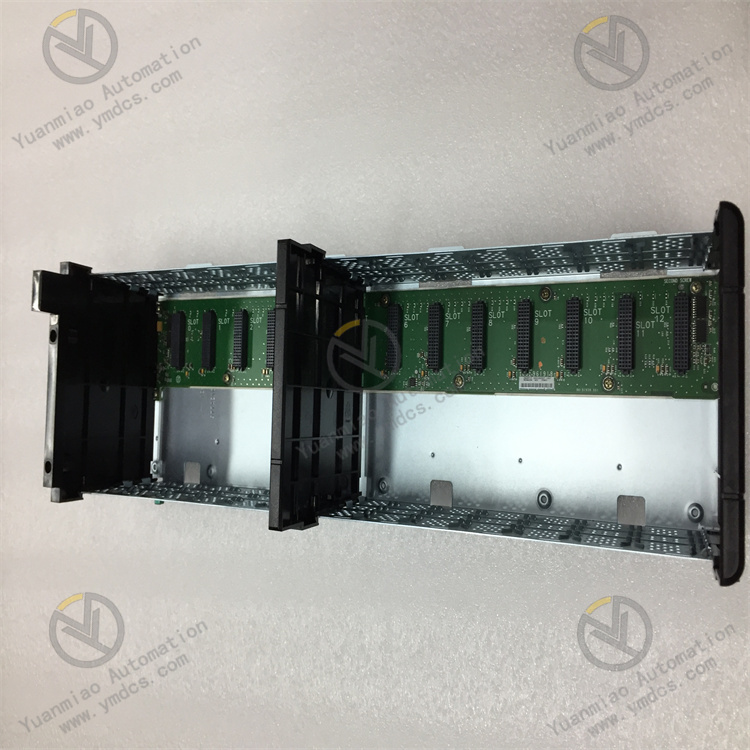

Description: The Allen-Bradley 1756-A13 is ControlLogix chassis. This hardware provides Thirteen (13) module mounting slots, hosting the ControlLogix modules and enables backplane connectivity. This chassis has a maximum backplane current of 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC. It supports horizontal mounting with minimum cabinet size requirement of 60.9 x 76.2 x 20.3 cm (24 x 30 x 8 in.).
Technical Specifications for 1756-A13
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Operating Temperature, Series B | 0°C to +60°C (+32°F to +140°F) |
| No. of mounting tabs | Eight (8) |
| Orientation | Horizontal |
| Backplane Current @ 24VDC | 2.8 A/2.8 A |
| Backplane Current @ 5.1VDC | 15 A/6 A |
| Backplane Current @ 3.3VDC | 4A/4 A |
| Backplane Current @ 1.2VDC | 1.5 A |
| No. of slots | Thirteen (13) slots |
| Operating Temperature, Series C | -25…+60 °C (-13…+140 °F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5 to 95% (without condensation) |
| Part Number/Catalog No. | 1756-A13 |
| Series | ControlLogix |
| Module Type | Chassis |
| Mounting | Panel Mount |
| Wire size | Functional Earth Ground - 8.3 mm2 (8 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater Protective Earth Ground - 2.1 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater |
| Slots | 13 |
| Power Dissipation (Max) | 5.4 Watts |
| Dimensions | 24 x 30 x 8 inches |
| Weight | 4.2 pounds (1.9 kilograms) |
| Enclosure | Open |
| Backplane Current (5 Volts DC) | 10 amps |
| Backplane Current (24 Volts DC) | 2.8 Amps |

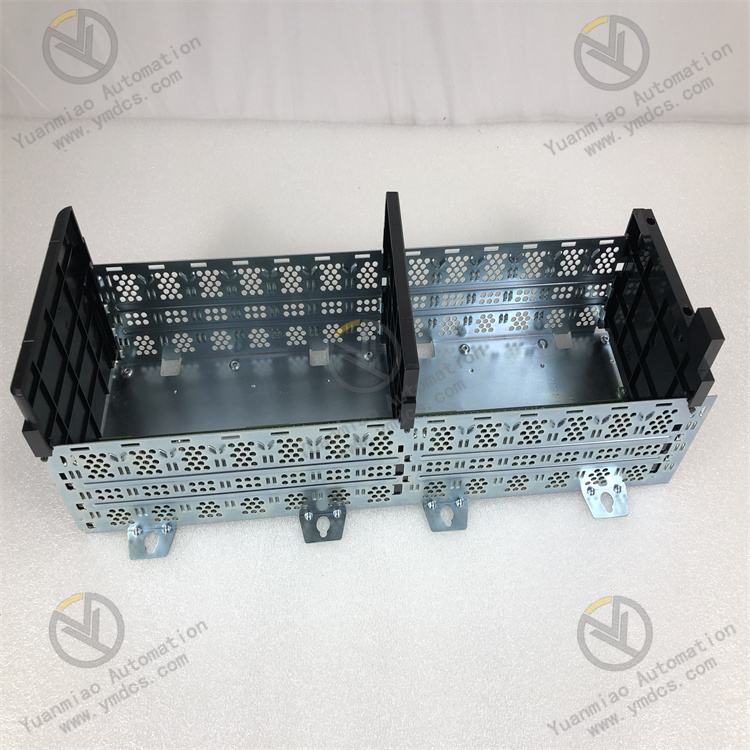

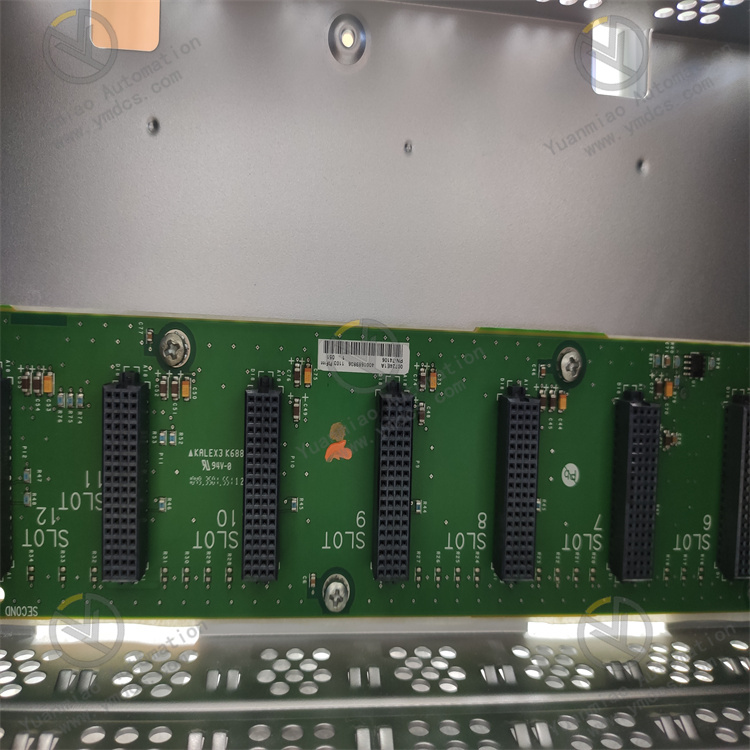

The 1756-A13 is a ControlLogix chassis from Allen-Bradley. This chassis provides module housing, providing 13 module slots where ControlLogix controllers and I/O modules may be installed. Aside from providing the mounting slots, the chassis also host the electronic circuitry which make-up the backplane. The backplane distributes the current which is used by each of the module to energize individual circuitry to function properly. The 1756-A13 supports horizontal mounting only. It requires minimum cabinet size of 60.9 x 76.2 x 20.3 cm (24 x 30 x 8 in.) for installation and weighs 1.90 kg (4.2 lb). It is directly installed to the enclosure subpanel via the provided mounting tabs located on top and bottom of the chassis. Install this chassis at a temperature range of 0…60 °C (32…140 °F) for Series A and B chassis and -25…+60 °C (-13…+140 °F) for Series C chassis. It has operating vibration rating of 2 g @ 10…500 Hz and operating shock rating of 30 g. This chassis may be used with the Logix 5560, 5570 and 5580 product families. The 1756-A13 has backplane current consumption of 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC. It has power dissipation of 5.4 Watts with an open type enclosure rating. The chassis backplane distributes power to each of the modules within the chassis by providing a high-speed communication path between modules. It needs a Bulletin 1492 IFM or an RTB to connect all the field-side wiring. The 1756-A13 Standard Chassis provides easy maintenance with the Removal and Insertion Under Power (RIUP) feature. For preventing replacement errors, it also offers electronic keying.
