Description

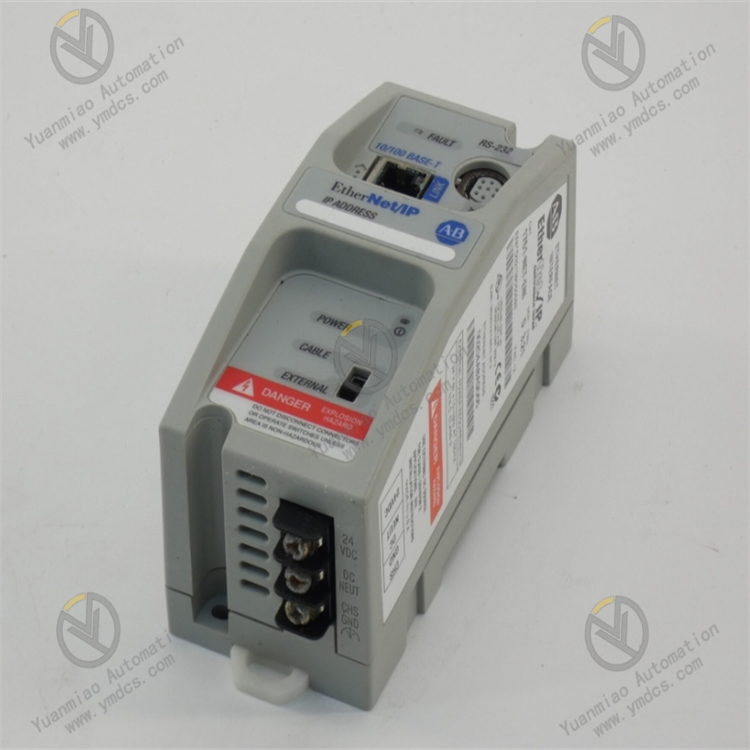

Description: 1761-NET-ENI is an Allen-Bradley Ethernet Interface module for MicroLogix, CompactLogix and DF1 Protocol enabled devices to communicate over an Ethernet network. This interface module has an 8-Pin Mini DIN RS-232 port and a single Ethernet communication port. It is powered by a 24VDC voltage supply.
Technical Specifications for 1761-NET-ENI
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1761-NET-ENI |
| Type | Ethernet Interface |
| Number or ports: | 2; 1 (RS232); 1 Ethernet I/P |
| Ports | RS-232 |
| Protocol | DF1 Full-Duplex; Ethernet |
| Ethernet Transmission speed: | Series A and B: 10 mbps Series C and D: 10/100 mbps |
| Safety Feature | Master Control Relay |
| Mounting: | DIN Rail or Panel |
| Power Supply: | 20.4 to 26.4V dc |
| 24 Volts DC Current Draw | 50 mA typical, 100 mA maximum |
| Item weight | 1 pound |
| Dimensions | 4.64 x 2.05 x 2.55 in |
| Certifications | IEC801-2, 3, 4, 5, and 6 |
| Cable | Cat5, Cat5e, Cat6, Cat6e cable |
| Storage Temperature | -45 to 85 degrees Celsius |
| Operating Temperature | 0° C…+60° C (+32° F…+140° F) |
| Internal Isolation: | 710V dc for one minute |
| Product Lifecycle Status* | Discontinued/Obsolete |
The Allen-Bradley 1761-NET-ENI is an Ethernet/IP communication interface. It provides connectivity for CompactLogix, MicroLogix, and SLC 500 devices, as well as other DF1 full-duplex devices to Ethernet network. The 1761-NET-ENI has a 100 Base-T Port embedded with LEDs which allow for reliable connection to an Ethernet network. It is provided with visual indicator LEDs that provide easy-to-view links and transmit/receive statuses. It is equipped with an RS-232 port which provides isolation and will auto-baud on power-up for detecting the communications of the port setting of the controller attached to it. The 1761-NET-ENI is provided with the ability to force Ethernet to 11 Mbps or 100 Mbps and half-duplex or full-duplex where the default us auto negotiable. Configuration over Ethernet can be done with a configuration security mask provision.
The 1761-NET-ENI’s most vital feature is the diagnostic page which displays the important module information and all the Ethernet connections in use. One of the best things about the 1761-NET-ENI communication interface is that it is efficient and delivers exceptional output with less power consumption. The maximum operating temperature for the 1761-NET-ENI is 0 to 70 degrees Celsius and the maximum storage temperature is -45 to 85 degrees Celsius. The most commonly used standards are IEC801-2, 3, 4, 5, and 6. Its operating humidity is 5-95% non-condensing. The 1761-NET-ENI’s regulation, approvals, and certifications include the UL, C-UL, CE, and Class 1, Division 2 certifications; this module provides Ethernet/IP connectivity to all DF1 full-duplex devices including all MicroLogix and CompactLogix controllers. This Ethernet Interface permits uploading or downloading of programs, communicate between controllers and generate emails while connected to non-Ethernet controllers.
The 1761-NET-ENI is an Allen-Bradley Advanced Interface Converter (AIC) which enables DF1 capable devices such as MicroLogix, CompactLogix, SLC 500, PLC5 and 3rd party devices to connect to an EtherNet/IP network. This converter basically allows a point-to-point device to connect to a multi-node communication network.
