IC200GBI001 - Network Interface Module

Description

Description: The IC200EBI001 is a Genius Network Interface Unit (NIU) from the VersaMax Programmable Logic Controller (PLC) product family. This module is manufactured by Emerson automation, formerly by GE Fanuc. This module functions as an Genius slave module, hosting and controlling I/O modules for implementing distributed I/O architecture. It has Two (2) Genius bus terminals for main bus connection (upper terminal) and redundancy terminal (lower terminal). It supports up to 38.4 Kbaud transmission, hosting up to Eight (8) per rack and maximum of Eight (8) racks. It supports 128 bytes of input and output per scan, each; Discrete input memory of 1024 points; Discrete output memory of 1024 bytes; Analog input memory of 128 bytes and analog output memory of 128 bytes.

Technical Specifications for IC200GBI001

Brand	GE Fanuc
Series	Versamax
Manufacturer	Emerson Automation / GE Fanuc (former)
Series	VersaMAx
Part Number	IC200GBI001
Product type	Genius Network Interface Unit
Brand	GE Intelligent Platforms/GE Fanuc
No. of communication ports	Two (2) Genius terminals
Bulletin	IC200
Redundancy	Supported
Product Type	Network Interface Unit
No. of modules	Eight (8) modules
Network Inputs/Bus Scan	128 bytes
No. of racks	Eight (8) racks
I/O Memory	1024 points

Supported transmission rate	153.6 kbaud for extended network configuration; 153.6 kbaud, 76.8 Kbaud and 38.4 Kbaud for standard configuration.
Analog I/O Memory	128 bytes
Wiring topology	Daisy-chain
Power Rating at 250 mA	5 V
Terminating resistor	75, 100, 120, or 150 ohms
Power Rating at 10 mA	3.3 V
Compatible controllers	Series 90-70; PACSystem RX7i; PACSystem RX3i
Serial Bus Address Range	0 to 31
No. of Discrete I/O	2048
Number of I/O	64
No. of discrete inputs	1024

The IC200GBI001 is a VersaMax communication module. This module is a Genius Network Interface Unit, allowing VersaMax I/O modules to be installed in distributed I/O architecture. This module is designed to host up to Eight (8) I/O module per rack and supports installation of up to Eight (8) racks, for a maximum number of 64 I/O module support. It supports transmission speed of 153.6 kbaud for extended network configuration; 153.6 kbaud, 76.8 Kbaud and 38.4 Kbaud for standard configuration, The IC200GBI001 can accommodate a high number of I/O points, specifically, up to 1024 points for Discrete Inputs; 1024 Discrete outputs; 128 bytes of analog analog input memory and 128 bytes of analog output memory. This module can manage scanning of 128 bytes of network input per scan and 128 bites of output per scan. It has power consumption of 250 mA @ 4VDC and 10 mA @ 3.3 mA. The IC200GBI001 is compatible for use with a variety of controller systems as Genius protocol is supported by previous and modern controller platforms. Compatible control systems include Series 90-70 and PACSystem RX7i and PACSystem RX3i. Appropriate firmware revisions must be loaded to both the controller and the IC200GBI001 Genius Network Interface Module.

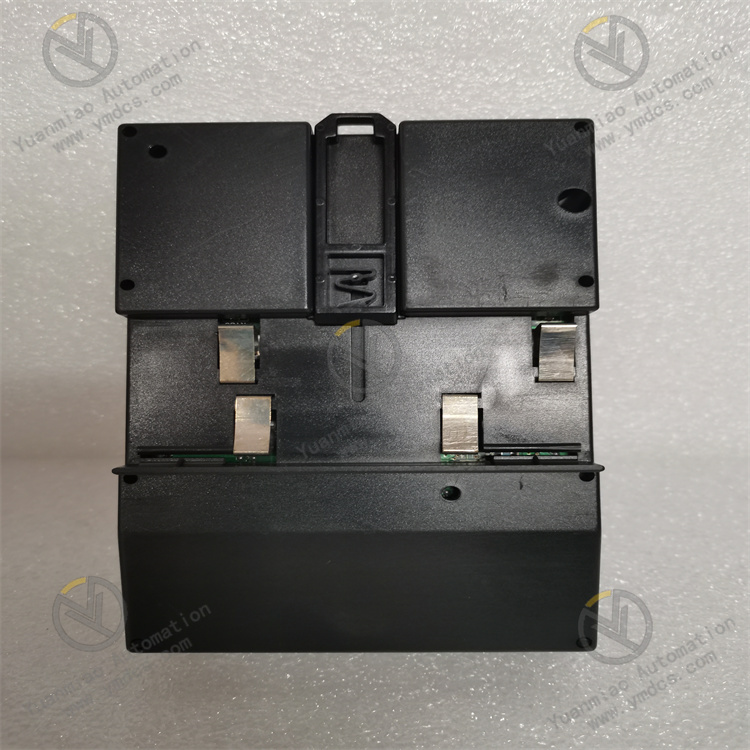

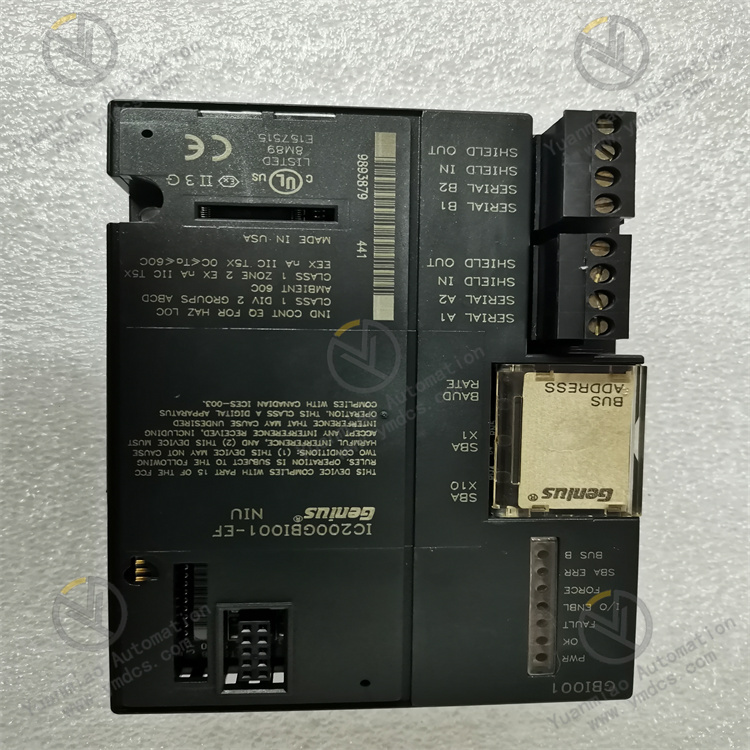

The IC200GBI001 is provided with dual Genius connection terminals. The upper terminal serves as the primary Genius connection point while the lower terminal serves as the redundant port. These ports are designed for connecting in Daisy chain topology, installed with a terminating resistor at both ends of the communication cable. Appropriate resistor values are 75, 100, 120, or 150-ohm across terminals Serial 1 and 2. The GE Fanuc IC200GBI001 unit is a Network Interface Unit or NIU that is manufactured by GE Intelligent Platforms/GE Fanuc. It belongs to the GE Versamax series and it is designed to provide control functions for different I/O modules that are connected to it. When the NIU is installed with the right firmware version, it is compatible with several modules such as the Genius Bus controllers, Series 90-70 PLCs, and the PacSystems RX7i and Rx3i PLCs. Any computer that can control the bus can be used as the host PC. Each of the racks on the IC200GBI001 Network Interface Unit has the capacity for 8 modules, and it also supports 8 racks maximum. The maximum network input that each bus can scan is 128 bytes with a maximum discrete I/O memory of 1024 points and analog I/O memory of 128 bytes. The GE Fanuc IC200GBI001 unit comes with 2 different power settings that are 3.3 Volts of power at 10 milliamps of current and 5 Volts of power at 250 milliamps of current. It has serial bus addresses ranging from 0 to 31. The rate of data transfer throughout the network is 153.6 Kilo-baud for extended transfers, and 153.6 Kilo-76.8 Kilo-baud, or 38.4 Kilo-baud for standard transfers. The operators of the IC200GBI001 Network Interface Unit must know that the rate of transfer varies depending on the distance between the devices and the number of devices supported. The IC200GBI001 NIU comes with a wide range of features including 64 analog I/O, the ability to use fiber-optic cables and shielded twisted pair (STP) cables, removable connectors, and operator diagnostics data available through the Enhanced Diagnostics Mode (EDM). Additionally, this network interface unit provides redundancy for the hardware as well as the media.
