Description

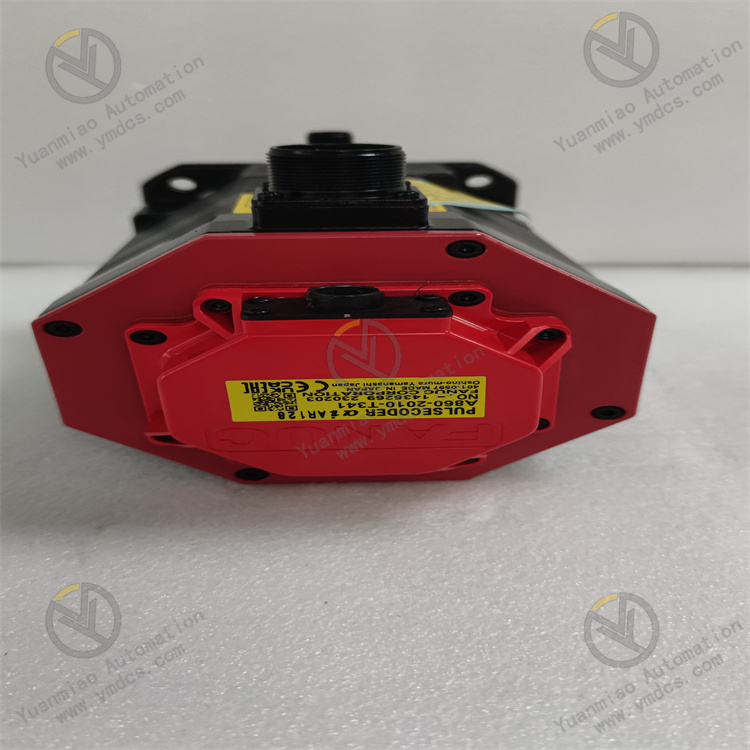

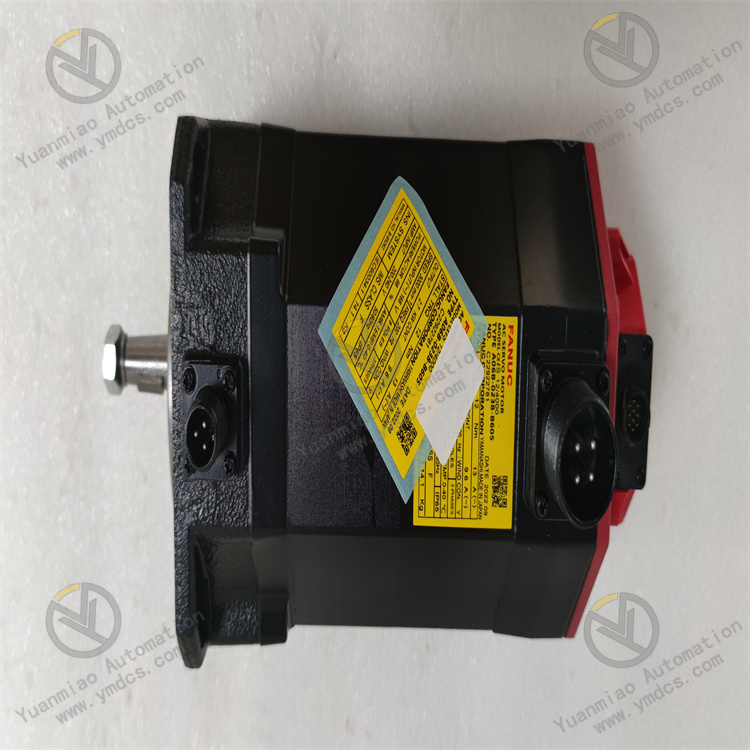

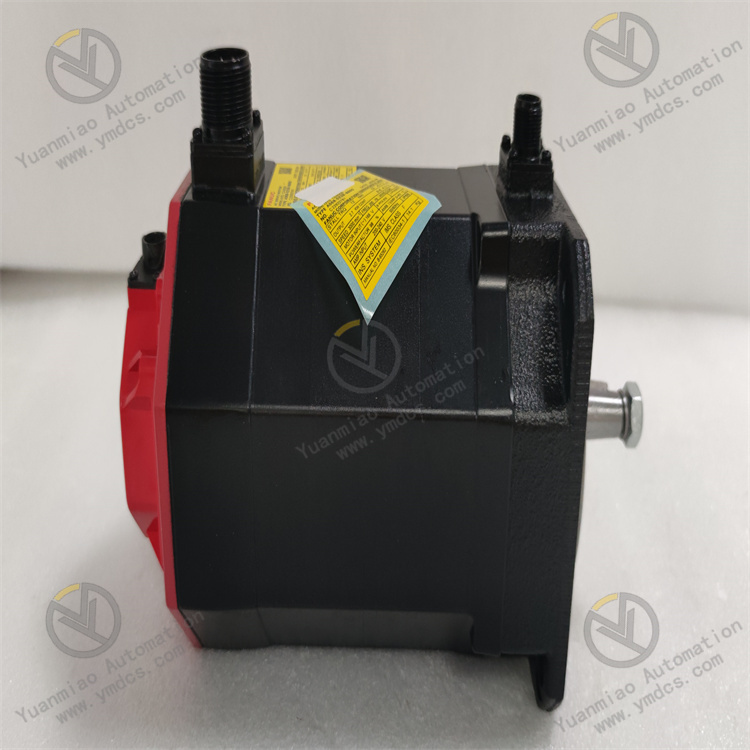

Motor Spec: A06B-0238-B605
Brand: Fanuc
Model: AIS12/4000
Motor Type: AC
Output: 2.7kW
Speed: 3000RPM
Voltage: 168V
Frequency: 200Hz
Phase: 3
Amps: 9.6A
The basic structure of AC servo motor is similar to that of AC induction motor (asynchronous motor). The excitation winding Wf and the control winding WcoWf, which have two phase space displacement angles of 90° on the stator, are connected with constant AC voltage, and the AC voltage or phase change applied to the Wc is used to control the operation of the motor. Ac servo motor has the characteristics of stable operation, good controllability, fast response, high sensitivity, and strict nonlinearity index of mechanical characteristics and adjustment characteristics (requirements are less than 10% ~ 15% and less than 15% ~ 25%, respectively). The basic structure of DC servo motor is similar to that of general DC motor. Motor speed n=E/K1j=(UA-IARA)/K1j, where E is the armature back electromotive force, K is a constant, j is the magnetic flux per pole, Ua, Ia are the armature voltage and armature current, Ra is the armature resistance, change Ua or change φ, can control the DC servo motor speed, but generally use the method of controlling the armature voltage, In a permanent magnet DC servomotor, the field winding is replaced by a permanent magnet with a constant flux φ. Dc servo motor has good linear adjustment characteristics and fast time response.
Advantages and disadvantages of DC servo motor
Advantages: precise speed control, torque speed characteristics are very hard, simple control principle, easy to use, cheap.
Disadvantages: brush commutation, speed limit, additional resistance, wear particles (not suitable for dust-free explosive environment)
Advantages and disadvantages of AC servo motor
Advantages: Good speed control characteristics, smooth control can be achieved in the entire speed zone, almost no oscillation, more than 90% high efficiency, less heat, high speed control, high precision position control (depending on the accuracy of the encoder), rated operation area, can achieve constant torque, low inertia, low noise, no brush wear, maintenance-free (suitable for dust-free, explosive environment)
Disadvantages: The control is more complex, the driver parameters need to be adjusted on site to determine the PID parameters, and more connections are required.
Dc servo motors are divided into brushed and brushless motors
Brush motor low cost, simple structure, large starting torque, wide speed range, easy control, need to be maintained, but easy to maintain (change the carbon brush), electromagnetic interference, the use of the environment has requirements, usually used for cost sensitive ordinary industrial and civil occasions.
Brushless motor small size, light weight, large output, fast response, high speed, small inertia, stable torque and smooth rotation, complex control, intelligent, flexible electronic commutation mode, can be square wave or sine wave commutation, motor maintenance free, high efficiency and energy saving, small electromagnetic radiation, low temperature rise long life, suitable for various environments.
Ac servo motor is also a brushless motor, divided into synchronous and asynchronous motors, the current motion control is generally used synchronous motor, its power range is large, the power can be very large, large inertia, the highest speed is low, the speed decreases with the increase of power and uniform speed, suitable for low-speed smooth operation.
The rotor inside the servo motor is a permanent magnet, the driver controls the U/V/W three-phase electric field, the rotor rotates under the action of this magnetic field, and the encoder with the motor sends the feedback signal to the driver, the feedback value is compared with the target value, so as to adjust the rotor rotation Angle, the accuracy of the servo motor is determined by the accuracy of the encoder (line number).
The company focuses on DCS, PLC, robot, large servo four systems
The main products are various modules/cards, controllers, touch screens, servo drivers
Company advantage: Supply imported original products, professional production of spare parts
One year warranty, fast delivery time, complete supply !！！
