Description

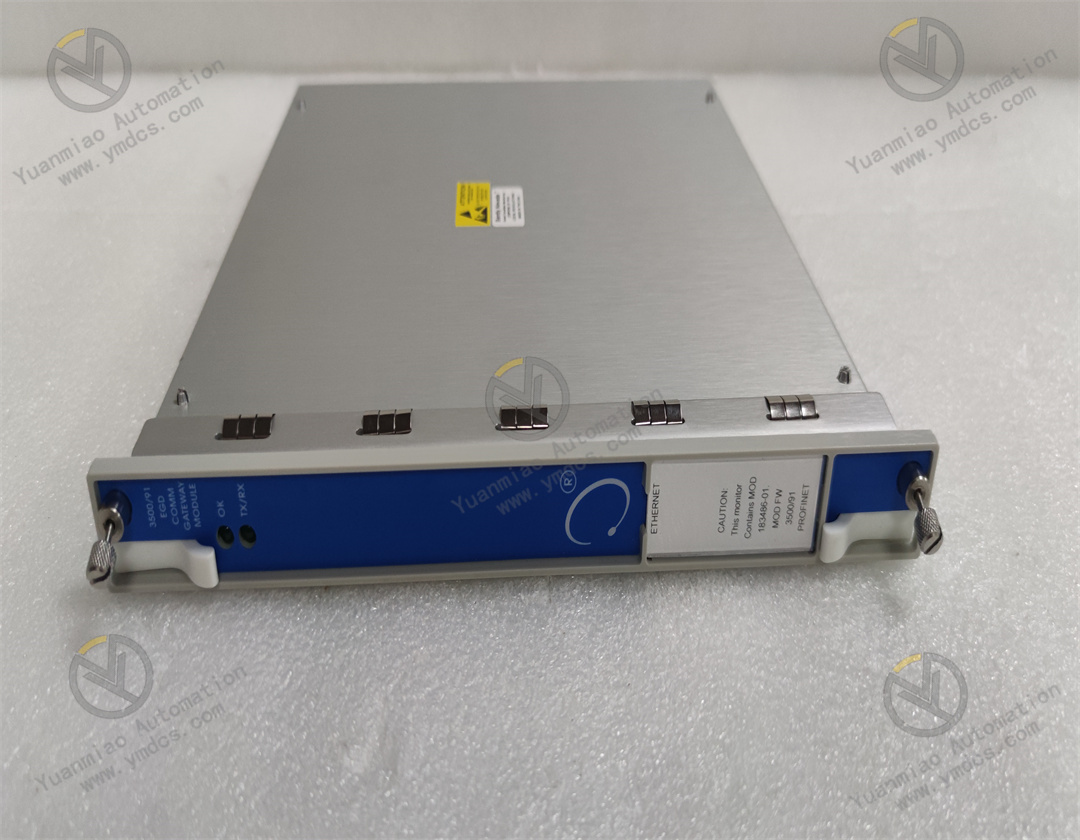

The 3500/91 EGD (Ethernet Global Data) CommunicationGateway modules provide comprehensive communicationcapabilities of 3500 rack-monitored values and status. ThisEthernet network path provides information with responsetimes suitable for controller applications. Using the 3500/91EGD Gateway provides for integration with EGD protocolcompatible controllers. Supported protocols include: • EGD (version 2.01) • Ethernet UDP/IP The Ethernet standard supported by the 3500/91 I/O modulesis IEEE802.3 for 10BASE-T and 100BASE-TX (twisted pair).
Specifications OperatingTemperature：-30°C to +65°C (-22°F to+150°F)Storage Temperature：-40°C to +85°C (-40°F to+185°F) Humidity：95%, noncondensing Main Module Dimensions(Height x Width xDepth)：241.3 mm x 24.4 mm x 241.8mm (9.50 in x 0.96 in x 9.52in) Weight：0.79 kg (1.75 lbs.) I/O Modules Dimensions(Height x Width xDepth)：241.3 mm x 24.4 mm x 99.1mm (9.50 in x 0.96 in x 3.90in)Weight：0.39 kg (0.85lbs.) Rack Space Requirements Main Module：1 full-height front slot I/O Modules：1 full-height rear slot
The 3500 Transient Data Interface (TDI) is the interface between the 3500 monitoring System and the Bentley System 1TM machine management software. TDI combines the capabilities of 3500/20 Framework Interface Modules (RIM) and communication processors such as TDXnet. The TDI runs in the RIM slot of the 3500 frame and is used in conjunction with the M Series monitor (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient waveform data and transmit the data to the main computer software via Ethernet. TDI has standard static data acquisition, but enables the disk with an optional channel to also capture transient or dynamic data. In addition to integrating the capabilities of the communication processor into the 3500 framework, TDI has several other improvements over previous communication processors. TDI provides common functionality to the entire framework, but is not part of the critical monitoring channel and does not affect the correct and regular operation of the overall monitoring system. Each framework requires one TDI or RIM. The TDI occupies only one slot in the frame and must be located in the first slot (next to the power module). For triple module redundancy (TMR) applications, the 3500 system requires TDI in the form of TMR. In addition to all the features of the standard TDI, the TMR TDI also has a "Monitor channel comparison function". The 3500TMR configuration performs the monitoring voting function by selecting the installation function of the monitor option. In this way, TMR TDI continuously compares the outputs of three redundant monitors. If TMR TDI detects that the output of one monitor is not equal to that of the other two monitors (within a percentage of the configuration), it issues an error indication to the monitor and adds an event to the system event list. The 3500 system is used to continuously monitor rotating and reciprocating machinery used in a variety of industries, especially in automatic shutdown machine protection applications that require extremely high reliability and availability. The types of machines that can use the Bentley 3500 system include, but are not limited to: Gas turbines, steam turbines, compressors, turbo expanders, electric motors and generators, exciters, gearboxes, pumps, fans, fans, reciprocating compressors, extruders and ball making machines. The available Bentley (bently3500 Series) monitor module channel types are as follows: Radial vibration, axial (lateral) displacement, differential expansion, speed, acceleration, shell expansion, valve position, standard tachometer, overspeed tachometer, shaft vibration, standard single slope differential expansion, double slope differential expansion, zero speed tachometer, etc.
The company focuses on DCS, PLC, robot, large servo four systems
The main products are various modules/cards, controllers, touch screens, servo drivers
Company advantage: Supply imported original products, professional production of spare parts
One year warranty, fast delivery time, complete supply !！！
