Description

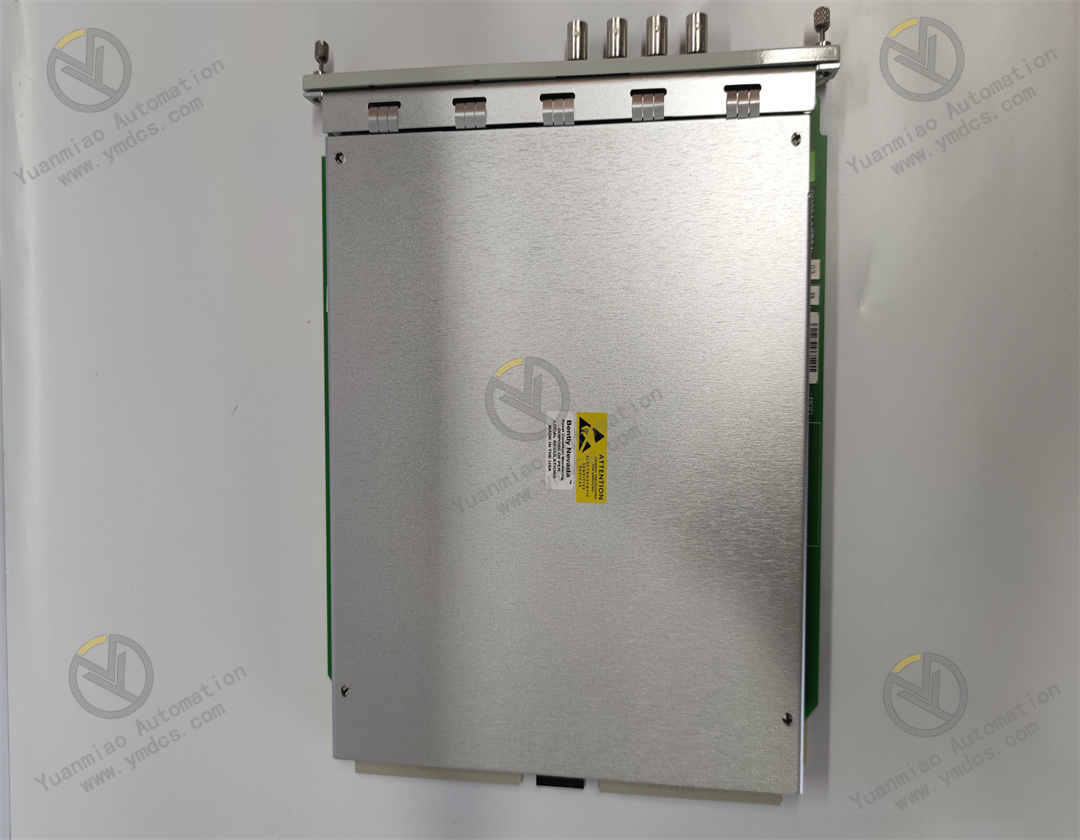

Features • Aeroderivative gas turbine applications • Monitors: Signal integration 1X vibration tracking Band-pass vibration • Alarm time delays • Alarms are adjustable from 0 to 100% of full-scale The Bently Nevada 3500/44M Aeroderivitive GT Vibration Monitor is a four channel instrument designed for aeroderivative gas turbine applications. The Aero GT I/O modules interface to velocity transducers through Bently Nevada* interface modules, part numbers 86517 and 86497. The monitor uses the Prox/Velom I/O to interface to our Velomitor* sensors and accelerometers. The 3500 Rack Configuration Software configures the 3500/44M Aeroderivitive GT Vibration Monitor for the following filter options: • Signal Integration • 1X vibration tracking • Band-pass vibration The 3500/44M Aeroderivitive GT Vibration Monitor accepts input from two separate Key phasor signals, allowing each channel pair to use a different tracking filter.
The 3500 Transient Data Interface (TDI) is the interface between the 3500 monitoring System and the Bentley System 1TM machine management software. TDI combines the capabilities of 3500/20 Framework Interface Modules (RIM) and communication processors such as TDXnet. The TDI runs in the RIM slot of the 3500 frame and is used in conjunction with the M Series monitor (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient waveform data and transmit the data to the main computer software via Ethernet. TDI has standard static data acquisition, but enables the disk with an optional channel to also capture transient or dynamic data. In addition to integrating the capabilities of the communication processor into the 3500 framework, TDI has several other improvements over previous communication processors. TDI provides common functionality to the entire framework, but is not part of the critical monitoring channel and does not affect the correct and regular operation of the overall monitoring system. Each framework requires one TDI or RIM. The TDI occupies only one slot in the frame and must be located in the first slot (next to the power module). For triple module redundancy (TMR) applications, the 3500 system requires TDI in the form of TMR. In addition to all the features of the standard TDI, the TMR TDI also has a "Monitor channel comparison function". The 3500TMR configuration performs the monitoring voting function by selecting the installation function of the monitor option. In this way, TMR TDI continuously compares the outputs of three redundant monitors. If TMR TDI detects that the output of one monitor is not equal to that of the other two monitors (within a percentage of the configuration), it issues an error indication to the monitor and adds an event to the system event list.
The 3500 system is used to continuously monitor rotating and reciprocating machinery used in a variety of industries, especially in automatic shutdown machine protection applications that require extremely high reliability and availability. The types of machines that can use the Bentley 3500 system include, but are not limited to:
Gas turbines, steam turbines, compressors, turbo expanders, electric motors and generators, exciters, gearboxes, pumps, fans, fans, reciprocating compressors, extruders and ball making machines.
The available Bentley (bently3500 Series) monitor module channel types are as follows:
Radial vibration, axial (lateral) displacement, differential expansion, speed, acceleration, shell expansion, valve position, standard tachometer, overspeed tachometer, shaft vibration, standard single slope differential expansion, double slope differential expansion, zero speed tachometer, etc.
