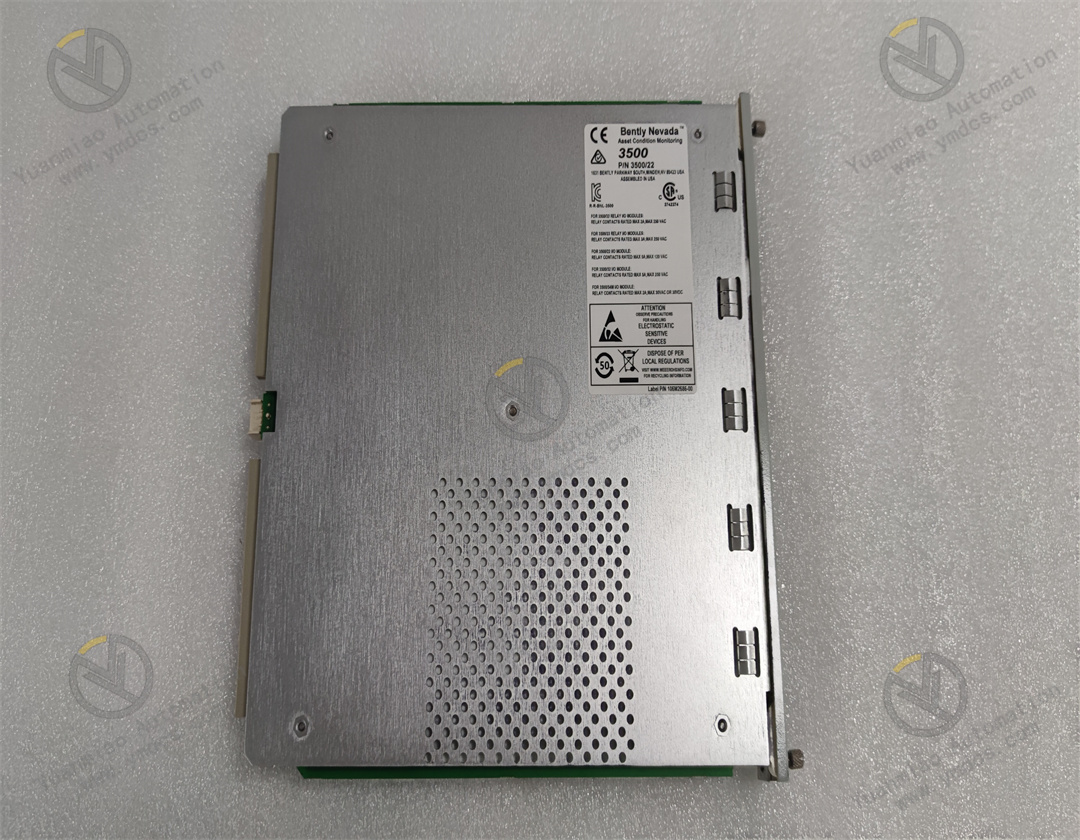

3500/22-01-01-00 - Data Interface Module

3500/22-01-01-00 - Data Interface Module

Brand: Bently Nevada

Product ID: 3500/22-01-01-00

Condition: New / used

Terms of payment: Paypal、T/T 、Western Union

Category:

Description

The 3500/22M Transient Data Interface (TDI) is the interfacebetween the 3500 monitoring system and compatiblesoftware (System 1 Condition Monitoring and Diagnosticsoftware and 3500 System Configuration software). The TDIcombines the function of a 3500/20 Rack Interface Module(RIM) with the data collection capability of a communicationprocessor such as TDXnet. The TDI resides in the slot adjacent to the power supplies of a3500 rack. It interfaces with M series monitors (3500/40M,3500/42M, etc.) to continuously collect steady state andtransient dynamic (waveform) data and pass this data throughan Ethernet link to the host software. Refer to theCompatibility section at the end of this document for moreinformation. Static data capture capability is standard with the TDI.However, using an optional Channel Enabling Disk will allowthe TDI to capture dynamic and high-resolution transient dataas well. The TDI incorporates the communication processorfunction within the 3500 rack. Although the TDI provides certain functions common to theentire rack, it is not part of the critical monitoring path and hasno effect on the proper, normal operation of the overallmonitor system for automatic machinery protection. Every3500 rack requires one TDI or RIM, which always occupies Slot1 (next to the power supplies).

  • Manufacturer : Bently Nevada

  • Product No. : 3500/22-01-01-00

  • Product type : Transient Data Interface

  • Made in U.S.A

  • 288055-01-Standard Transient Data Interface Module With USB Cable

  • 146031-01-Transient Data Interface I/O Module

  • Transient data interface type : 01 = Standard (use for standard monitoring applications)

  • I/O module type : 01 = 10Base-T/100Base-TX Ethernet

  • Agency approval option : 00 = None

  • Dimensions ( D x W x H ) : 24.18 cm x 2.44 cm x 24.13 cm

  • Weight : TDI Module = 0.91 Kg + I/O Modules = 0.20 Kg

  • Shipping Weight : 3 Kg

公司介绍 (1).png

The 3500 Transient Data Interface (TDI) is the interface between the 3500 monitoring System and the Bentley System 1TM machine management software. TDI combines the capabilities of 3500/20 Framework Interface Modules (RIM) and communication processors such as TDXnet. The TDI runs in the RIM slot of the 3500 frame and is used in conjunction with the M Series monitor (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient waveform data and transmit the data to the main computer software via Ethernet. TDI has standard static data acquisition, but enables the disk with an optional channel to also capture transient or dynamic data. In addition to integrating the capabilities of the communication processor into the 3500 framework, TDI has several other improvements over previous communication processors. TDI provides common functionality to the entire framework, but is not part of the critical monitoring channel and does not affect the correct and regular operation of the overall monitoring system. Each framework requires one TDI or RIM. The TDI occupies only one slot in the frame and must be located in the first slot (next to the power module). For triple module redundancy (TMR) applications, the 3500 system requires TDI in the form of TMR. In addition to all the features of the standard TDI, the TMR TDI also has a "Monitor channel comparison function". The 3500TMR configuration performs the monitoring voting function by selecting the installation function of the monitor option. In this way, TMR TDI continuously compares the outputs of three redundant monitors. If TMR TDI detects that the output of one monitor is not equal to that of the other two monitors (within a percentage of the configuration), it issues an error indication to the monitor and adds an event to the system event list.

3500-22M 138607-01 (3).jpg

The 3500 system is used to continuously monitor rotating and reciprocating machinery used in a variety of industries, especially in automatic shutdown machine protection applications that require extremely high reliability and availability. The types of machines that can use the Bentley 3500 system include, but are not limited to: Gas turbines, steam turbines, compressors, turbo expanders, electric motors and generators, exciters, gearboxes, pumps, fans, fans, reciprocating compressors, extruders and ball making machines. The available Bentley (bently3500 Series) monitor module channel types are as follows: Radial vibration, axial (lateral) displacement, differential expansion, speed, acceleration, shell expansion, valve position, standard tachometer, overspeed tachometer, shaft vibration, standard single slope differential expansion, double slope differential expansion, zero speed tachometer, etc.
