Description

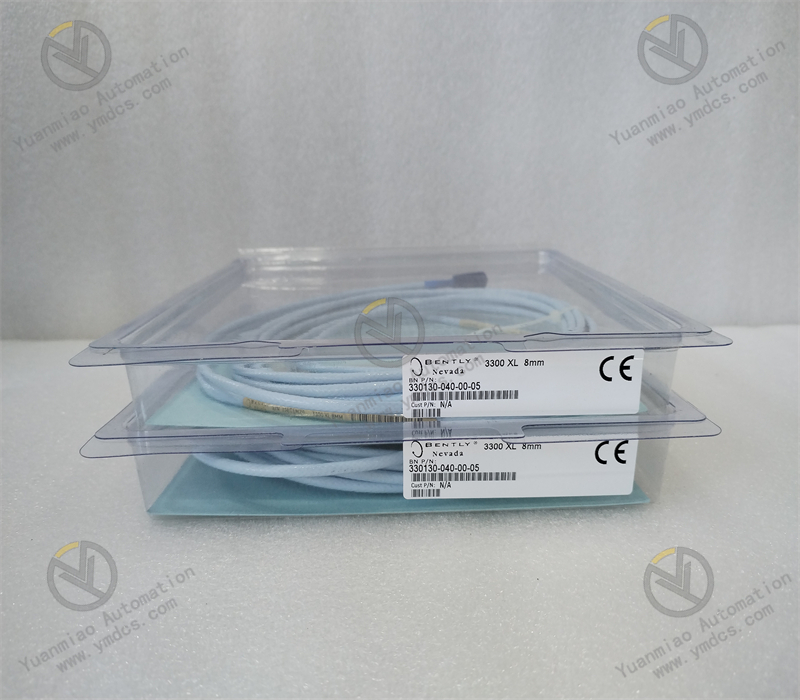

Part Number: 330130-040-00-05
Manufacturer: Bently Nevada
Product Type: 3300 XL 8 mm Extension Cable
Country of Origin: USA
Product Family: 3300 XL, 3300XL, 3300-XL
330130-040-00-05 is a 3300 XL Standard Extension Cable manufactured by Bently Nevada and used in proximity transducer system. Proximity Sensors come from the factory with a standard calibration to AISI 4140 steel. It is possible to calibrate on-demand to additional target materials. You might consult Bently Nevada Applications. Note the factors to take into account when using eddy current proximity probes for Overspeed protection applications when assessing this transducer system for tachometer or Overspeed measurements.
330130-040-00-05 Features
Physically and technologically, the non-XL 3300 5 and 8 mm components can be swapped out for the 3300 XL 8 mm components. Even if the packaging of the 3300 XL Proximitor Sensor differs from that of its predecessor, it is still designed to fit in the same 4-hole mounting pattern when used with the same mounting base's 4-hole mounting pattern and will adhere to the same mounting space requirements.
- System performance is restricted to the non-XL 3300 5 and 8 mm Transducer System standards when XL and non-XL 3300 series 5 and 8 mm system components are combined.
- The 3300-series 5 mm probe (see Specifications and Ordering Information p/n 141605-01) has a smaller physical footprint than an 8 mm probe, but it cannot be used with reduced side view clearances or tip-to-tip spacing.
- When the use of an 8 mm probe is prohibited by physical—not electrical—constraints, this method is used. Use the 3300 NSvTM Proximity Transducer System when narrow side view probes are needed.
- A thicker encapsulation of the probe coil in the molded PPS plastic probe tip is offered by 8 mm probes. As a result, the probe becomes more robust.
- The probe body's increased diameter also offers a stronger, more durable casing. For the best robustness against physical abuse, Bently Nevada advises using 8 mm probes wherever it is practical.
Applications
- Ideal for Fluid-Film Bearing Machines, Speed Measurements, and Compression Systems
- Applications over Extended Temperature Range
- Complete Unit and Cabling Interchangeability
- Components of the Non-3300 XL Series Transducer System Are Backwards Compatible
330130-040-00-05 Configuration
- Cable Length: 4.0 m (13.1 ft)
- Connector Protector and Cable Option: Standard Cable
- Agency Approval Option: Multiple Approvals
Characteristics
- Cable length option : 040 = 4.0 metres (13.1 feet)
- Weight : 0.034 g/m x 8.5 = 0.289Kg
The 3300 XL 8 mm Proximity Transducer System consists of: • One 3300 XL 8 mm probe, • One 3300 XL extension cable, and • One 3300 XL Proximitor* Sensor The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system’sprimary applications are vibration and position measurements on fluid-filmbearing machines, as well as Keyphasor* reference and speed measurements The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute’s (API) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward-compatible andinterchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducersystem components5. This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mountingspace
