Description
Configuration:
• Total Length Option: 1.0 Meter (3.3 Feet)
• Connector Option: Miniature ClickLoc Coaxial Connector
• Agency Approval Option: Multiple Approvals

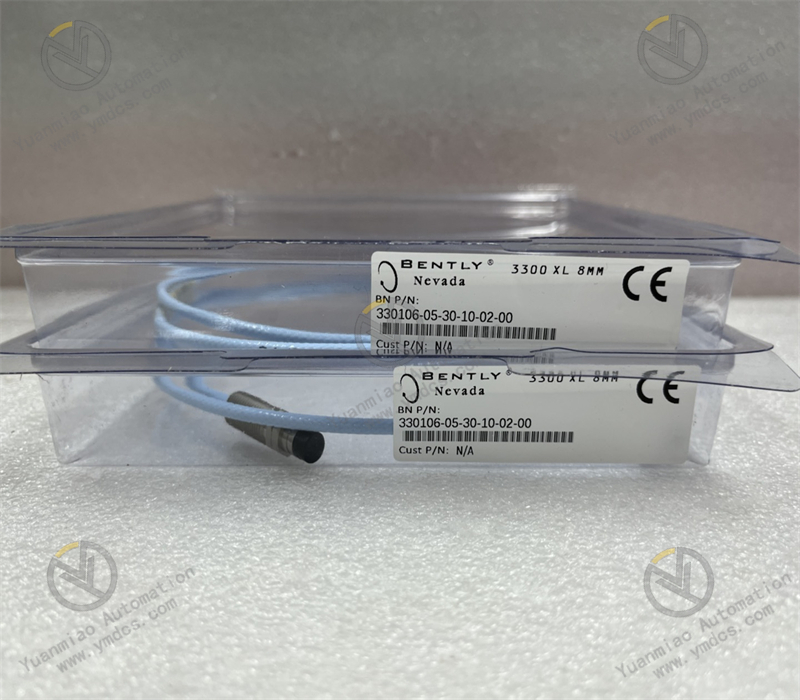

The GE / Bently Nevada 3300 XL 8mm Proximity Probes are interchangeable probes of varying length, armor, and connectors that operates with the Proximity Transducer System and Sensors of the 3300 XL series.
Features: • Armored and Unarmored Options • Multiple Connector Options • Complete Interchangeability of Units and Cabling
Description
Manufacturer : Bently Nevada
Product No. : 330106-05-30-05-02-05
Product type : 3300 XL 8 mm Reverse Mount Probes
Made in U.S.A
Total Length Option : 05 = 0.5 metre (1.6 feet)
Connector Option : 02 = Miniature ClickLocTM coaxial connector
Agency Approval Option : 05 = Multiple Approvals
Probe Tip Material : Polyphenylene sulfide (PPS).
Probe Case Material : AISI 303 or 304 stainless steel (SST).
Probe Pressure : 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton® O-ring. Probes are not pressure tested prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application.
Shipping Weight : 2 Kg
The 3300 XL 8 mm Proximity Transducer System consists of: • One 3300 XL 8 mm probe, • One 3300 XL extension cable, and • One 3300 XL Proximitor* Sensor The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system’sprimary applications are vibration and position measurements on fluid-filmbearing machines, as well as Keyphasor* reference and speed measurements The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute’s (API) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward-compatible andinterchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducersystem components5. This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mountingspace
