Description
The Bently Nevada 3300 XL NSv Proximity Probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3/8 -24, M8 X 1 and M10 X 1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3/8-24 or M10 X 1 threads. All components of the transducer system have gold plated brass ClickLoc connectors. The 3300 NSv probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton O-ring. The three parts of the system must have consistent electrical lengths. The electrical length of the proximity probe plus the electrical length of the extension cable must equal the electrical length of the Proximitor. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in).
Description

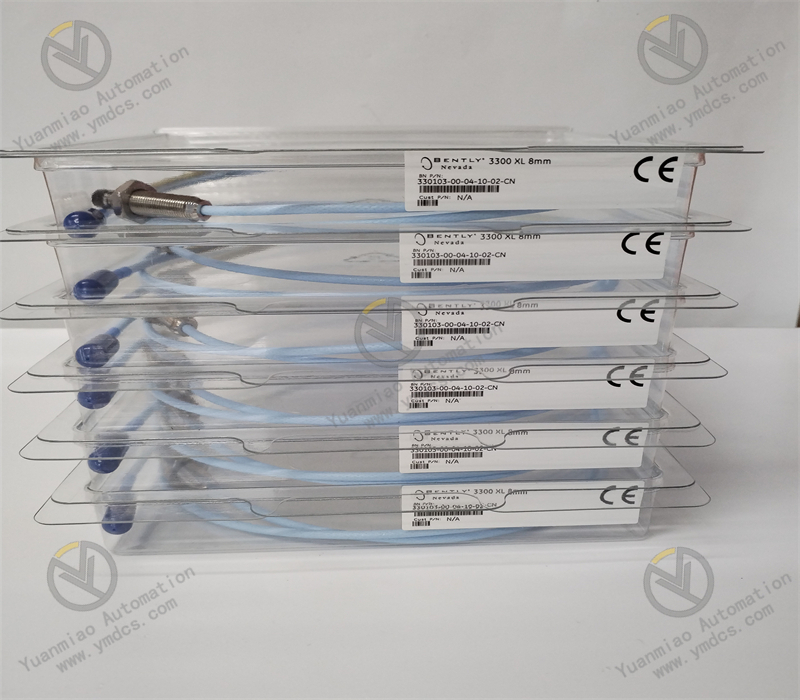

• Manufacturer : Bently Nevada • Product No. : 330103-00-04-10-02-CN • Product type : 3300 XL 8 mm Proximity Probes • Made in U.S.A • Unthreaded Length Option : 00 = 0.0 in • Overall Case Length Option : 04 = 40mm • Total Length Option : 10 = 1.0 metre (3.3 feet) • Connector and Cable-Type Option: 02 = Miniature coaxial ClickLocTM connector, standard cable • Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick • Probe Case Material: AISI 303 or 304 stainless steel (SST). • Shipping weight : 1.5 Kg
The 3300 XL 8 mm Proximity Transducer System consists of: • One 3300 XL 8 mm probe, • One 3300 XL extension cable, and • One 3300 XL Proximitor* Sensor The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system’sprimary applications are vibration and position measurements on fluid-filmbearing machines, as well as Keyphasor* reference and speed measurements The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute’s (API) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward-compatible andinterchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducersystem components5. This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mountingspace
Proximitor Sensor The 3300 XL Proximitor Sensor incorporates numerous improvements overprevious designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mountconfiguration, where it shares an identical 4-hole mounting “footprint” with olderProximitor Sensor designs. The mounting base for either option provideselectrical isolation and eliminates the need for separate isolator plates. The 3300XL Proximitor Sensor is highly immune to radio frequency interference, allowingyou to install it in fiberglass housings without adverse effects from nearby radiofrequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunitysatisfies European CE mark approvals without requiring special shielded conduitor metallic housings, resulting in lower installation costs and complexity The 3300 XL’s SpringLoc terminal strips require no special installation tools andfacilitate faster, more robust field wiring connections by eliminating screw-typeclamping mechanisms that can loosen. Proximity Probe and Extension Cable The 3300 XL probe and extension cable also reflectimprovements over previous designs. A patentedTipLoc* molding method provides a more robustbond between the probe tip and the probe body.The probe’s cable incorporates a patented CableLoc*design that provides 330 N (75 lbf) pull strength tomore securely attach the probe cable and probe tip.
Connectors The 3300 XL probe, extension cable, and Proximitorsensor have corrosion-resistant, gold-platedClickLoc* connectors. These connectors require onlyfinger-tight torque (the connectors will "click" whentight), and the specially-engineered lockingmechanism prevents the connectors from loosening. These connectors require no special tools forinstallation or removal. Extended Temperature Range Applications An extended temperature range (ETR) probe and ETRextension cable are available for applications inwhich either the probe lead or extension cable mayexceed the standard 177 C (350 F) temperaturespecification. The ETR probe has an extendedtemperature rating for up to 218 C (425 F). The ETRextension cable rating is up to 260 C (500 F). Boththe ETR probe and cable are compatible withstandard temperature probes and cables, forexample, you can utilize an ETR probe with the330130 extension cable. The ETR system uses thestandard 3300 XL Proximitor Sensor. Note that whenyou use any ETR component as part of your system,the ETR component limits the system accuracy tothe accuracy of the ETR system.
