Description
General Information

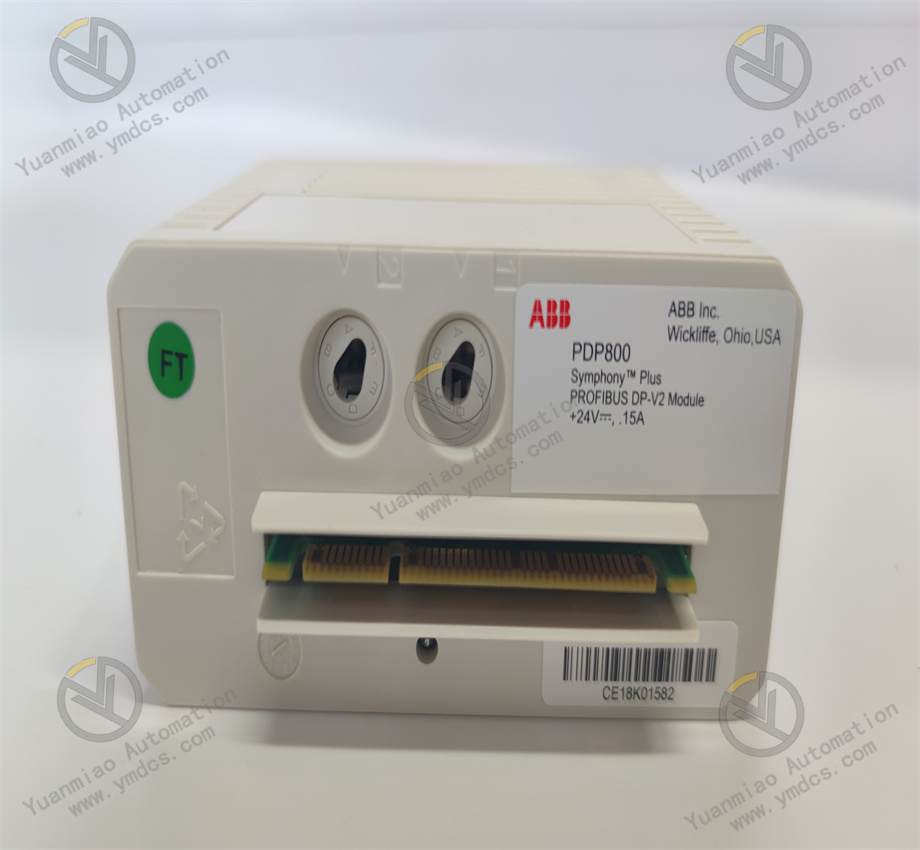

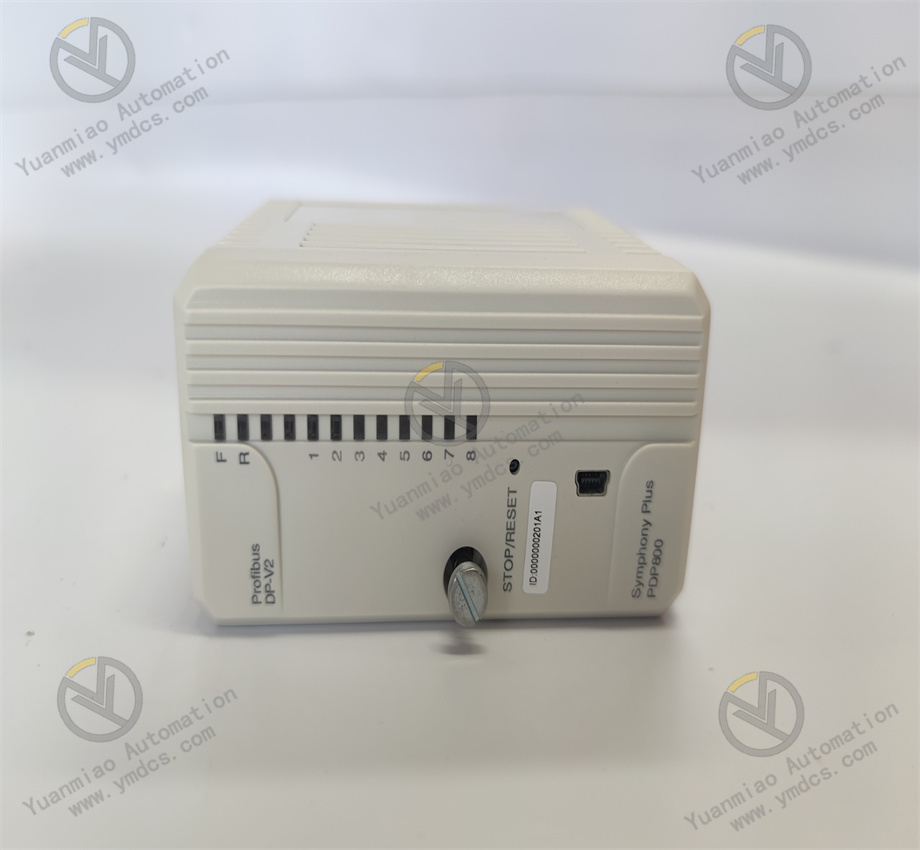

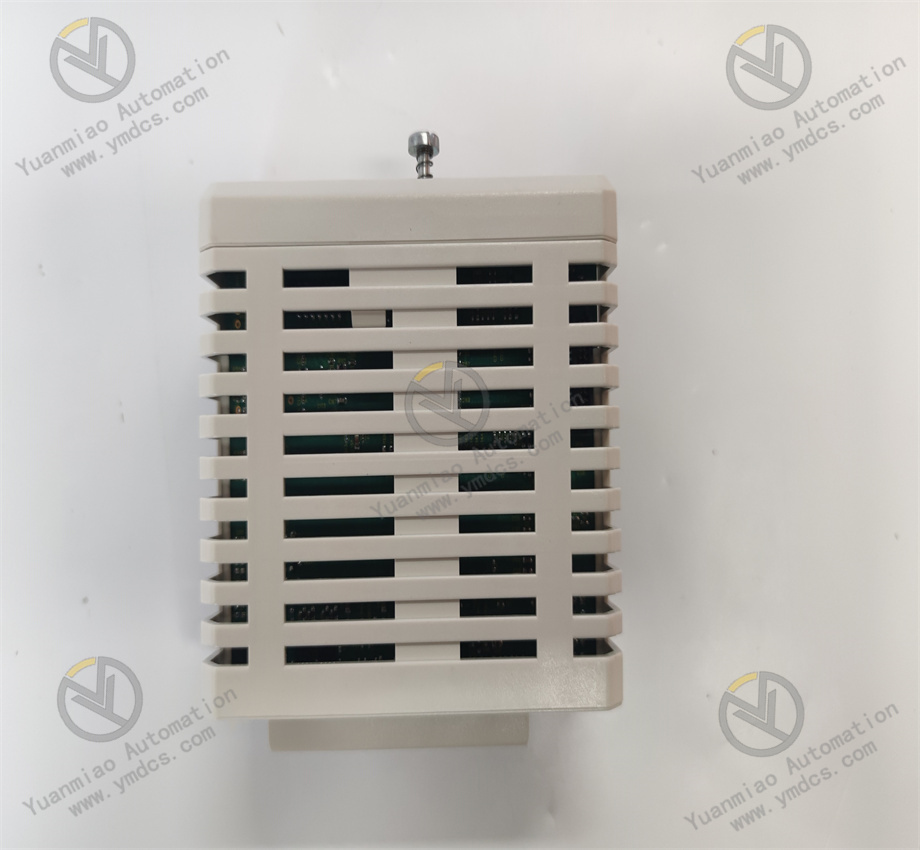

- Product ID:PDP800
- ABB Type Designation:PDP800
- Catalog Description:Profibus DP V0/V1/V2 Master Module
- Long Description:Supports up to 125 Slaves, and rates up to 12 MBps
Dimensions
- Product Net Depth / Length:243.84 mm
- Product Net Height:73.66 mm
- Product Net Width:170.18 mm
- Product Net Weight:1.5 kg
Symphony Plus controllers seamlessly integrate field devicesthrough its PDP800 PROFIBUS interface module. This allowsaccess to a wide range of intelligent field devices includingtransmitters, actuators, motor control centers (MCC),flame scanners, intelligent electronic devices, etc, from ABBand other third-party vendors. PROFIBUS I/O and relatedcontrol strategies are configured using ABB’s extensive setof field-proven standard function code algorithms andS+ Engineering’s graphical design tools. Furthermore, thisdata is provided to other S+ system nodes (ie, control,operation, engineering and information) over the redundantPlant Network (PN800). PDP800 PROFIBUS interface features include: − Supports PROFIBUS DP V0, V1, V2 − Supports PROFIBUS PA devices through DP/PA linkingdevice − Supports 1 msec time stamping of devices by PROFIBUSDP V2 − Supports electric and fiber optic media for PROFIBUSDP link − Up to 12 Mbps rate of PROFIBUS DP link − Up to 15 km by fiber optic PROFIBUS DP link
The PDP800 module enables the connection of SymphonyPlus controllers to S800 I/O via PROFIBUS DP V2. S800I/O provides options for all signal types, ranging from basicanalog and digital inputs and outputs to pulse counters andintrinsically safe applications. S800 I/O sequence of eventsfunctionality is supported by PROFIBUS DP V2 with 1 msecaccuracy event time stamping occurring at the source. Additionally, the PDP800 supports Symphony Pluscontrollers’ connectivity to S+ Turbine’s specialty modules.Specifically, via PROFIBUS DP V2, the HPC800 cansupport powerful turbine control solutions for turbineprotection (TP800), valve positioning (VP800), generatorauto synchronization (AS800) and condition monitoring(MCM800).
