Description

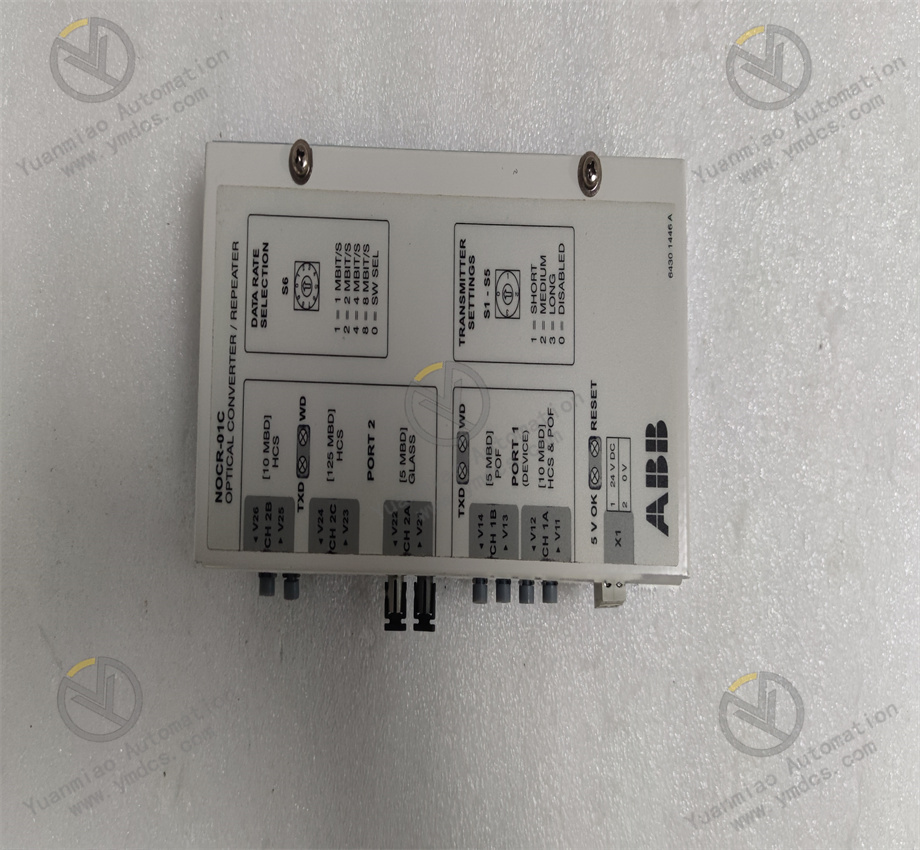

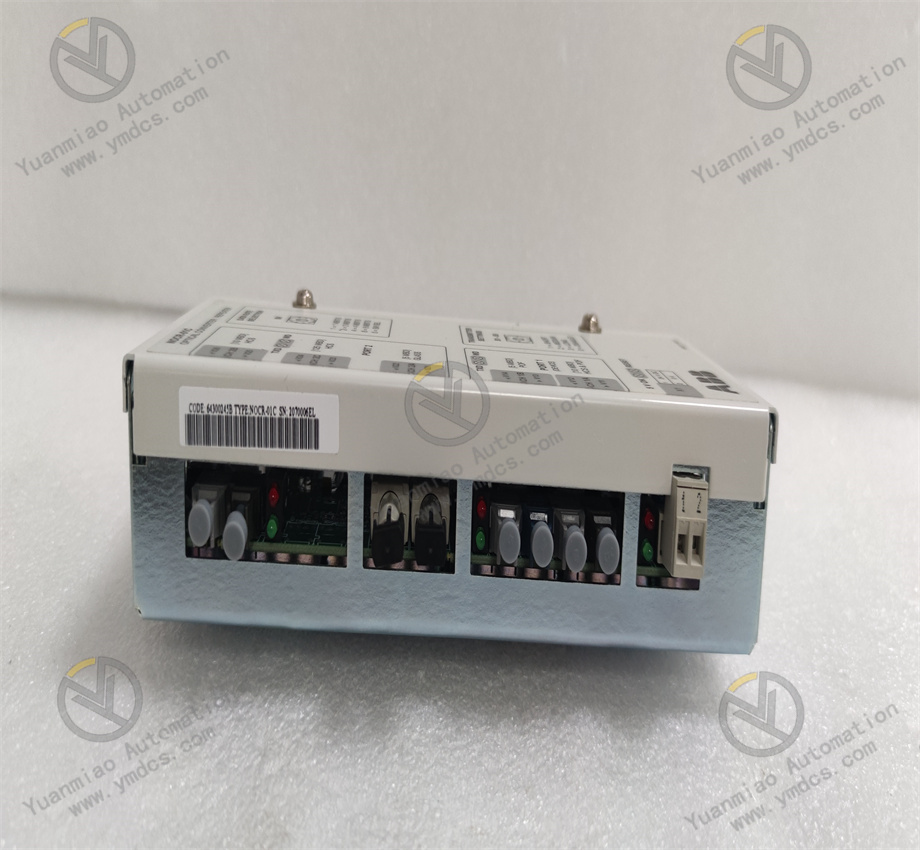

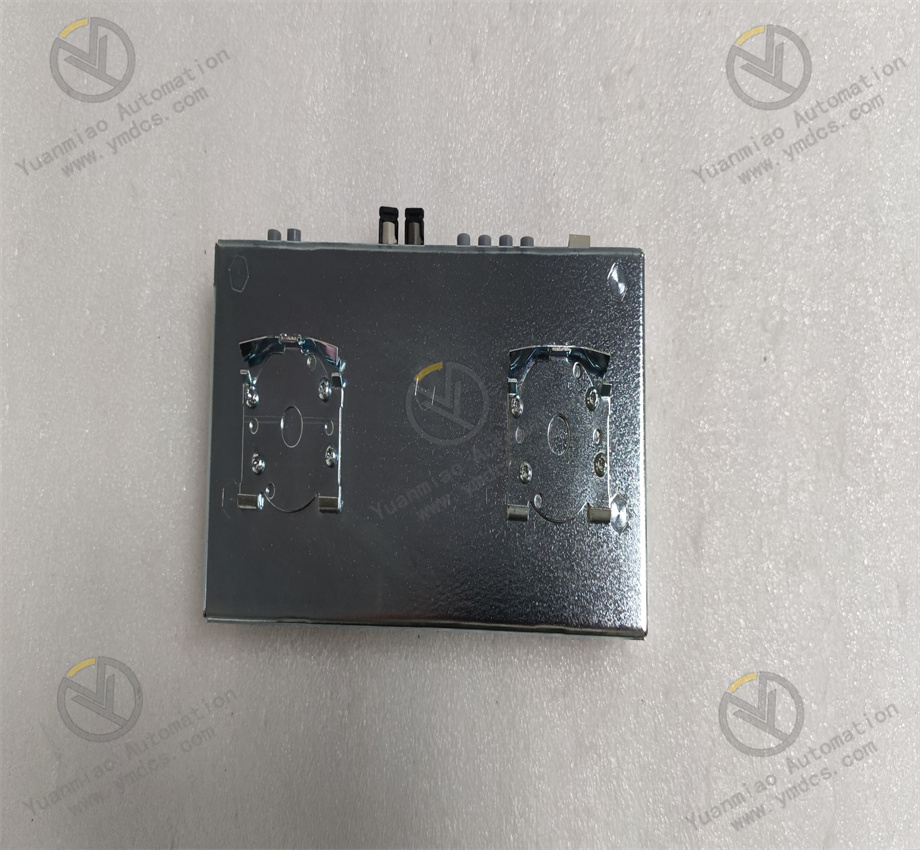

NOCR-01C 3AFE64300245 is an optical converter for fiber optic connections to NOCR-01, which can convert electrical signals into optical signals for high-speed, long-distance data transmission. Such optical converters are commonly used in fiber optic communication networks to transmit signals over greater distances while maintaining the quality and integrity of the signal. Specifically, the NOCR-01C 3AFE64300245 optical converter works by converting the input electrical signal into an optical signal, which is then transmitted to the destination via optical fibers. At the receiving end, another optical converter converts the optical signal back to the electrical signal for further processing or use. This optical conversion technology has the advantages of high speed, high bandwidth and low latency, and is widely used in telecommunications, data centers, cloud computing and other fields. When using the NOCR-01C 3AFE64300245 optical converter, the following points should be noted: Compatibility: Verify that the optical converter is compatible with your optical network equipment to ensure reliable data transmission. Installation and configuration: Properly install and configure optical converters according to your network requirements, including fiber connection, power supply, and more. Maintenance and monitoring: Regular maintenance and monitoring of the optical converter to ensure its normal operation and extend the service life. Safety measures: Take appropriate safety measures, such as lightning protection, fire prevention, etc., to ensure the safe operation of the optical converter.
ABB power module features and applications
ABB power module uses advanced integrated circuit technology to integrate power devices and logic control circuits in a highly integrated, fully sealed integrated block with power function. The power module has the advantages of convenient use and reliable performance, which represents the development direction of power supply technology. Because the switching power supply has the advantages of high efficiency and small size, it is suitable for integration. Because of its low efficiency, generally about 50%, it is difficult to achieve high-power (more than 100W) integration. The power module introduced by Jimi technology refers to the switching power module, focusing on the DC/DC converter. Today's switching power modules can reach hundreds of watts or even kilowatts.
Power module products mainly include DC/DC converter module, power factor correction module, AC input module, etc. Their main characteristics are:
◆ ABB power module working frequency is high, generally 300KHz~1MHz.
◆ ABB power module size is small, ultra-thin, thickness is generally less than 20mm, light weight, generally less than 200g.
◆ ABB power module power density is large, generally 5~10W/ cubic centimeter.
◆ ABB power module is easy to use, less external components, can be expanded in parallel, and can also realize logic control and remote control.
◆ ABB power module is suitable for a wide range of power grid voltage changes. When the general AC voltage fluctuates between 150V and 280V, the output has a voltage regulator function.
◆ ABB power module temperature adaptation range is wide, can be from -55 degrees Celsius ~+100 degrees Celsius, the general high temperature substrate temperature is +85 degrees Celsius, low temperature 0 degrees, -20 degrees, -40 degrees, -55 degrees and other levels.
◆ ABB power module fully sealed package, with three anti-function, waterproof, dustproof, anti-impact.
◆ ABB power modules generally use zero voltage switch or zero current switch technology, good electromagnetic compatibility.
◆ ABB power module structure is highly standardized and easy to install.
Power unit board
1. Unit power supply board
Board function: Take power from the DC bus of the power unit and output 24V DC power for the unit control board.
Board interface:
Input interface: power unit positive and negative DC bus
Output interface: 24VDC output, connected to the unit control board
2. Unit control panel
Plate function:
1) Receive the signal of the main control system and provide the control signal to the drive board;
2) Perform real-time fault monitoring and report fault information to the main control system;
3)3) Supply power to the unit drive board.
Board interface:
1) Optical fiber interface for communication with the main control system;
2)24V power input interface: connected with the power board;
3) Driver signal (Top1, Top2, Lock interface: connected with the driver board;
4)15V power output interface: connected with the driver board to supply power to the driver board;
5) Overvoltage, undervoltage detection interface: connected with the positive and negative bus of the unit;
6) Lack of phase detection interface: fuse auxiliary switch;
7) overheating detection interface: connected to the temperature detection switch;
8) Power on thyristor drive signal interface: Connect the thyristor gate;
9) By-pass thyristor driver signal interface: connected to the by-pass thyristor gate;
10) Bypass OK signal detection interface: connected to bypass OK board.
3. Unit drive board
Function of the board: receive the control signal of the unit control board, provide driving signal for the four-way IGBT on the unit, and monitor the drive fault and report it to the unit control board.
Board interface:
1)15V power input interface: connected to the unit control board;
2) Input signal (Top1, Top2, /Lock) : connected to the unit control board;
3) Output signal (ERRout) : connected to the unit control board;
4) Output signal (TOP1, BOT1, TOP2, BOT2 IGBT driver signal) : connected to the C, G, E pole of TOP1, BOT1, TOP2, BOT2 IGBT respectively.
4. Bypass OK board
Board function: After the unit control board sends out the side communication number, the by-pass loop is detected to detect the signal input to the unit control board.
Board interface:
Input interface: bypass thyristor A, K pole;
Output interface: connected to the unit control board
