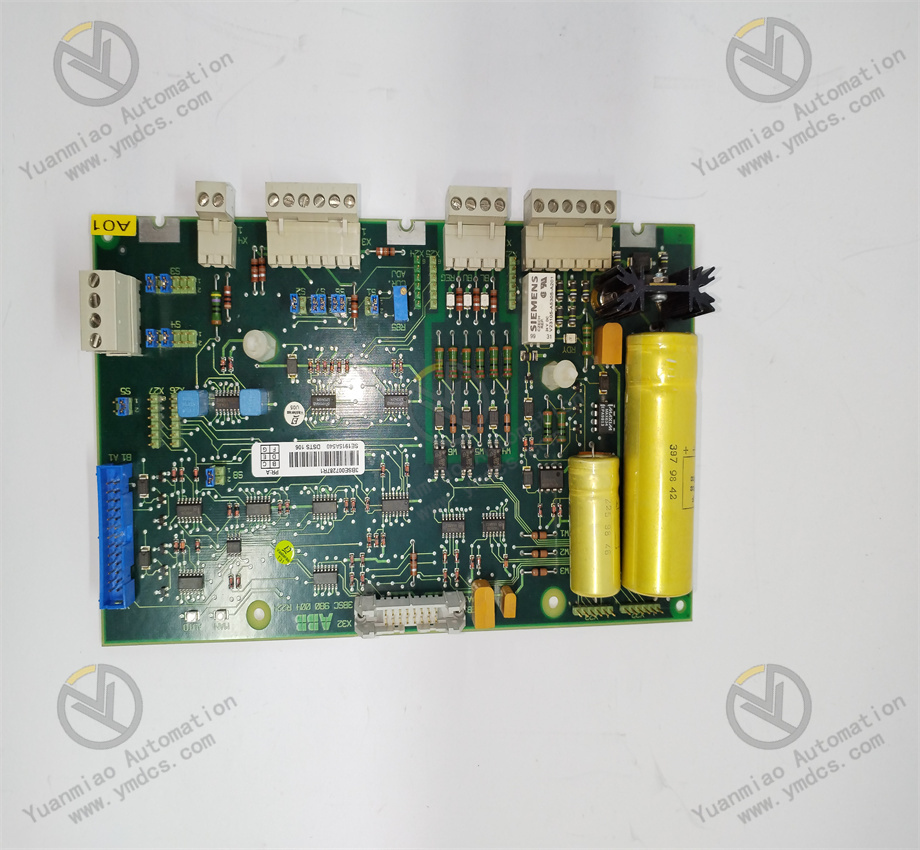

DSTS106 3BSE007287R1 - Trigger Pulse Generator Card

DSTS106 3BSE007287R1 - Trigger Pulse Generator Card

Brand: ABB

Product ID: DSTS106 3BSE007287R1

Condition: New / used

Terms of payment: Paypal、T/T 、Western Union

Category:

Description

General Information

    • Product ID:3BSE007287R1
    • ABB Type Designation:DSTS 106
    • Catalog Description:DSTS 106 Trigger Pulse Generator Card
    • Long Description:DSTS 106 Trigger pulse generator card with
      back-up regulator.
      Rated voltage 24 V DC

      Note! This part is exempted from the scope of 2011/65/EU (RoHS)
      as provided in Article 2(4)(c), (e), (f) and (j) therein
      (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY
      - ABB Advant Master Process Control System)

Dimensions

    • Product Net Depth / Length:252 mm
    • Product Net Height:36 mm
    • Product Net Width:153 mm
    • Product Net Weight:0.3 kg
