Description
Manufacturer : ABB
Product No. : V18345-1010221001

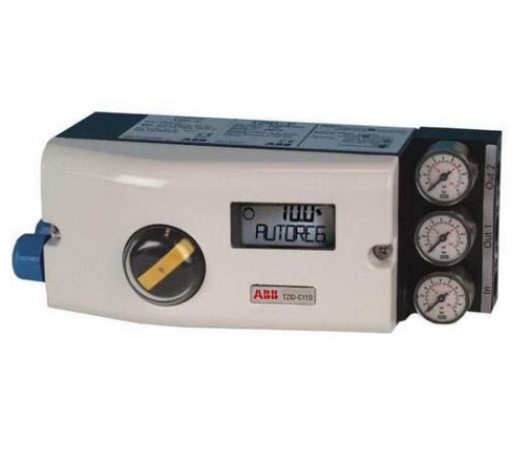

Product Type : Valve Positioner
TZIDC-120 Intelligent Positioner : V18345 = Intelligent, configurable with indicator and operator panel
Optional mechanical kit for digital position feedback : 1 = Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting
0 = Always 0
Input / communication port : 1 = Input 4...20 mA, two-wire with connector plug for LKS adapter
Explosion protection : 0 = without
Output / safe position (in case of an electrical power failure) : 2 = Single acting, fail freeze
Connections : 2 = Cable: Thread 1/2-14 NPT; Air pipe: Thread 1/4-18 NPT
Option modules for analog or digital position feedback : 1 = Plug-in module analog position feedback (sign. range 4 … 20 mA)
Optional mechanical kit for digital position feedback : 0 = without
0 = Always 0
Design (varnish / coding) : 1 = Standard
Shipping Weight : 5 Kg
The TZIDC is an electronically configurable positioner withcommunication capabilities designed for mounting to pneumaticlinear or rotary actuators. It features a small and compact design, amodular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters andadaptation to the final control element yield considerable time savingsand an optimal control behavior. An I/P module with subsequent pneumatic amplifier is used to controlthe pneumatic actuator. The well-proven I/P module proportionallyconverts the permanent electrical positioning signal from the CPUinto a pneumatic signal used to adjust a 3/3-way valve. The air flow for pressurizing or depressurizing the actuator iscontinuously adjusted. As a result, excellent control is achieved. When reaching the set point, the 3/3-way valve is closed in centerposition to minimize the air consumption. Four different pneumatics versions are available: for single-acting ordouble-acting actuators, each with “fail-safe” or “fail-freeze” function. Low operating cost Compact design Well-proven technology Robust and environmentally ruggedized Wide operating temperature range -40 ... 85 °C (-40 ... 185 °F) Easy to commission, “single pushbutton”operating philosophy Mechanical position indicator ATEX, FM, CSA, GOST and IECEx approvals For SIL2 safety loops
