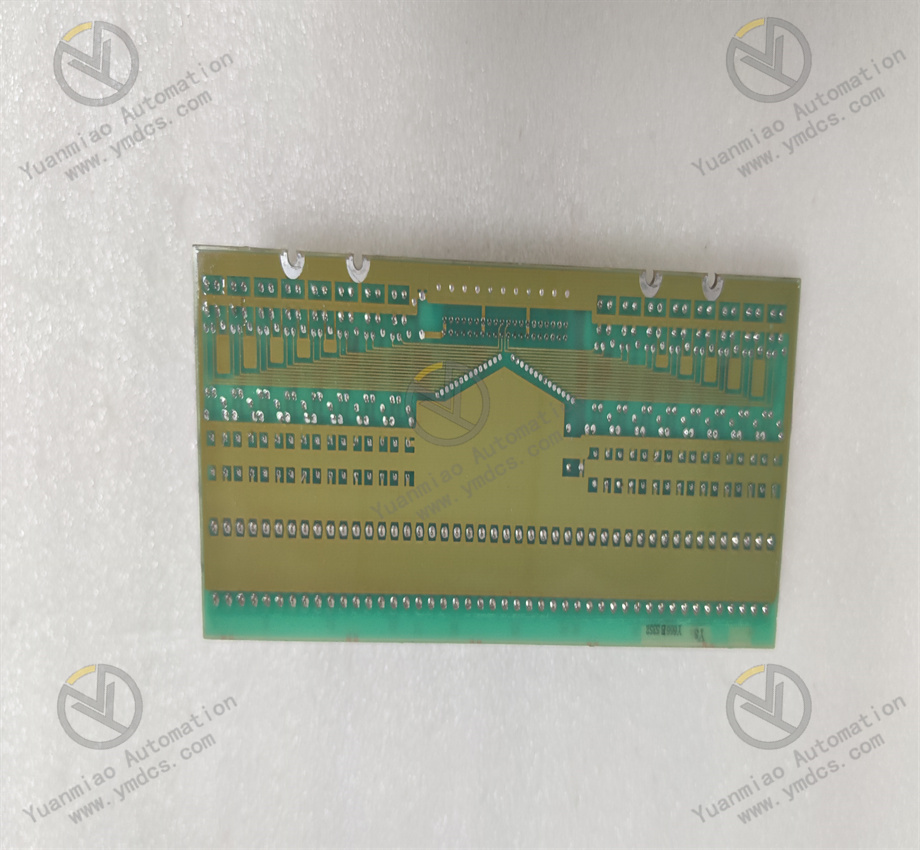

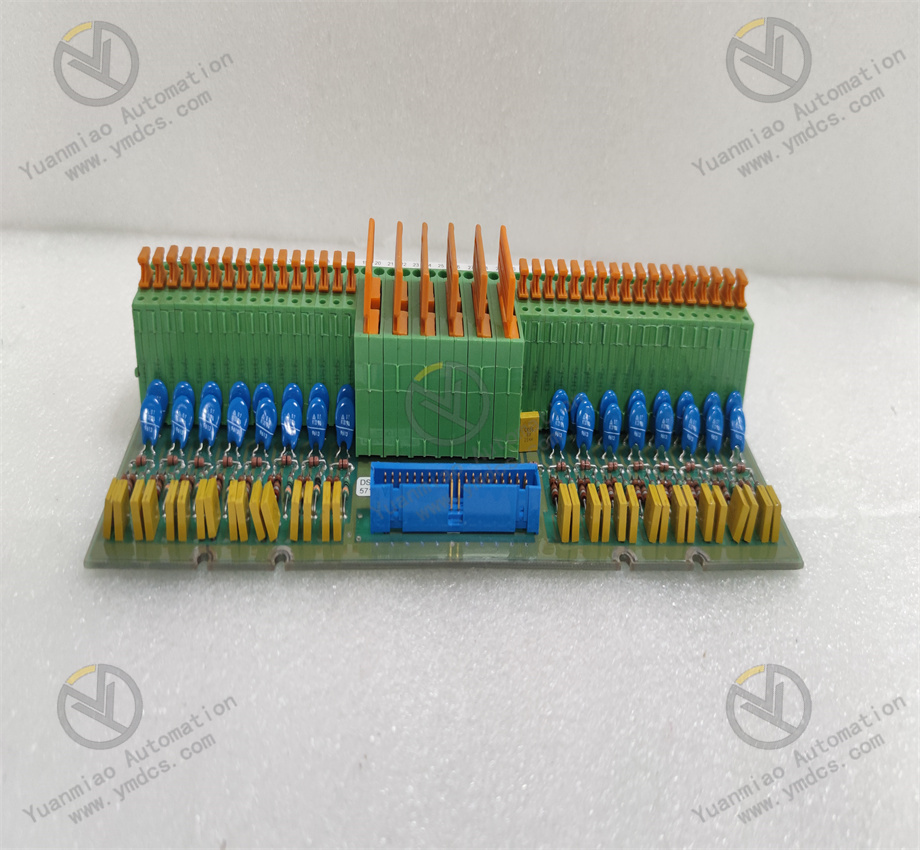

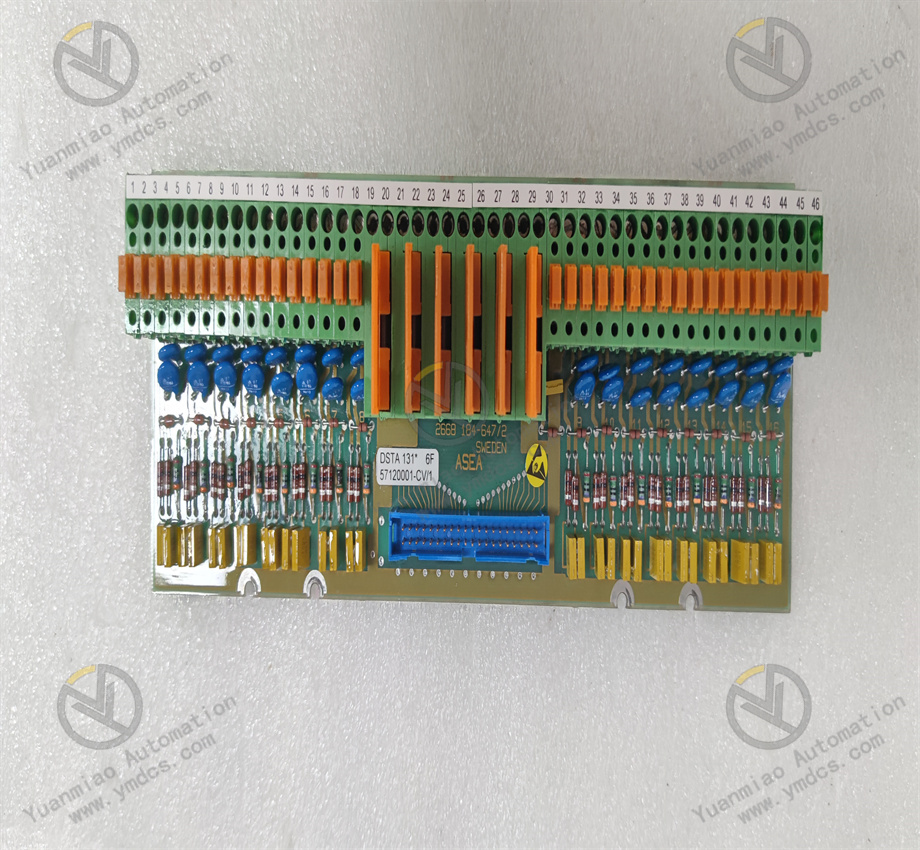

DSTA131 Y57120001-CV - Connection Unit for AI Board

DSTA131 Y57120001-CV - Connection Unit for AI Board

Brand: ABB

Product ID: DSTA131 Y57120001-CV

Condition: New / used

Terms of payment: Paypal、T/T 、Western Union

Category:

Description

General Information

    • Product ID:57120001-CV
    • ABB Type Designation:DSTA 131
    • Catalog Description:DSTA 131 Connection Unit for AI board
    • Long Description:DSTA 131 Connection Unit for Analog Board 16 Ch.
      0.1% shunt, differential
      See Spare Fuse 1 A / 3BSC770001R14

Dimensions

    • Product Net Depth / Length:324 mm
    • Product Net Height:54 mm
    • Product Net Width:153 mm
    • Product Net Weight:0.4 kg

Environmental

    • RoHS Status:Following EU Directive 2011/65/EU
    • WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)

公司介绍 (1).png


1. Analog signal acquisition: analog digital acquisition board converts analog signals to digital signals through the built-in analog-to-digital converter (ADC). It can receive analog signals from sensors, instruments and external signal sources, such as voltage, current, temperature, pressure, etc. The acquisition board has high speed and high precision sampling performance, and can continuously measure and collect analog signals in a certain range. 2. Digital signal output: After the analog signal conversion is completed, the analog digital acquisition board will transmit the converted digital signal to the computer or control system for further processing, analysis and storage. The digital signal output can be in the form of pulse code modulation (PCM), or other common digital signal formats. 3. Multi-channel and multi-function: analog digital acquisition board usually has a multi-channel input function, which can collect multiple analog signal sources at the same time. In addition, they usually have other functions, such as voltage amplification, filtering, sampling rate selection, etc., to meet the needs of different application scenarios. 4. Communication interface: Analog digital acquisition board usually provides a variety of communication interfaces, including PCI, PCIe, USB and Ethernet, in order to connect with the computer or control system. These interfaces provide convenient data transmission and control, making the integration of the acquisition board with other devices more flexible and convenient. 5. Application: analog digital acquisition board is widely used in various fields, such as scientific research, industrial automation, data acquisition, instrumentation and so on. They can be used for various types of sensor measurements and instrument monitoring, such as temperature measurement, pressure monitoring, vibration analysis, etc. When selecting the appropriate analog and digital acquisition board, the following factors need to be considered: sampling rate, resolution, number of input channels, power supply mode, communication interface and software support. These factors will vary depending on the specific application needs.

DSTA131 Y57120001-CV (2).jpg

Cp-s. 1 series single-phase switching power supply Single-phase 24 V DC switching power supply, from 3 A to 40 A The main advantage ◆ Complete product line of 24 V DC output: from 72 W to 960 W, can be used in various industries, especially OEM field ◆ Wide range AC/DC input, very complete certification, including DNV, and CP-S.1 EMC grade can be installed in the ship's cab, good global versatility The low efficiency is 89%, the high efficiency is 94%, the high efficiency is low power consumption, for customers to save operating costs, and meet the environmental requirements ◆ Provide 150% power margin, duration of 5 s, can start the load with impulse current reliably ◆ Narrow width, can save precious installation space ◆ When the OUTPUT voltage is less than 90% of the set voltage, the relay alarm contact 'OUTPUT OK' will be disconnected, the LED will flash, to provide customers with clear information The main features ◆ Rated output voltage: 24 V DC, range: 24... 28 V DC ◆ Rated output current: 3 A, 5 A, 10 A, 20 A and 40 A Efficiency from 89% to 94% ◆ Output power margin 150%IN, sustainable 5 s ◆ Wide range of AC and DC input, authenticated by a third party The width of the module is very small Cp-1 series switching power supply The main advantage Switching of power margin and peak current facilitates system availability Up to 94% high efficiency reduces energy consumption, saves money and space, and reduces heat ◆ Reliable operation in harsh environment under harsh temperature conditions ◆ Coated PCBA version is suitable for dangerous places ◆ Additional redundancy unit CP-C. 1-A-RU achieves true redundancy The main features Rated transmission voltage 24 V DC ◆ Rated output current 5 A, 10 A, 20 A ◆ Rated output power 120 W, 240 W, 480 W ◆ Operation efficiency up to 94%, save the cost during operation ◆ Working environment temperature range -25... + 70 ◆ Coated PCBA version can extend the ambient temperature range to -40 during operation... + 70 Natural convection cooling - no forced fan cooling

公司介绍 (5).png

The company focuses on DCS, PLC, robot, large servo four systems

The main products are various modules/cards, controllers, touch screens, servo drivers Company advantage: Supply imported original products, professional production of spare parts One year warranty, fast delivery time, complete supply !!! ① 24 hours email response (12 hours); ② For shipment outside Asia, please contact the seller.
