Description
Harmony rack I/O incorporates a variety of input and output devices to interface process signalsto the SymphonyTM Enterprise Management and Control System. An IMHSS03 Hydraulic Servomodule and an IMFCS01 Frequency Counter module interface field inputs and outputs used inturbine control. The modules each consist of a single printed circuit board that occupies one slot ina module mounting unit (MMU). In general, jumpers and switches on the printed circuit boardand jumpers and dipshunts on the termination unit configure the module and its I/O channels. Acable connects the I/O module to its termination unit. The physical connection points for fieldwiring are on the termination unit.

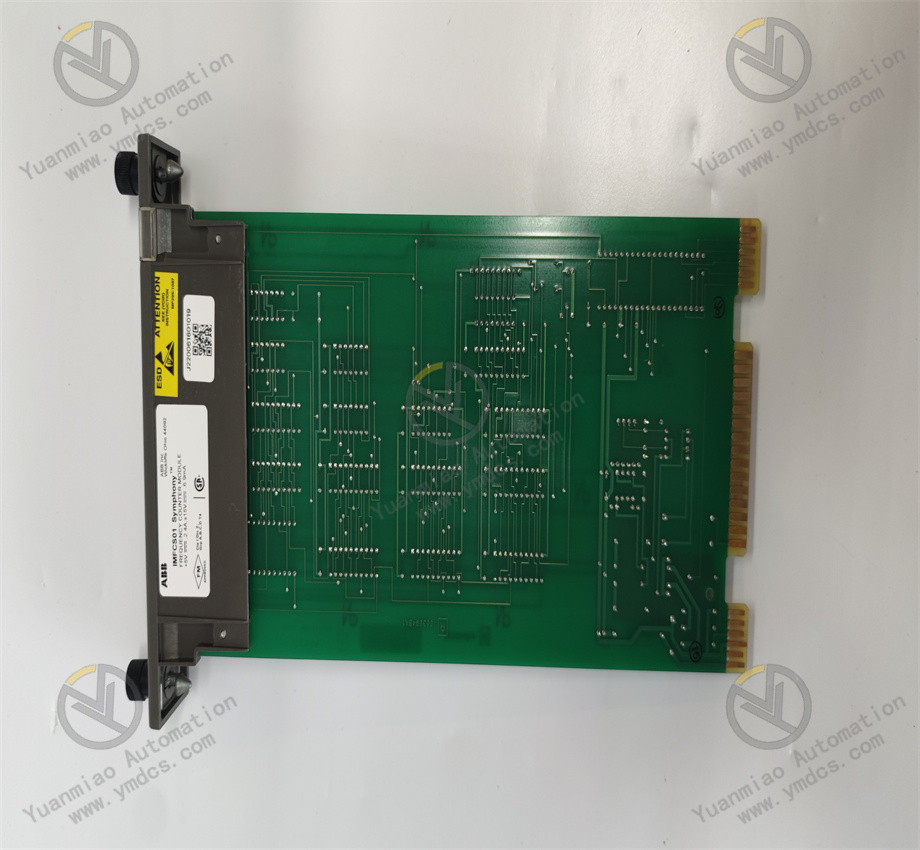

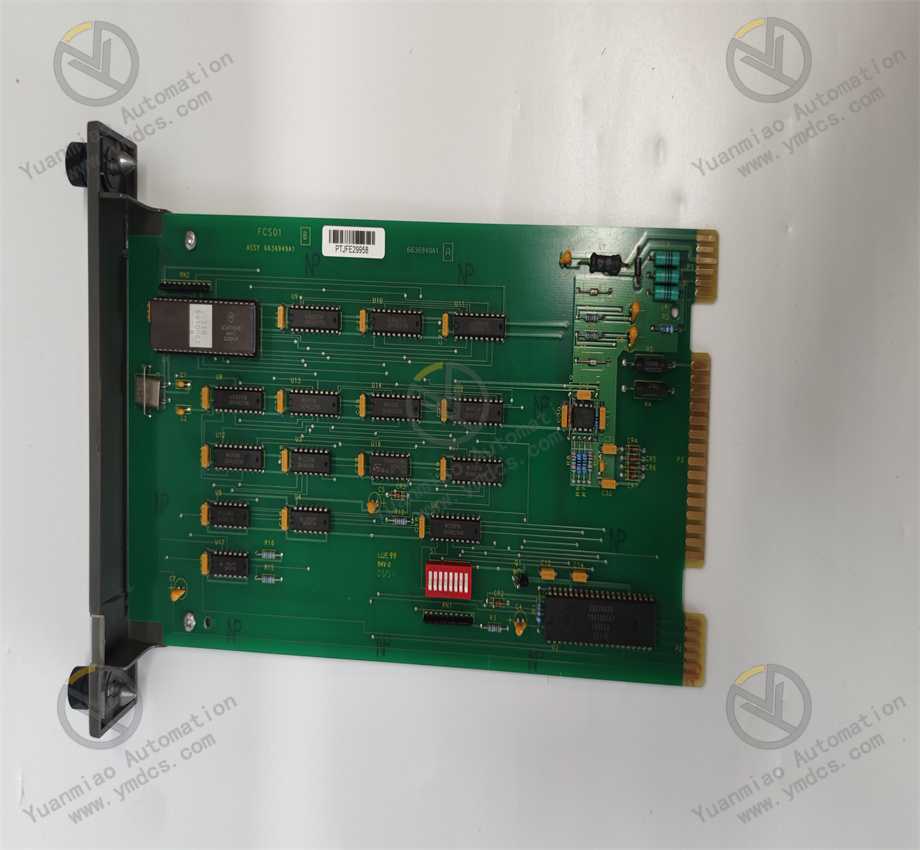

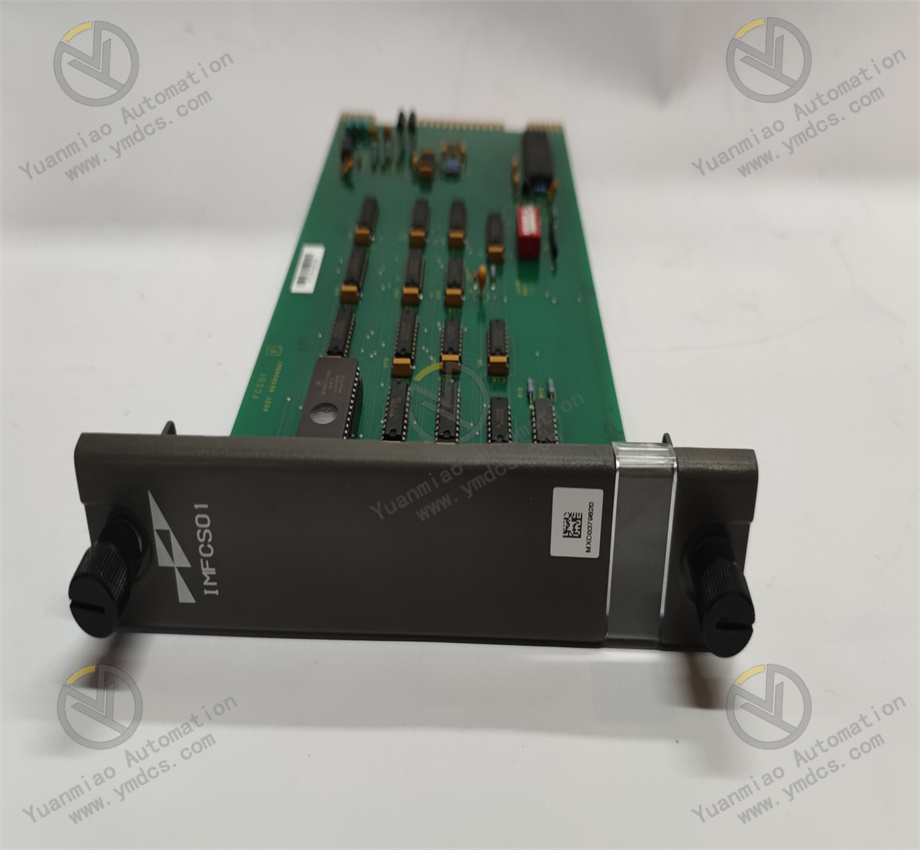

The IMFCS01 Frequency Counter module provides a single channel frequency input to a Harmony controller. The controller utilizes function code 145 (frequency counter) to configure andaccess the module input channel. The IMFCS01 module conditions, converts, and processes pulse inputs from a magnetic pickupattached to the front standard of a steam or gas turbine. The converted digital data represents a count of the input pulses and the period of the count. The controller uses the data to calculatefrequency and consequently turbine speed. The calculated speed can then be used to drive servovalve outputs for turbine speed control. The IMFCS01 module provides exceptional frequencycounting accuracy required by steam or gas turbine control systems.The IMFCS01 module is an intelligent I/O module with an onboard microprocessor, memory, andcommunication circuitry. In most applications, the IMFCS01 module works with the IMHSS03Hydraulic Servo module.
The role of the thyristor
Thyristor is an important power control device, which plays a key role in the field of electronics and power. Its main function is to control the current flow and realize the switch and regulation of power. The following are the main functions of thyristors:
(1) Power switch control
The thyristor can be used as a power switch to control the on-off of the circuit. When the control voltage of the thyristor reaches a certain level, it switches from the off state to the on state, allowing the current to pass through. This switching characteristic makes thyristors widely used in the distribution and control of power systems, such as controlling motors, electric furnaces, lamps and so on.
(2) Current regulation and converter
By controlling the trigger Angle of the thyristor, the current in the circuit can be adjusted to achieve accurate current regulation. This is useful in applications where precise current control is required, such as resistance heating, AC motor speed regulation, and so on.
(3) AC-DC conversion
Thyristors can convert alternating current to direct current, which is useful in some specific applications, such as DC motor drive, DC power acquisition, etc.
(4) Voltage control
The thyristor can also be used to control the voltage of the circuit, and the voltage waveform can be adjusted by controlling the trigger Angle of the thyristor.
(5) Power factor correction
Thyristors can be used to improve the power factor of power systems. By controlling the conduction Angle of the thyristor, a certain harmonic current can be generated in the circuit to improve the power factor of the system.
Power stability improvement: In power systems, thyristors can be used to adjust voltage and current, thereby improving the stability of the power system and reducing voltage fluctuations and electrical surges in the power system.
