Description
General Information
- Product ID:3BSE007285R1
- ABB Type Designation:DSTS 104

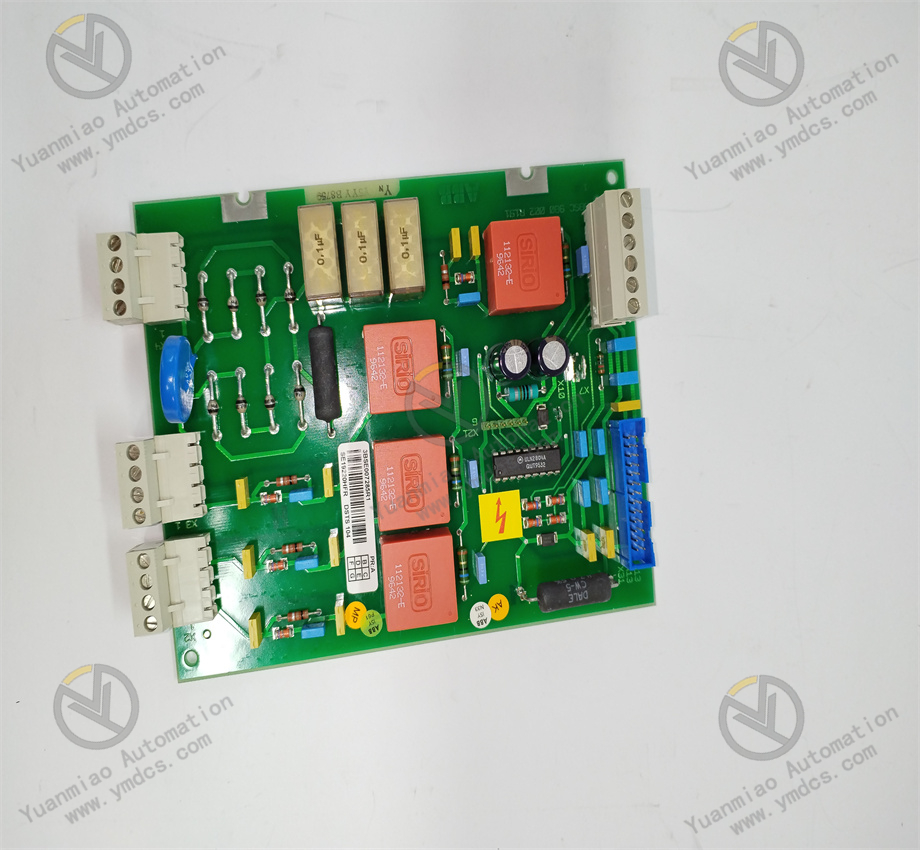

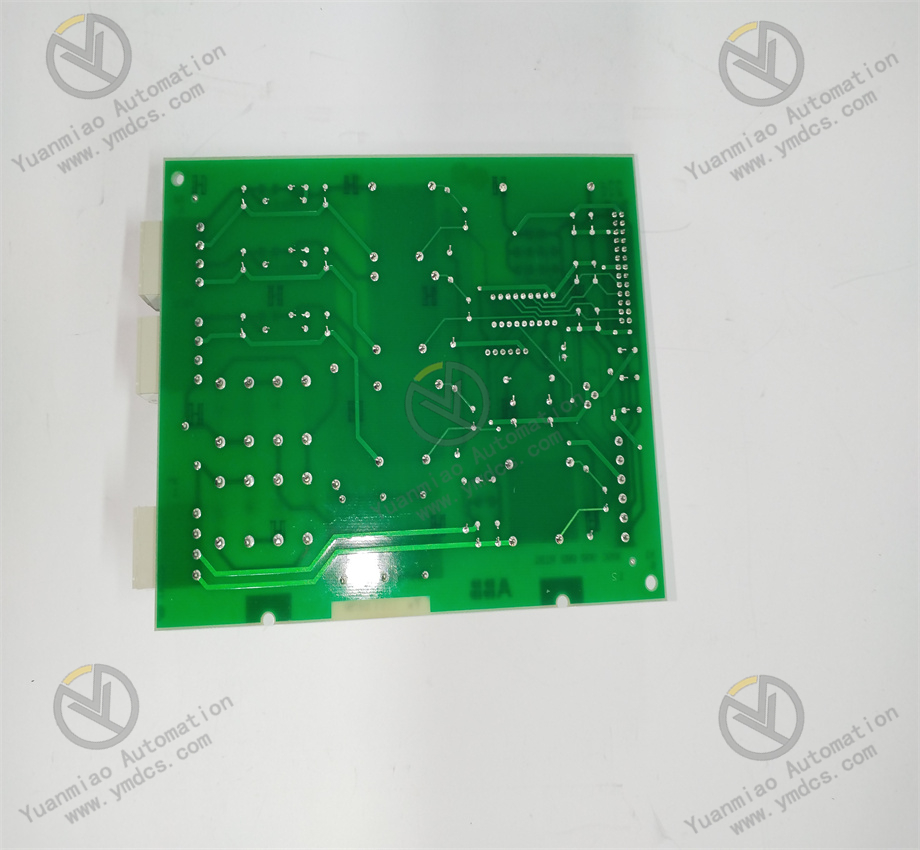

- Catalog Description:DSTS 104 Trigger Pulse Amplifier Card
- Long Description:DSTS 104 Trigger Pulse Amplifier Card
Rated voltage 24 V DC
Note! This part is exempted from the scope of 2011/65/EU (RoHS)
as provided in Article 2(4)(c), (e), (f) and (j) therein
(ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY
- ABB Advant Master Process Control System)
Dimensions
- Product Net Depth / Length:198 mm
- Product Net Height:31.5 mm
- Product Net Width:130.5 mm
- Product Net Weight:0.22 kg
A Data Acquisition Card (DAQ card) is an electronic device primarily used to convert analog signals into digital signals for further processing and analysis by a computer. These cards are often used in a variety of applications such as scientific research, industrial automation, laboratory testing and measurement. The data acquisition card can sample, quantify, encode and store the signal, and realize data transmission and processing through the interface with the computer. Main features of data acquisition card: 1. Analog signal input: The data acquisition card can receive different types of analog signals, such as voltage, current, temperature, pressure, etc. These signals usually come from sensors or other measuring devices. 2. Analog-to-digital converter (ADC) : The ADC is the core component of the data acquisition card, which converts analog signals to digital signals. The accuracy and speed of the ADC are the key indicators of the performance of the data acquisition card, usually measured in bits and samples per second. 3. Digital signal output: The digital signal is transmitted to the computer through the output interface of the data acquisition card (such as USB, PCI, PCIe, etc.), and then can be analyzed, stored or monitored in real time with data processing software. 4. Control and synchronization: Many data acquisition cards support synchronization with other devices, such as digital input/output (DIO), counters/timers, trigger signals, etc. These capabilities enable the data acquisition card to implement complex test and measurement scenarios. 5. Driver and software support: In order to facilitate users to conduct data acquisition, processing and analysis, data acquisition card manufacturers usually provide drivers and software kits. These software can be compatible with mainstream programming environments (such as C/C++, Python, LabVIEW, etc.), which is convenient for users to carry out secondary development and application.
Application example: 1. Temperature monitoring: Collect temperature signals through temperature sensors (such as thermocouples, thermistors, etc.), and convert the signals into digital data using data acquisition cards to achieve real-time monitoring and recording. 2. Vibration analysis: The acceleration sensor is installed on the mechanical equipment, the vibration signal is collected, and the data acquisition card is analyzed to evaluate the operating status of the equipment and fault diagnosis. 3. Sound measurement: The acoustic signal is collected by microphone, and the sound signal is analyzed by data acquisition card for noise monitoring, speech recognition and other applications. 4. Electronic test: Measure voltage, current, impedance and other parameters on the circuit board, and use the data acquisition card for real-time monitoring and analysis to evaluate circuit performance and fault diagnosis. 5. Biomedical signal processing: Collect biological signals (such as ECG, EEG, myoelectric, etc.), analyze and process them through data acquisition cards for research and clinical diagnosis.
