Description
Manufacturer : ABB

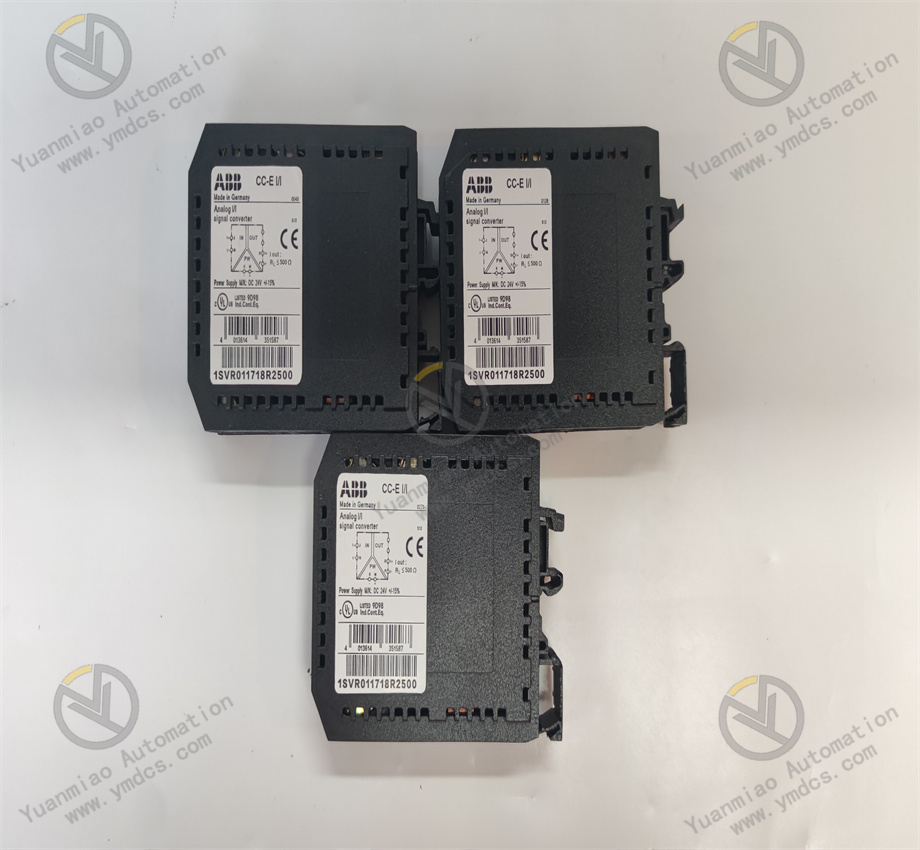

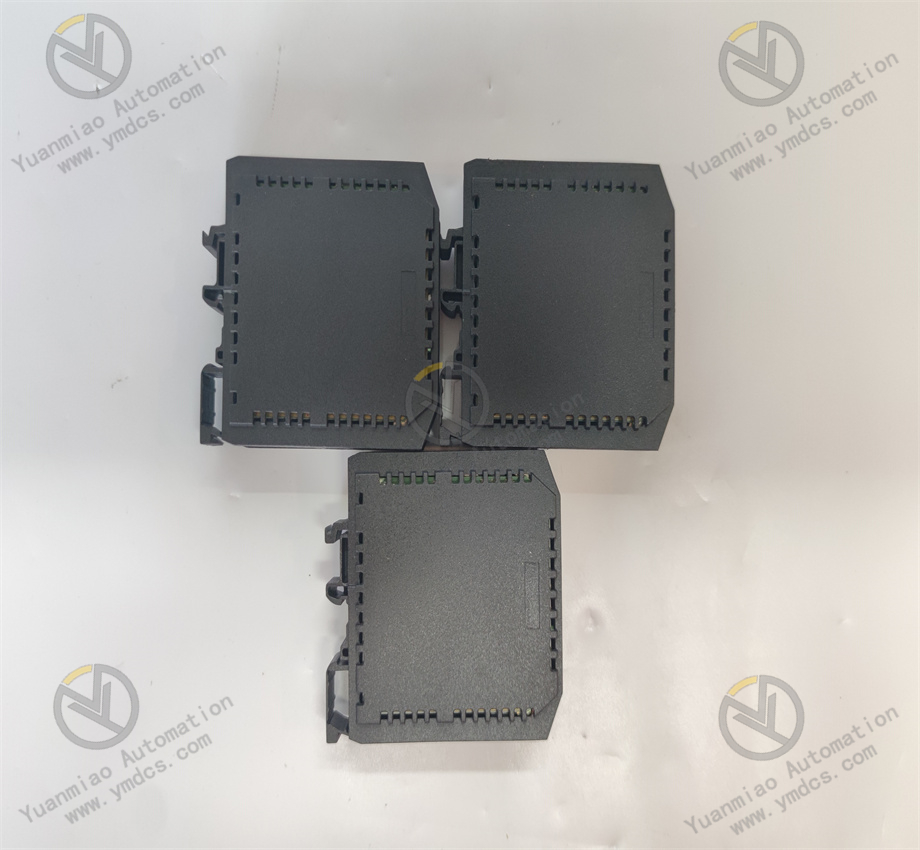

Product No : 1SVR011718R2500
Product Type : CC-E I/I Signal converter, singlef.
2 universally configurable devices (type CC-E/STD)
3-way electrical isolation
2x10 single-function devices
No adjustment of single-function devices required
Supply voltage: 24 V DC
Accuracy: ± 0.5 % of full-scale
Response time: 200 µs
Dimension (LxWxH) cm : 10.7 x 2.25 x 7.5 cm
Input Signal: 4-20 mA
Output Signal: 4-20 mA
Ambient temperature range: 0...+60 °C / -20...+80 °C
Degree of protection: IP20
Weight : 0.084 Kg
Shipping Weight: 1Kg
