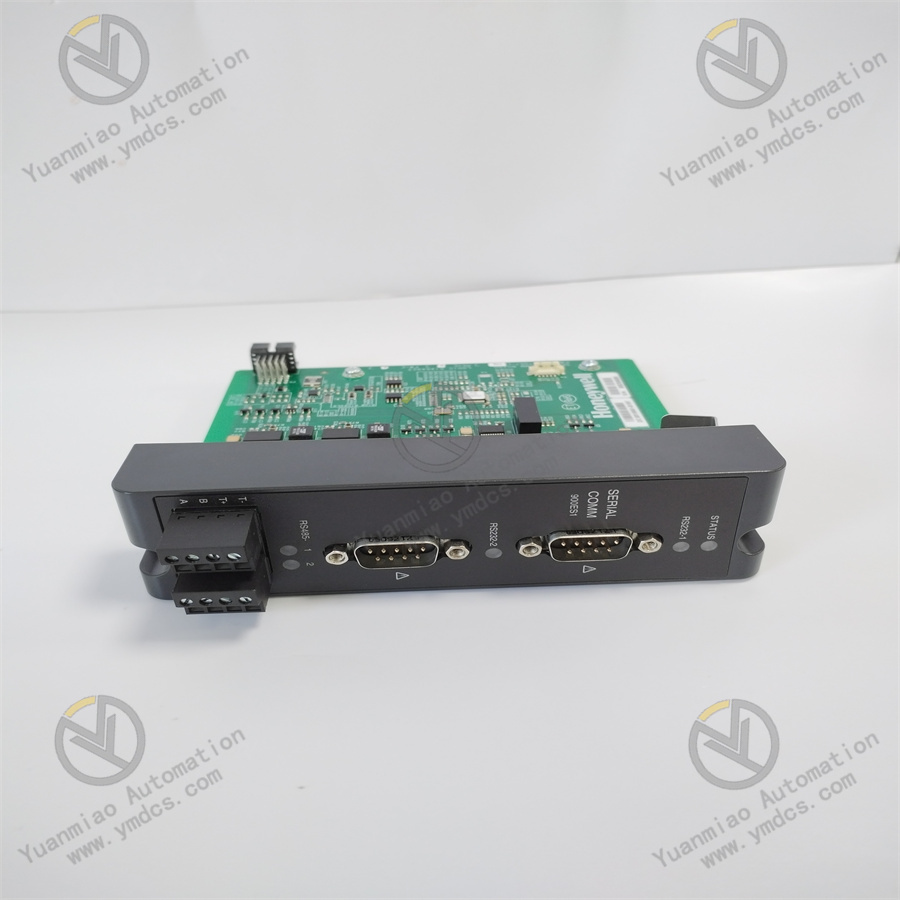

Honeywell 900ES1-0100 - HC900 IO Module

Description

The Honeywell ControlEdge HC900 Controller is anadvanced loop and logic controller offering a modular designsized to satisfy the control and data acquisition needs of awide range of process equipment. I/O Modules • 16 Channel Universal IO Module Galavanically isolatedInput/Output to chassis (p.29) • 8-point universal analog input modules: Galvanicisolation point to chassis inputs may be mixed on amodule and may include multiple thermocouple types,RTDs, ohms, voltage or mill voltage types – all easilyassigned using the Process Control Designerconfiguration tool. High point-to-point galvanic isolationsimplifies installation and saves the expense of externalisolation hardware (p.8). • 16-point high level analog input module: each point isconfigurable for V or mA. Galvanically isolated point tochassis. Galvanically isolated point to point (p.12). 250-ohm shunt resistors can be added per channel. • 4-point galvanically isolated analog output module.Galvanically isolated point to chassis supports from 0 to20mA each (p.14). • 8-point analog output, galvanically isolated in 2 groupsof 4 points. Galvanically isolated point to chassis.Supports from 0 to 20mA each (p.15). • 16-point analog output, galvanically isolated in 4 groupsof 4 points. Galvanically isolated point to chassis.Supports from 0 to 20mA each (p.16). • 16-point digital input modules: Contact closure type, DCVoltage, AC Voltage and AC/DC voltage types (p.17).Galvanically isolated in groups of 8 channel to chassis • 32-point digital input module: DC voltage. Galvanicallyisolated point to chassis. Galvanically isolated in 2groups of 16 points (p.2117). • 8-point AC or 16-point DC digital output modules(sinking type). Galvanically isolated point to chassis.Galvanically isolated in 2 groups of 8 points (p.20). • 32-point digital output: DC voltage (sourcing type).Galvanically isolated point to chassis. Galvanicallyisolated in 2 groups of 16 points (p.25). • 8-point relay output module: four form C type and fourform A type relays. Galvanically isolated point tochassis. Galvanically isolated relay to relay (p.22). • 4 channel Pulse/Frequency/Quadrature I/O module.Galvanically isolated point to chassis (p.26).

Insert and Removal of I/O under Power For ease of maintenance, the ControlEdge HC900 controllersupports removing and inserting I/O modules from themodule rack without removing power from the controller. Each module is sensed for validity by the controllerand auto-configured on insertion. Other Modules In addition to I/O, the following modules are available. • Scanner 1 module, single port (p.33) • Scanner 2 Module, dual port (p.34) • Universal AC Power Supply, 60W (p.6) • Power Supply 24VDC, 60W (p.6) • Redundant Switch Module (p.35) • Power Status Module (p.35) Failsafe All ControlEdge 900 Platform I/O modules support a userspecified failsafe value (analog) or state (digital) that themodule outputs or inputs will assume if communicationbetween the controller and the module is interrupted.  Outputmodules are also disabled if the controller fails to start. Module diagnostics are not initiated if the control strategydoes not call for the inputs or outputs on the modules toexecute. Failsafe is restricted to de-energize in safety applications. Remote Terminal Panels Optional DIN rail mounted Remote Terminal Panels (RTPs) are available for use with pre-wired cables to reduce installationtime and labor expense.  Four types of RTPs are available: analog inputs, relay outputs, redundant I/O and other I/O modules. Three cable lengths are also available to match hardware to installation variations.  Analog inputs RTPs include transmittershunt resistors and transmitter power terminals with individual circuit fuses.  The Relay Output RTP includes a fuse and powerdisconnect switch for each output.  All the three types of RTP panels also switch power to allow module removal andinstallation under controller power.  See page 36. Terminal Blocks 20-screw Barrier style and Euro style terminal blocks are available for use with all ControlEdge HC900 I/O Modules.Red terminal blocks are used for high voltage connections for added safety while black terminal blocks are used for lowvoltage connections. A 36-terminal Euro style block is available with the 16 AI, the 8 and 16 AO as well as the 32 DC DI and32 DC DO module types.
