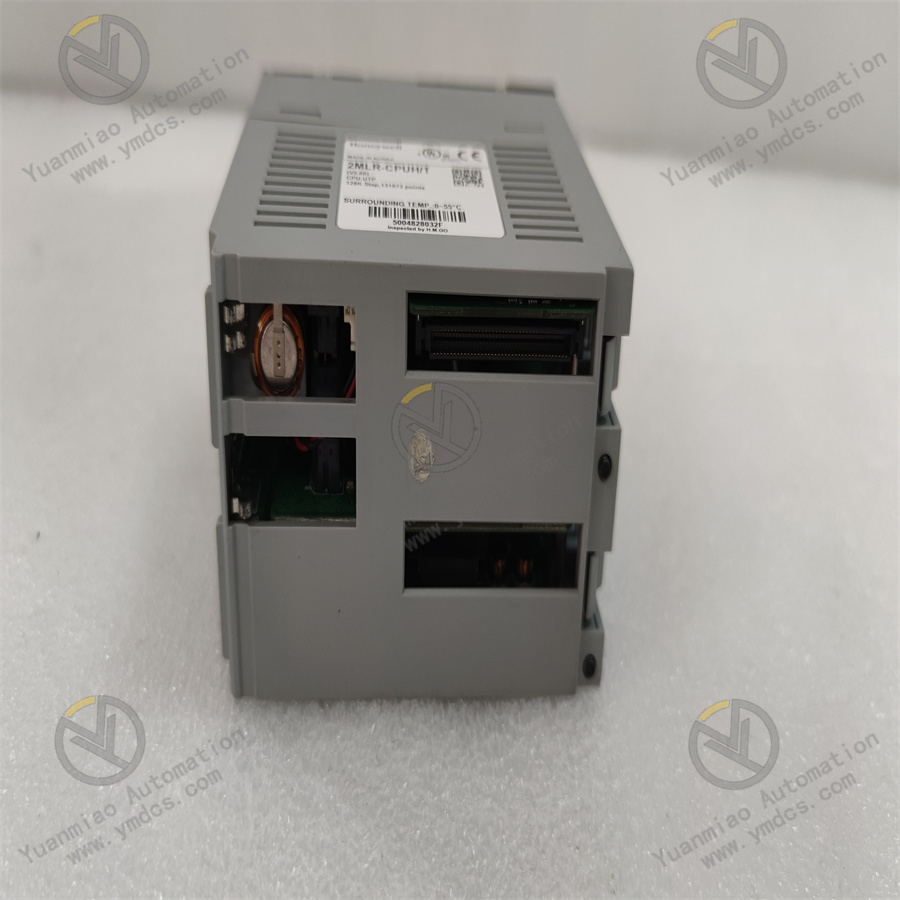

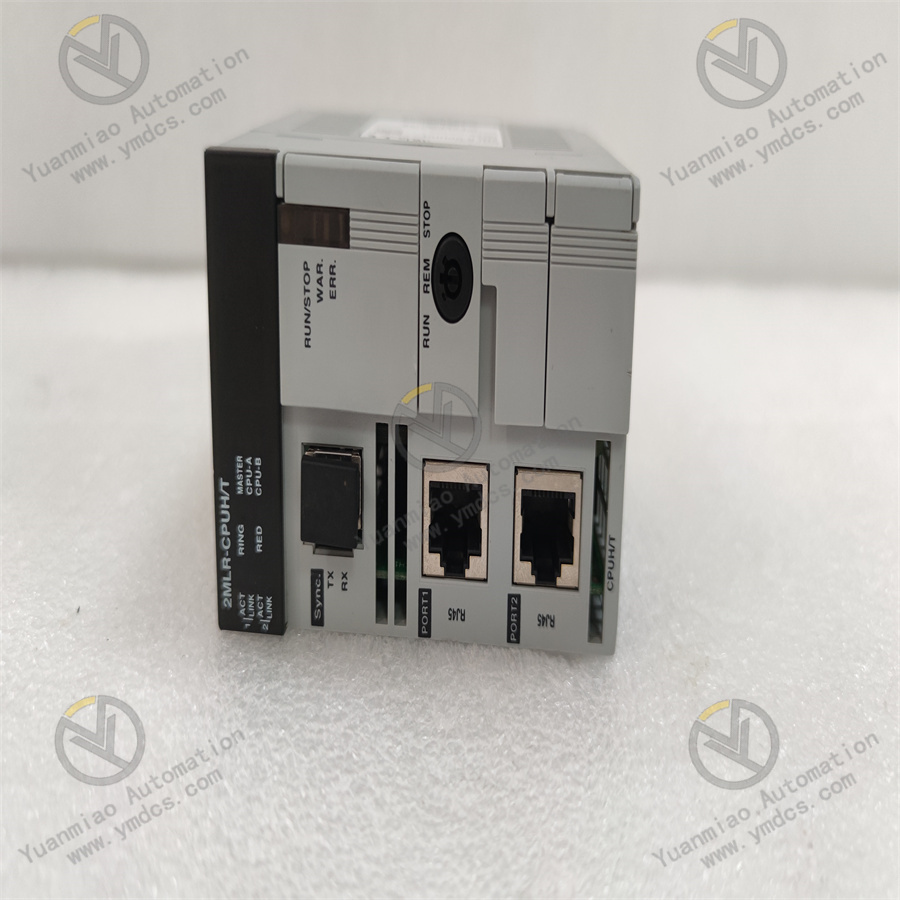

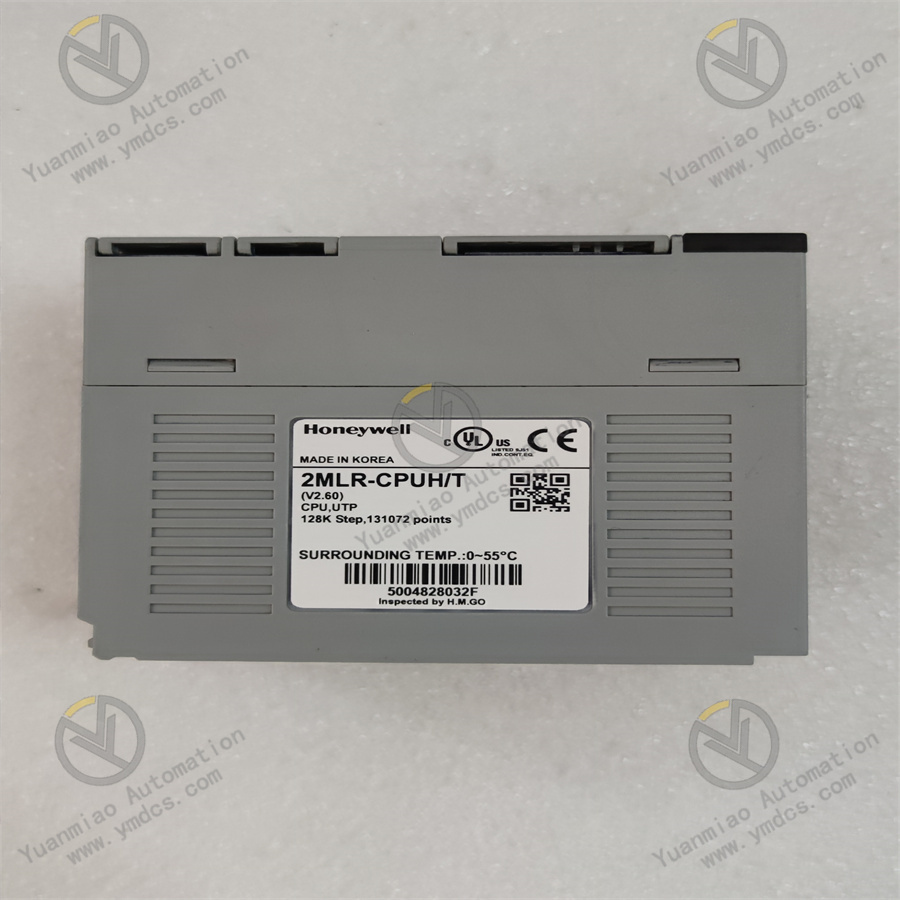

2MLR-CPUH/T - MasterLogic-200

Description

• Manufacturer : Honeywell

• Product No. : 2MLR-CPUH/T

• Product Type : High Speed CPU Module

• Program Execution methods :Cyclic scan, Time-driven interrupts, Internal Memory interrupts

• I/O control method : Scan synchronous batch processing I/O (refresh method), Direct I/O method by program instruction

• Program language :Ladder Diagram, Sequential Function Chart, Structured Text, Instruction List (view only)

• Operator : 18

• Program memory : 7 MB

• Max # I/O bases : 31

• Max # slots : 372

• Max Network/Remote I/O : 128,000

• Flash Memory : 16 MB

• Current consumption (mA) : 1173

• Weight : 0.257 Kg

• Shipping Weight : 2 Kg

Overview MasterLogic-200, Honeywell’s nextgeneration Programmable LogicControllers (PLC), adds power androbustness to logic-interlock-sequencebatch control capabilities of Experionnetwork. It is state of the art, compact yetpowerful & versatile, cost-effectivesolution ideal for fast logic, sequential,and batch control applications The highlights of MasterLogic-200 PLC system are: • Powerful & Versatile CPU (high speed / memory, IEC programming etc) • Compact footprint (Rack room, cabinet space saver, shipping costssaver) • Modular options (power supply, range of I/O modules to suit yourconfiguration) • Flexibility in module assignment – any module can be installed in anyslot of any base without any restrictions. • Open networks (Fast Ethernet, UTP/Fiber-Optic, serial RS232C/422/485) • Open protocols (Profibus-DP, MODBUS ASCII/RTU/TCP) • Peer-to-Peer networks (Dedicated Fast Ethernet on UTP/Fiber-optic) • Simulation Environment to test control strategies without hardware orprocess connections. • Engineer-friendly software (Connection options, easy configuration &trouble-shooting) • Diagnostics (System/Error Logs, system monitoring, network monitoring,ping test, frame monitor) • Experion PKS & Experion HS Integration (PLC alarm/events, clocksynch, etc)

• Redundancy (CPU, Power, I/O network redundancy)

MasterLogic-200 PLC system architecture Redundancy options MasterLogic-200 provides the control system designer with various redundancyarchitecture options that fits the requirement. Fully Redundant system CPU Model: 2MLR-CPUH/# provides a fully redundant system: • Redundant CPU • Redundant Power • Redundant I/O cable (ring topology with dual paths) Non-redundant system For cost-effective applications, CPU Model: 2MLI-CPUU provides a fully nonredundant system: • Non-redundant CPU • Non-redundant Power • Non-redundant I/O cable Non-redundant CPU but Redundant Power and I/O cable A slight variation of the fully redundant architecture with only the master CPU of2MLR-CPUH/# (excluding the standby CPU) offers the functionality of: • Non-Redundant CPU • Redundant Power • Redundant I/O cable (ring topology with dual paths)
