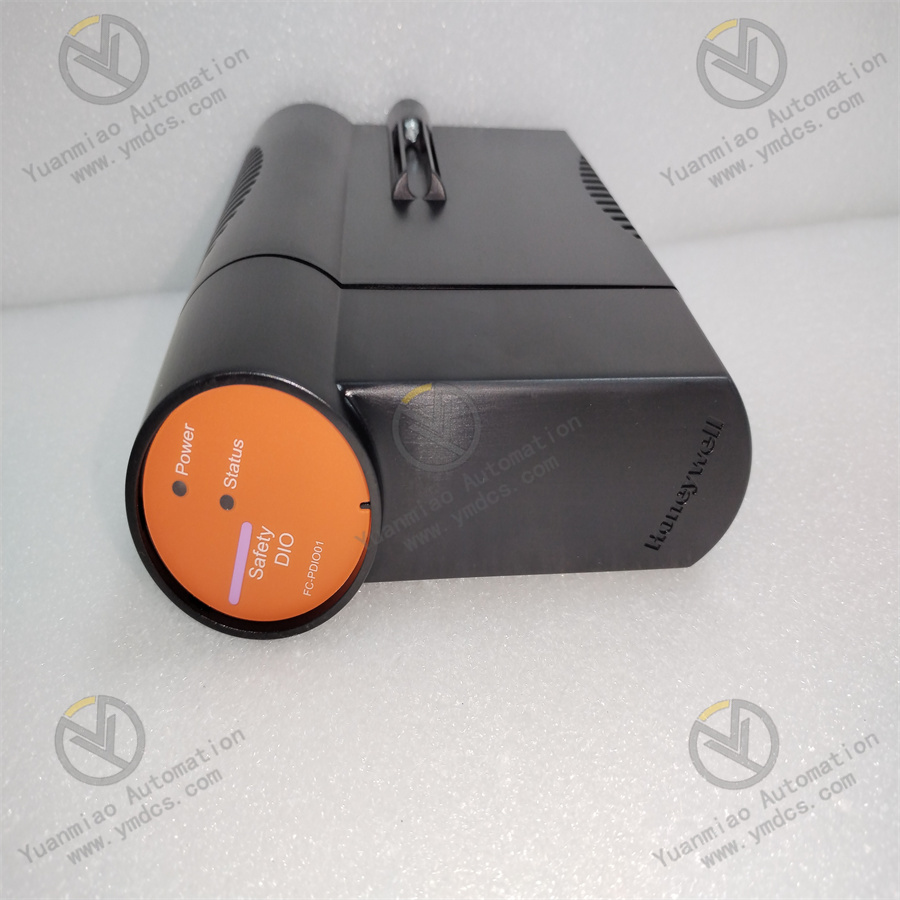

FC-PDIO01 - Safety Digital IO Module

Description

Universal Marshaling Solution provides standardized marshalling for central and distributed installations using signalconditioning assemblies.  The signal conditioning assemblies handle 16 I/O’s including disconnect, fusing as default, andwhen needed signal conditioning adapters (SCA) including isolation, intrinsic safety, relay, and other functions can beplugged in optionally.  The SCA supports standardized cabinet assembly and wiring configurations without the need forcustom wiring. The unique features of UMS include: • Three level flexible field terminations are provided to cater to various field wiringrequirements. • The Signal Conditioning Adapters are plugged into the USCA to eliminate theneed for a separate installation of isolators, relays, signal converters and barriers. • USCA has integral (optional) fuse and knife disconnect for easier plant installationand maintenance. • D-Sub connector is provided on the USCA for interfacing with the IOTA. • Field power is supplied through the USCA via the system integration cable (SIC)from the Safety IOTA. • Optional power connector is provided to supply power to the active signalconditioning adapters. • Optional 16 plug and play Signal Conditioning Adapters. • Vertical mounting for more effective wiring since most field wiring applications require entry from the top or bottom ofthe cabinet. • An LED for a quick visual cue to draw the Maintenance Technician’s eye to important status information of relay andactive signal conditioning adapters.

Functions • Universal Signal Conditioning Assembly – CC-USCA01 is a backplane assembly which can accommodate 16signal conditioning modules. Field side terminals of each channel is provided with integrated fuse and knifedisconnect function. The safety system side interface is provided through a single mass termination cable (SIC)which connects all 16 channels. CC-USCA01 is DIN rail mountable. • Universal Pass Through Adapter – CC-UPTA01 is a single channel pass through module which allows directconnectivity between safety system field terminals (both live & return) and the field device. This module does notrequire external power to operate. • Digital Input with 5K resistor Adapter - FC-UDI501 is a single channel digital input module with a 5K resistor fordigital input devices without EOL. Output side interfaces with the field device and the input side gets connected tosafety system. This module does not require external power to operate. • Digital Input Relay with 5K resistor Adapter - FC-UIR501 is a single channel relay input module with a 5Kresistor for wet contact applications. Coil side of the relay interfaces with the field device and the contact side getsconnected to safety system. This module does not require external power to operate • Digital Input Relay Adapter - FC-UDIR01 is a SIL 3 single channel relay input module for low voltage applications.Coil side of the relay interfaces with the field device and the contact side gets connected to safety system. Thismodule does require external power to operate. • Digital Output Relay Adapter - FC-UDOR01 is a SIL 3 Normally Open single channel relay output module for lowvoltage applications. Contact side of the relay interfaces with the field device and the coil side gets connected tosafety system. This module does not require external power to operate.

I/O Module Functions • High Level Analog Input /HART Input Module (16pt) – The High Level Analog Input Module supports both high level analog and HART inputs. Analog inputs are typically 4-20mA DC for both traditional and HART devices. HART data can be used for status and configuration. HART data, such as the secondary and tertiary variables, can also be used as process control variables. Two versions are available. • High Level Analog Input w/o HART (16pt) – The High Level Analog Input Module supports high level analog inputs Analog inputs are typically 4-20mA DC for traditional devices. • Analog Output/HART Output Module (16pt) – The Analog Output Module supports both standard 4-20mA DC outputs and HART transmitter outputs. Two versions are available. • Analog Output w/o HART (16pt) – The Analog Output Module supports standard 4-20mA DC outputs. • Digital Input 24 VDC (32pt) – Digital input sensing for 24V signals. Two versions are available. • Digital Input High Voltage (32pt) – Digital input sensing for 110 VAC, 220 VAC, 125VDC. • Digital Output 24 VDC (32 pt) – Current sourcing digital outputs. Outputs are electronically short-circuit protected. Two versions are available. • Relay Digital Output (32 pt) – Digital output with NO or NC dry contacts. Can be used for low power or high power applications. • Temperature Multiplexer (64 pt) – Provides thermocouple (TC) and resistance temperature device (RTD) inputs. The Multiplexer supports up to four, field proven PMIO FTAs. • Temperature Multiplexer (64 pt) – Provides thermocouple (TC) and resistance temperature device (RTD) inputs. The Multiplexer supports up to four, field proven PMIO FTAs • Pulse Input (8pt) – Provide linear counting, PV generation, and Quaduature Input for Custody Transfer • Universal Input Output (32 pt) – Supports 32 channels of user configurable IO. Choices available – analog input, analog output, digital input, and digital output.
