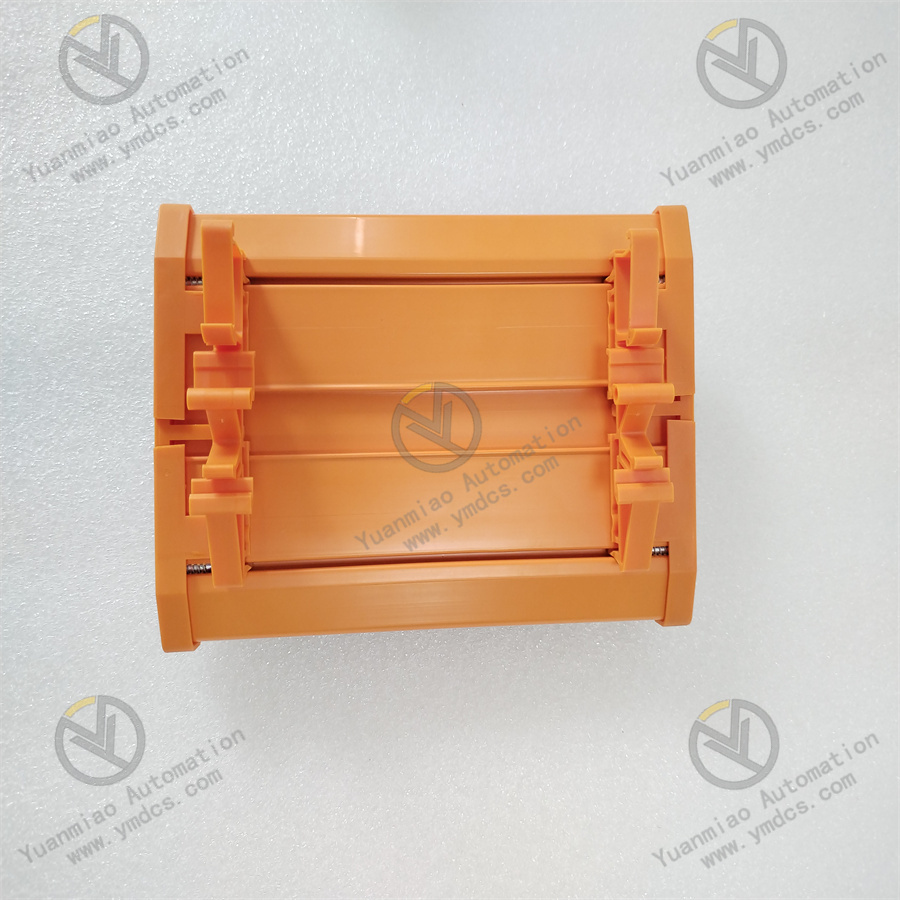

FC-TDIO51 - Safety Manager SC Hardware

Description

Universal Marshaling Solution provides standardized marshalling for central and distributed installations using signalconditioning assemblies.  The signal conditioning assemblies handle 16 I/O’s including disconnect, fusing as default, andwhen needed signal conditioning adapters (SCA) including isolation, intrinsic safety, relay, and other functions can beplugged in optionally.  The SCA supports standardized cabinet assembly and wiring configurations without the need forcustom wiring. The unique features of UMS include: • Three level flexible field terminations are provided to cater to various field wiringrequirements. • The Signal Conditioning Adapters are plugged into the USCA to eliminate theneed for a separate installation of isolators, relays, signal converters and barriers. • USCA has integral (optional) fuse and knife disconnect for easier plant installationand maintenance. • D-Sub connector is provided on the USCA for interfacing with the IOTA. • Field power is supplied through the USCA via the system integration cable (SIC)from the Safety IOTA. • Optional power connector is provided to supply power to the active signalconditioning adapters. • Optional 16 plug and play Signal Conditioning Adapters. • Vertical mounting for more effective wiring since most field wiring applications require entry from the top or bottom ofthe cabinet. • An LED for a quick visual cue to draw the Maintenance Technician’s eye to important status information of relay andactive signal conditioning adapters.

Functions

• Digital Namur proximity switch Adapter - FC-UDIN01 is a single channel digital input module for digital proximityswitches. Output side interfaces with the field device and the input side gets connected to the UIO module of thesafety system. This module does not require external power to operate. • Digital Namur safety proximity switch Adapter - FC-UDNS01 is a single channel digital input module for digitalsafety proximity switches. Output side interfaces with the field device and the input side gets connected to the UIOmodule of the safety system. This module does not require external power to operate. • Analog Input Barrier Adapter – FC-UGAI01 is a single channel analog input barrier module, for Intrinsically SafeAnalog Input devices. Output side interfaces with the field device in a non-Safe zone and the input side getsconnected to the USIO module of the safety system. This module does not require external power to operate. • Analog Output Barrier Adapter – FC-UGAO01 is a single channel analog output barrier module, for IntrinsicallySafe Analog Output devices. Output side interfaces with the field device in a non-Safe zone and the input side getsconnected to the USIO module of the safety system. This module does not require external power to operate. • Digital Input/Output Barrier Adapter – FC-UGDA01 is a single channel digital input or output barrier module, forIntrinsically Safe Digital Input or Output devices. Output side interfaces with the field device in a non-Safe zone and the input side gets connected to the USIO module of the safety system. This module does not require externalpower to operate. • Universal IS Signal Conditioning Assembly – CC-UGIA01 is a backplane assembly which can accommodate 16IS barrier modules. Field side terminals of each channel is provided with integrated fuse and knife disconnectfunction. The safety system side interface is provided through a single mass termination cable (SIC) which connectsall 16 channels. CC-UGIA01 is DIN rail mountable. • Universal Signal Conditioning High Current Assembly – FC-USCA01 is a backplane assembly which canaccommodate 16 signal conditioning modules for high current applications. Field side terminals of each channel isprovided with integrated fuse and knife disconnect function. The safety system side interface is provided through asingle mass termination cable (SIC) which connects all 16 channels. FC-USCA01 is DIN rail mountable.
