Description

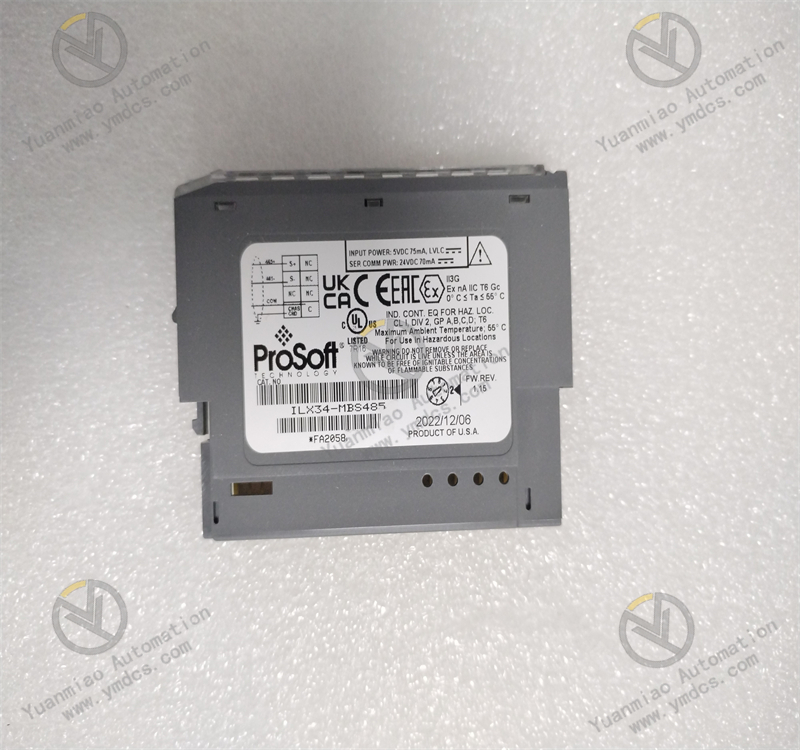

ProSoft Technology’s ILX34-MBS485 module is ideal to connect multiple devices up to 4,000 feet (1,219 meters) from your processor. These include SCADA and field device interface applications. The module can be used in CompactLogix L1 processors or Distributed 1734 Point I/O systems. In addition, the module can be configured as a Master or Slave. Features and Benefits • Add-on Instruction creates UDTs, providing logical definitions for I/O, status, and control data • Diagnostic data available in RSLogix 5000/Studio 5000 controller tags, allowing decisions to be made based upon node health • Module configuration is backed up in the CompactLogix project (ACD file) • The serial port can be enabled or disabled through ladder logic • Supports up to 1,000 words of data • Supports up to 30 Modbus Commands & up to 36 words per command • The serial port can be configured as a Modbus Master or Modbus Slave device • Suitable for SCADA and field device interface applications
General Specifications - Modbus Master/Slave
Configuration Environment | RSLogix 5000/Studio 5000 | ||
Communication parameters | Baud Rate: 2400, 4800, 9600, 19200, 38400 | ||
Modbus Modes | RTU mode (8-bit data size only) ASCII mode with LRC error checking | ||
Node Address | 1 to 247 | ||
Modbus Function Codes Supported | 1: Read Coil Status | 15: Force( Write) Multiple Coils | |
Hardware Specifications
Specification | Description |
Power Supply | 10 to 28.8 VDC (Two 24V power supplies needed if using a Series A L16/L18 controller) |
Pointbus Current | 75mA @ 5 VDC |
Serial Line Voltages | RS-232: -15 to +15 VDC RS-422/485: -7 to +12 VDC |
Number of Inputs | 1 Full duplex |
Module Location | 1734-TB or -TBS wiring base assembly (not included) 1734-TOP or -TOPS |
LED Indicators | 1 green/red module status indicator 1 green/red network status indicator 2 green TXD, RXD status indicators |
Operating Temperature | 32°F to +131°F (0°C to +55°C) |
Storage Temperature | 32°F to +131°F (0°C to +55°C) |
Relative Humidity | 5% to 95% RH with no condensation |
Dimensions (H x W x D) | 2.21 x 0.47 x 2.97 in 56 x 12 x 75.5 mm |
Shock | 30g peak acceleration (Operational) 50g peak acceleration (Non-operational) |
Vibration | Tested 5g @ 10 to 500 Hz |
ESD immunity | 6kV contact discharges 8kV air discharges |
