Description

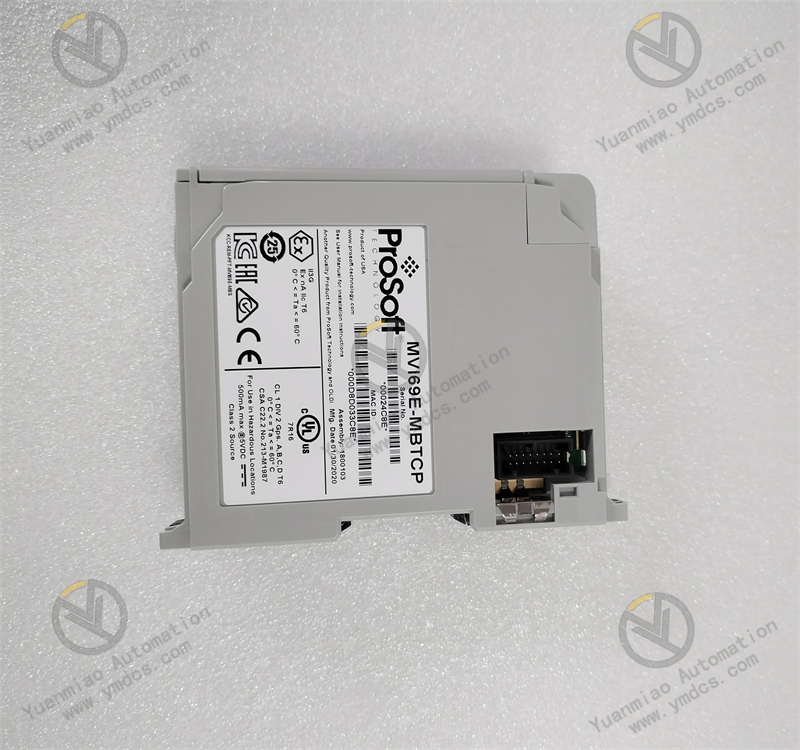

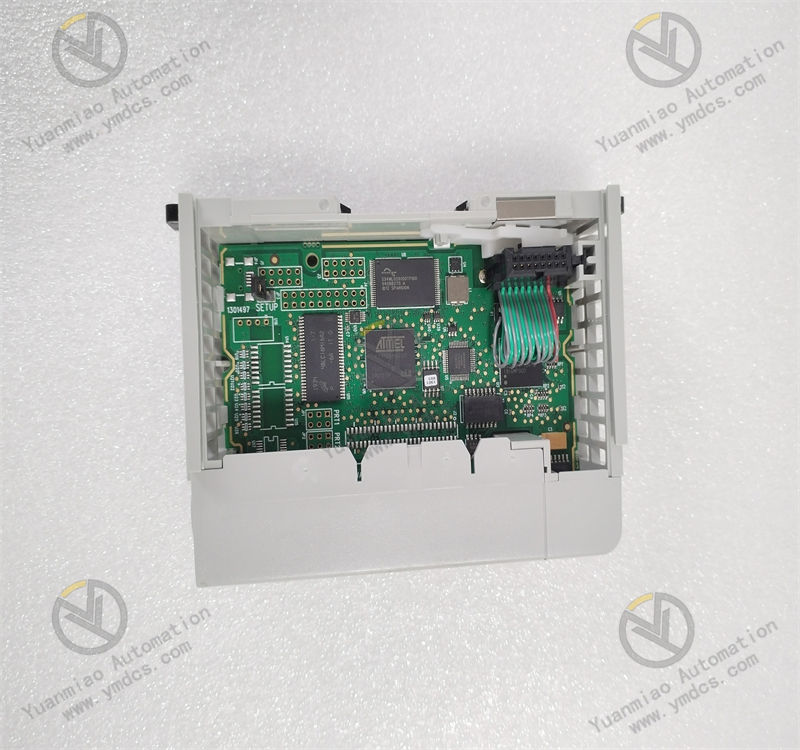

The MVI69E-MBTCP Modbus TCP/IP module for the CompactLogix™ series of controllers is designed for all applications requiring Modbus TCP connectivity. This module comes with an Add-on Profile and an Add-on Instruction to reduce commissioning time. The MVI69E-MBTCP has a single Ethernet port for diagnostic and application data. The module supports both Client and Server connectivity to interface with a variety of devices using the Modbus Protocol. Características y Beneficios • Supports CompactLogix processors with 1769 I/O bus capability version 16 and greater (MicroLogix 1500 not supported) • Add-on Instruction creates UDTs, providing logical definitions for I/O, status, and control data • Add-on Profile support, improving integration in the CompactLogix System • Diagnostic data available in processor controller tags, enabling decisions to be made based upon node health • Module configuration backed up in CompactLogix project (ACD file) • Module acts as a co-processor reducing impact to PLC scan time • Supports up to 10,000 words of data • Supports up to 20 Client and 20 Server connections simultaneously • Supports Enron and Daniel style Floating point data implementation • Suitable for SCADA and field device interface applications
Especificaciones
Configuration | ProSoft Configuration Builder | |
I/O Size | 60/120/240 - 16 bit integers | |
Available Data | 10,000 words | |
Floating Point | Floating point data movement supported, including configurable support for Enron, Daniel®, and other implementations | |
Modbus Function | 1: Read Coil Status | 15: Force (Write) Multiple Coils |
Modbus Client | ||
Configured as a Modbus Client, the module actively issues Modbus commands to other nodes on the Modbus network. | ||
Client Connections | 20 | |
Command List | Up to 16 command per Client connection, each fully configurable for function, slave address, register to/from addressing and word/bit count. | |
Command Control | Configured commands can be controlled directly from ladder logic | |
Polling of command list | Configurable polling of command list, including continuous and on change of data. | |
Status Data | Error codes available on an individual command basis. In addition, a slave status list is maintained per active Modbus Client | |
Modbus Server | ||
Configured as a Modbus Server, the module acts as a node and permits a remote Client to interact with all data contained in the module. | ||
Server Connections | 10 - MBAP Connections | |
Status Data | Error codes, counters and port status available per configured slave | |
Hardware
Specification | Description | |
Dimensions | Standard 1769 Single-slot module | |
Current Load | 500 mA max @ 5 VDC | |
Operating Temp. | 32° F to 140° F (0° C to 60°C) | |
Storage Temp. | -40° F to 185° F (-40° C to 85° C) | |
Relative Humidity | 5% to 95% (with no condensation) | |
LED Indicators | Configuration Status | |
Debug Port | 10/100 Ethernet Port (Auto-negotiating) | |
