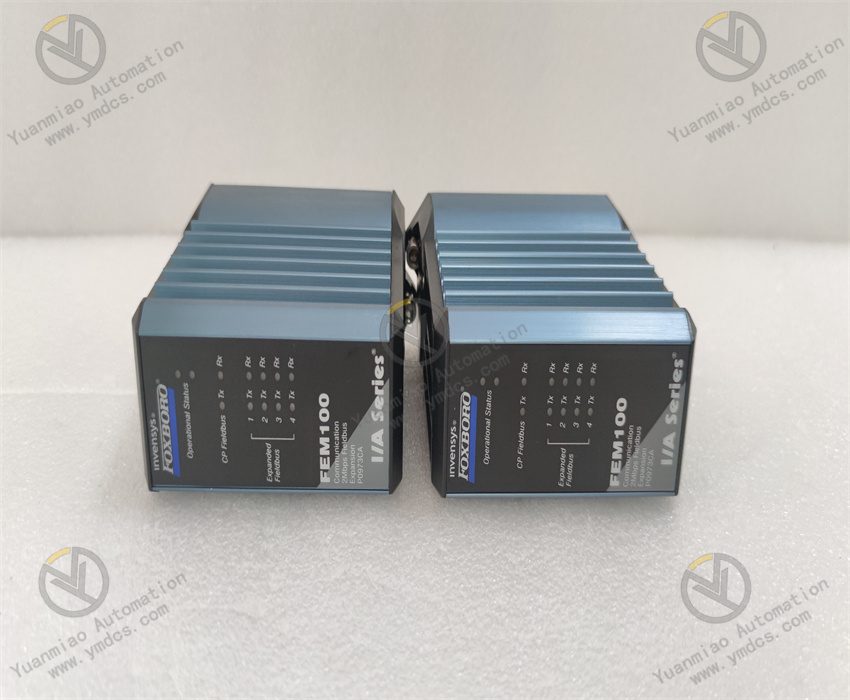

FEM100 P0973CA - Fieldbus Expansion Module

Description

• Foxboro ( by Schneider Electric )

• Product No. : P0973CA

• Model : FEM100 Fieldbus Expansion Module

• The Fieldbus Expansion Module (FEM100) provides four Expanded Fieldbuses to the Field Control Processor 270 (FCP270). Each of the four Expanded Fieldbuses can accommodate up to thirty-two 200 Series Fieldbus Modules (FBMs).

• Transmission Rate : 2 Mbps for 200 Series DIN FBMs

• Input voltage range : 21 to 26 V dc

• Consumption : 2.2 W (maximum)

• Operating temperature : -20 to +70°C (-4 to +158°F)

• Operating relative humidity : 5 to 95% (noncondensing)

• Operating altitude : -300 to +3,000 m (-1,000 to +10,000 ft)

• FEM100 mounts on a Two-Slot (P0973CG) or Four-Slot (P0973CN) Expansion Baseplate. These baseplates can be mounted on a vertical DIN rail. Refer to PSS 21H-2W6 B4 for details.

• Dimensions (HxWxD), approx, : 11.4cm x 4.46cm x 10.5cm

• Shipping Weight : 3 Kg

FEATURES • For typical control usage enables a FCP270 to communicate with up to 128 of the 200 Series FBMs, over four Expanded Fieldbuses. • Redundancy minimizes communication interruption from Expanded Fieldbus 1 through 4. • Two-Slot and Four-Slot FEM100 Expansion Baseplates both support the 2 Mbps Module Fieldbus for 200 Series (or equivalent) FBMs. • Two-slot Expansion Baseplate accommodates FEM100 modules only, used to upgrade existing FCP270 installations. • Four-slot Expansion Baseplate accommodates two FCP270 control processors and their fiber optic splitter/combiners, plus two FEM100 modules, for new installations. • Harsh (Class G3 – ISA S71.04) contamination protection. Specifications • Transmission Rate : 2 Mbps for 200 Series DIN FBMs • Input voltage range : 21 to 26 V dc • Consumption : 2.2 W (maximum) • Operating temperature : -20 to +70°C (-4 to +158°F) • Operating relative humidity : 5 to 95% (noncondensing) • Operating altitude : -300 to +3,000 m (-1,000 to +10,000 ft)
