Description

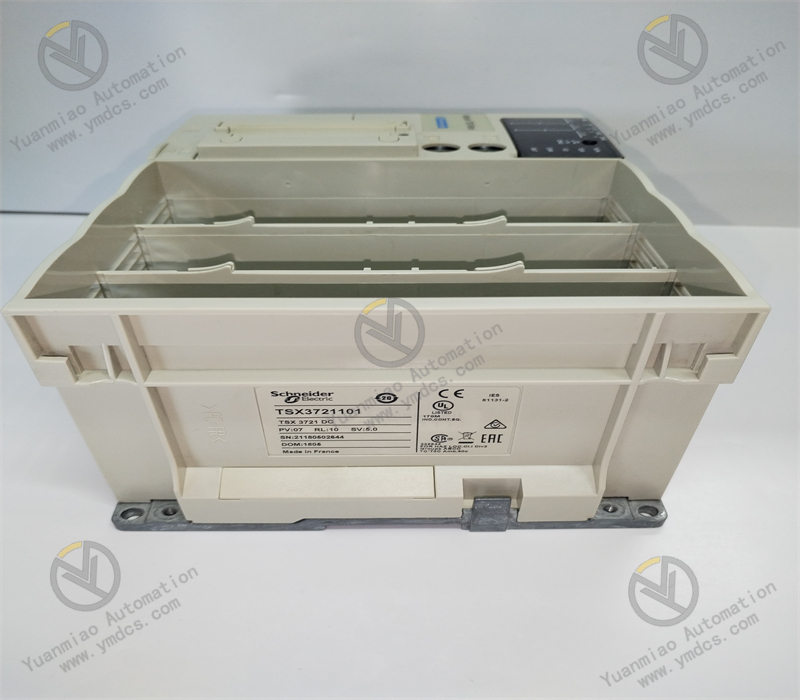

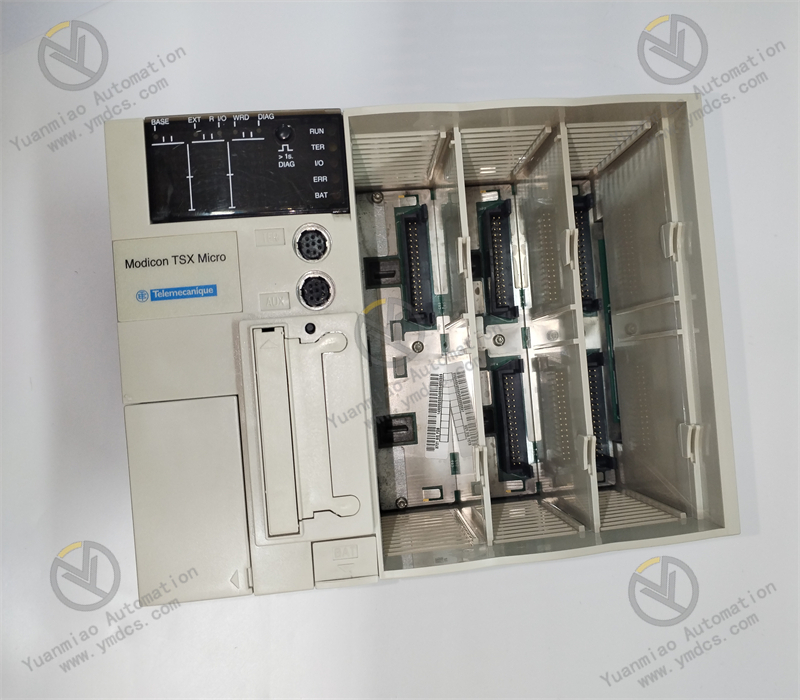

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This modular base controller has 3 slots. It is a modular base controller with a primary voltage of 24V, 19.2V to 30V DC and 2mA 60A input current. Integrated connections are 1 serial link Uni-Telway 19.2kbps and 1 Modbus RTU 19.2kbps. Its dimensions are 341.4mm (width) x 152mm (depth) x 151mm (height) and weighs 1.72kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine.
| Part Number | TSX3721101 |
| Manufacturer | Schneider Electric |
| Type | CPUs |
| Model # | TSX-372-1101 |
| Warranty | 2 Year |
| Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3 |
| Electromagnetic field immunity test IEC 1000-4-3 level 3 | |
| Resistance to fast transient IEC 1000-4-4 level 3 | |
| Immunity to impulse waves IEC 1000-4-5 | |
| Damped oscillatory wave IEC 1000-4-12 | |
| Immunity to electromagnetic interference IEC 61131-2 | |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 24 V 19.2...30 V DC |
| Input current | 2 mA < 60 A |
| Immunity to microbreaks | < 10 ms |
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s |
| 1 Modbus Modbus RTU 19.2 kbit/s | |
| Realtime clock | With |
| Memory description | Internal RAM 20 Kwords data |
| Internal RAM (with PCMCIA card) 128 Kwords program and data | |
| Internal RAM 128 Kwords data storage | |
| Flash 15 Kwords data | |
| Maximum size of object areas | 256 %Mi |
| 1 %MWi internal words |
| Execution time for 1 K instruction | 5.88 100 % Boolean without PCMCIA card |
| 0.27 65 % Boolean and 35 % numerical without PCMCIA card | |
| 4 100 % Boolean with PCMCIA card | |
| 0.266 65 % Boolean and 35 % numerical with PCMCIA card | |
| Application structure | 1 fast task |
| 1 master task | |
| 16 event tasks | |
| System overhead | 1.6 ms master task |
| Protection type | Overload protection |
| Short-circuit | |
| Total useful secondary power | 16 W |
