Description
General Information
- Product ID:3BSE004191R1
- ABB Type Designation:PFTL 101B-5.0kN
- Catalog Description:PFTL 101B-5.0kN, Load cell
Additional Information
- ABB Type Designation:PFTL 101B-5.0kN
- Core Credit:0.00
- Country of Origin:Sweden (SE)
- Gross Weight:21 kg
- Invoice Description:PFTL 101B-5.0kN, Load cell
- Made To Order:No
- Medium Description:Load Cell
- Minimum Order Quantity:1 piece
- Order Multiple:1 piece
- Package Level 1 Gross Weight:21 kg
- Package Level 1 Units:1 piece
- Part Type:New
- Product Name:Unclassified
- Product Net Weight:21 kg
- Product Type:Unclassified
- Quote Only:No
- Selling Unit of Measure:piece
- Technical Information:PFTL 101B-5.0kN, Load Cell
- WEEE Category:Product Not in WEEE Scope

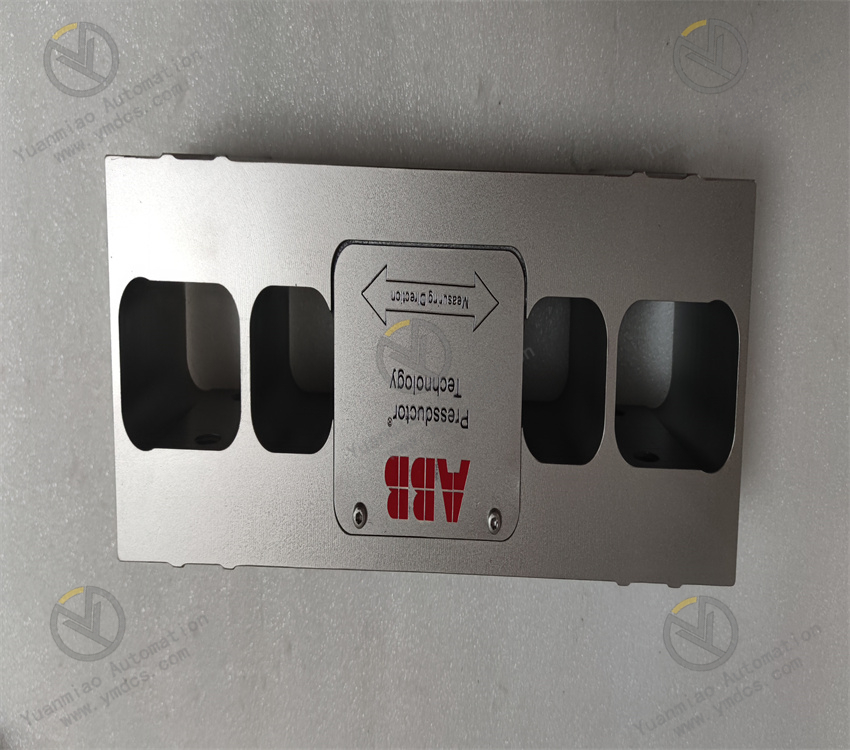

Pressductor PillowBlock horizontal load cells are ideal in applications characterized by low tension levels, heavy rolls and high operating speeds - a scenario often encounted in the paper industry. The PillowBlock comes in three versions: The standard version, PFTL 101A/B, is often used for accurate measurement in the paper industry, for instance paper machines, calenders, coaters and winders. For web tension measurement in dryer sections in paper machines, the mill duty version, PFTL 101AE/BE, is recomended. This version has a fixed connection cable and a degree of protection of IP 66, which provides accurate and reliable measurement with long service life. The acid resistant version, PFTL 101AER/BER, is designed for the wet end of the paper machines and has a degree of protection of IP 66/67.
Data
| PROPERTIES | PFTL101B/BE/BER | ||||
| Nominal load | |||||
| (rated capacity) | kN | 2.0 | 5.0 | 10.0 | 20.0 |
| Lbs. | 450 | 1125 | 2250 | 4500 | |
| Permitted load | |||||
| Transverse direction | kN | 30.0 | 30.0 | 30.0 | 40.0 |
| Lbs. | 6750 | 6750 | 6750 | 9000 | |
| Overload capacity | |||||
| Measurement direction | kN | 10.0 | 25.0 | 50.0 | 80.0 |
| Lbs. | 2250 | 5625 | 11250 | 18000 | |
| Deflection | mm | 0.015 | 0.015 | 0.015 | 0.015 |
| 1/1000 in. | 0.6 | 0.6 | 0.6 | 0.6 | |
| Spring constant | kN/mm | 130 | 325 | 650 | 1300 |
| 1000 Lbs./inch | 743 | 1857 | 3715 | 7430 | |
The most common type of scale used in industrial applications is the strain gauge. The strain gauge load cell consists of a solid metal body (or "spring element") that holds the strain gauge in place. When the load is applied, the body of the load cell is slightly deformed and deflected. Deflection refers to the variation of the load unit along the length of the spindle when the load is applied. In a tension pressure load cell, deflection makes the meter shorter and thicker. In a tension load cell, the meter is stretched, lengthened and thinned. In response to changes in body shape, the strain gauge also changes shape. This in turn causes a change in the resistance of the strain gauge, which can then be measured as a voltage change. Since this change in the output is proportional to the amount of weight applied, the weight of the object can be determined from the voltage change. Another factor to consider when purchasing a load cell is the type of housing material, and some varieties are more suitable for specific application environments. Common load cell housing materials include: Load cell made of aluminum/aluminum alloy Nickel-plated load cell Polyethylene plated load cell Alloy steel/stainless steel load cell
