Description

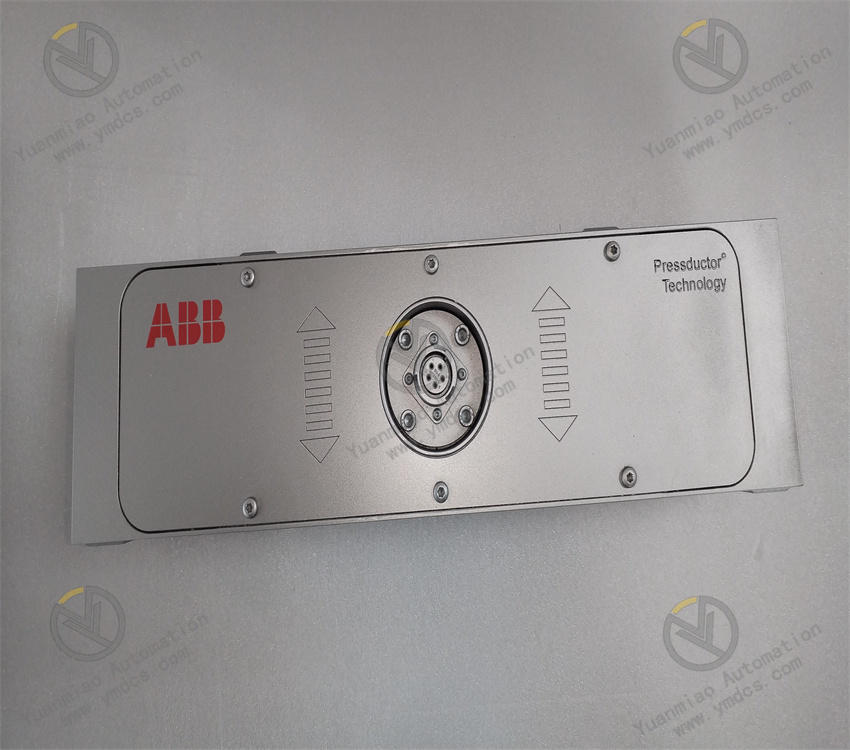

The load cell is machined from a single piece of stainless steel. The sensors are machined directlyin the piece of steel and are positioned so that they are sensitive to force in the direction of measurement and insensitive in other directions. The load cell is mounted on a base with four screws, and the bearing housing is mounted on topof the load cell with four screws.Every load cell comes calibrated and temperature compensated. The load cells PFCL 201C/201CE/201CD are available in four measurement ranges, all variantshave the same external dimensions. The load cell PFCL 201C is equipped with a connector for the pluggable connection cable. The load cell PFCL 201CE has a fiWed connection cable with protective hose. The load cell PFCL 201CD is provided with an acid-proof cable gland with a fiWed PTFE- insulatedconnection cable.
These units are designed for strip tension measurement in applications where it is essential or advantageous to determine the vertical force component. Machined from a single block of stainless steel, they have exceptionally high tolerance for overloads, shock and impact, in addition to high immunity to dust and corrosion. The standard construction is of high resistant stainless steel with potted internal components. Mill-duty versions are available for exceptionally hostile environments in i.e. galvanizing or pickling lines.
Data
| PROPERTIES | |||||
| Nominal load | |||||
| (rated capacity) | kN | 5.0 | 10.0 | 20.0 | 50.0 |
| Lbs. | 1125 | 2250 | 4500 | 11250 | |
| Extended load | kN | 7.5 | 15.0 | 30.0 | 75.0 |
| Lbs. | 1688 | 3375 | 6750 | 16875 | |
| Permitted load | |||||
| Transverse direction | kN | 2.5 | 5.0 | 10.0 | 25.0 |
| (horizontal) h=300 mm | Lbs. | 563 | 1125 | 2250 | 5625 |
| Overload capacity | |||||
| Measurement direction | |||||
| (vertical) | kN | 50.0 | 100.0 | 200.0 | 500.0 |
| Lbs. | 11250 | 22500 | 45000 | 112500 | |
| Transverse direction | |||||
| (horizontal) h=300 mm | kN | 12.5 | 25.0 | 50.0 | 125.0 |
| Lbs. | 2815 | 5625 | 11250 | 28125 | |
| Deflection | mm | 0.02 | 0.02 | 0.02 | 0.02 |
| 1/1000 inch | 0.8 | 0.8 | 0.8 | 0.8 | |
| Spring constant | kN/mm | 250 | 500 | 1000 | 2500 |
| 1000 Lbs./inch | 1430 | 2860 | 5720 | 14300 |
