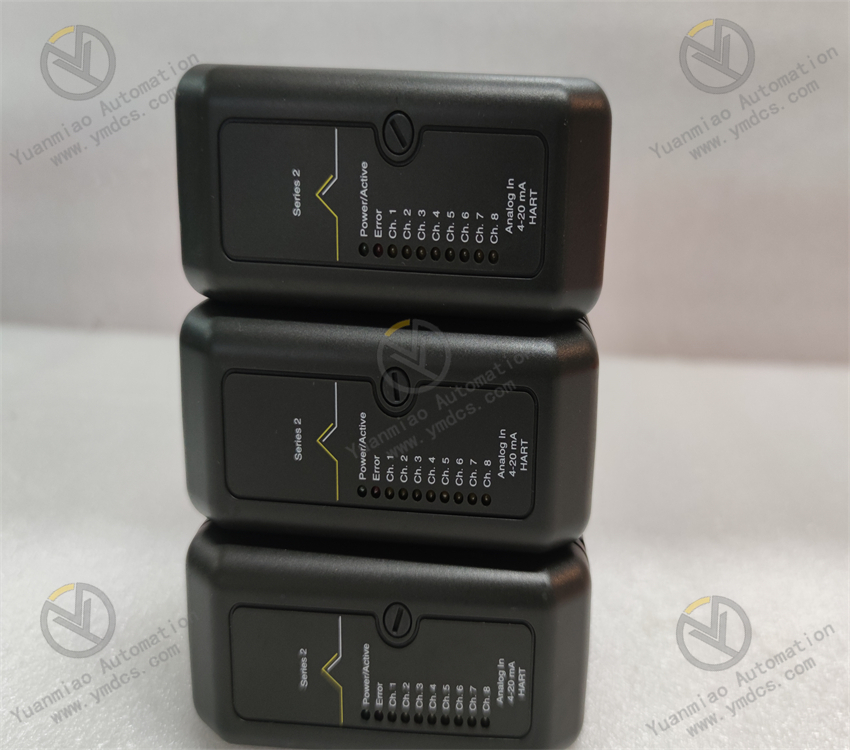

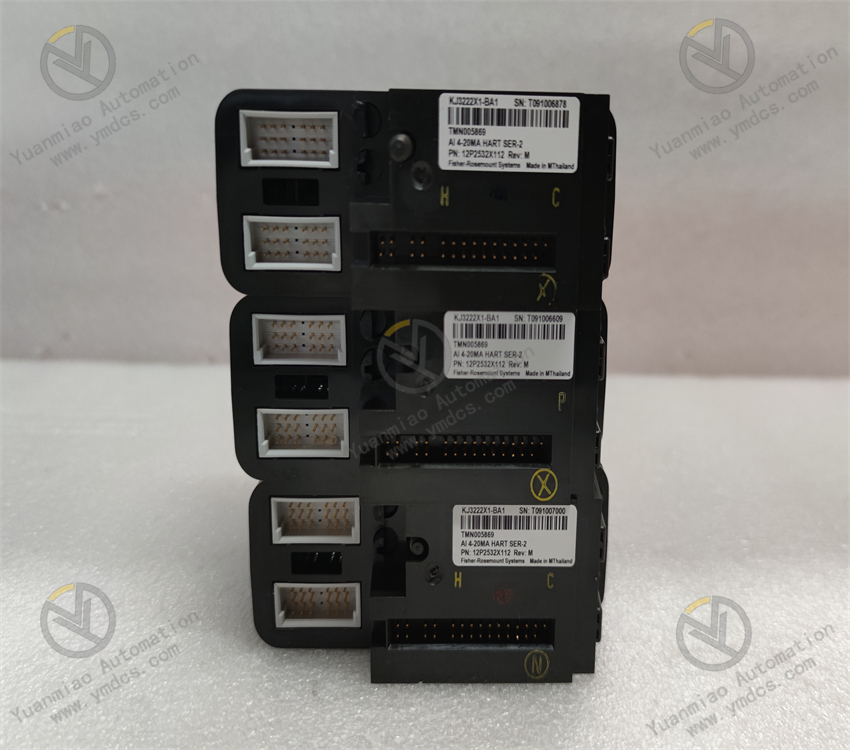

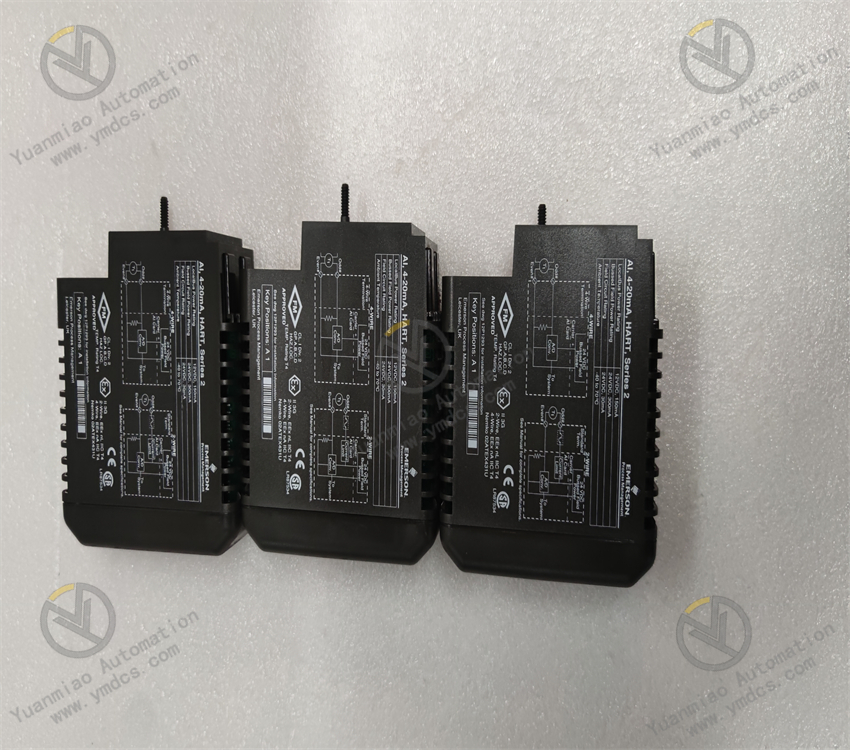

KJ3222X1-BA1 - Analog Input Card

Description

Field power supplied to this device, either at the fieldterminal or as bussed field power through theCarrier, must be removed before removing orconnecting the device. An I/O loop assessment must be complete on allenergy limited nodes. This unit cannot be removed or inserted with systempower energized. A rotary keying system ensures compatibilitybetween I/O cards and terminal blocks afterinstallation is complete.   The terminal block musthave the keys set for the I/O card with which it is tobe used. Power Specifications Local Bus Power：12 VDC at 150 mA Bussed Field Power：24 VDC at 300 mA Field Circuit：24 VDC at 30 mA/Ch. Environmental Specifications Ambient Temperature：-40 °C to +70 °C Shock：10 g half-sine wave for 11 ms Vibration：1 mm peak to peak from 2 to 13.2Hz; 0.7 g from 13.2 to 150 Hz AirborneContaminants：ISA-S71.04 –1985 AirborneContaminants Class G3 Relative Humidity：5 to 95% Non-Condensing Terminal block keyposition：A1

Power system features ◆ Wide input voltage range ● The input voltage of the rectifier module is 120~290V (new equipment reaches 90 ~290V) ◆ High power factor, high efficiency ● Power factor of 99%, efficiency of 88% ◆ Non-destructive hot swap technology, easy maintenance (small improvement to solve big problems) ◆ Network design, unmanned and remote monitoring (a variety of background monitoring) ◆ Advanced battery management function (intelligent comprehensive management) ● Temperature compensation ● Load power-off (LLVD) and Battery Low Voltage Protection (BLVD) ● Charging current limit, timed balanced charging ● Battery capacity calculation, online battery testing System principle ◆ AC power enters the rectification part through the AC distribution branch; The +24V DC power obtained by the rectifier modules is connected to the DC power distribution and provided to the communication equipment in multiple channels. ◆ Under normal circumstances, the system runs in parallel floating charging state, that is, the rectifier module, the load, the battery work in parallel, the rectifier module in addition to supply power to the communication equipment, but also provide floating charging flow for the battery. ◆ When the mains power is off, the rectifier module stops working, and the battery supplies power to the equipment to maintain the normal operation of the equipment. ◆ After the mains is restored, the rectifier module supplies power to the equipment again, and charges the battery to supplement the consumed electricity. ◆ The monitoring module adopts the centralized monitoring method to manage AC power distribution and DC power distribution, and receives the operation information of the rectifier module through the RS485 interface and carries out the corresponding control. ◆ The monitoring module can also be connected to the local computer through RS485, RS232, and can be connected to the monitoring center through the Modem or other transmission resources (such as official channels, etc.) to realize the centralized monitoring network of the power system.
