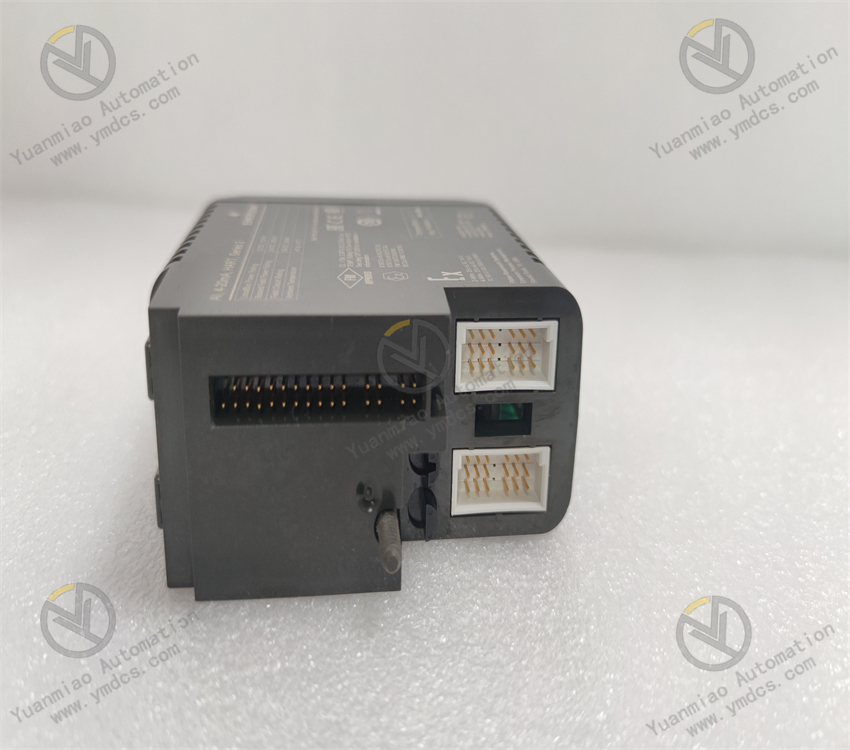

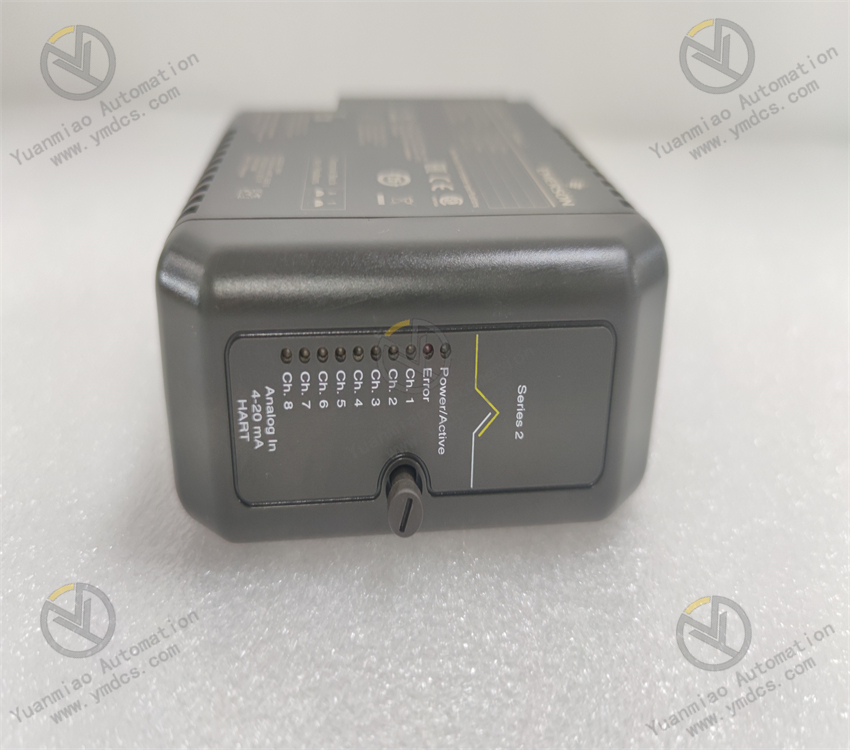

VE4003S3B1 - Standard I/O Termination Block

Description

• Manufacturer : Delta V

• Product Number : VE4003S3B1 8 Channels 4-20 mA, HART

• Product type : Standard I/O Termination Block

• Operating temperature : -40 to 70 °C (-40 to 158°F)

• Storage temperature : -40 to 85 °C (-40 to 185 °F)

• Relative humidity : 5 to 95% , non-condensing

• Airborne contaminants : ISA-S71.04-1985 Airborne Contaminants Class G3 Conformal coating

• Protection rating : IP 20

• Shock : 10 g ½-sine wave for 11 ms

• Dimensions (HxWxD), approx : 10.7cm x 4.1cm x 10.5cm

• Shipping Weight : 1.5 Kg

The following I/O cards are supported in simplex format tomeet your field wiring needs.

• AI Isolated, four channels • RTD, eight channels • Thermocouple, eight channels • Millivolt, eight channels • DI 24V DC Isolated, eight channels • Pulse Count Input, four channels (Isolated DI) • Sequence of Event, 16 channels (DI 24V DC) • DI 120V AC Low Side Detection, eight channels • DI 120V AC Isolated, eight channels • DO 24V DC Isolated, eight channels • DO 120/230V AC High Side, eight channels • DO 120/230 Isolated, eight channels

I/O Card Redundancy Redundant I/O cards are available for critical applications. The same card can be used in simplex or redundantapplications.  When installed on a two-wide redundant terminalblock, the cards are recognized as a redundant pair by thecontroller.  The controller scans each card and determines whichcard is acting as the active interface.  When a fault is detected,the system automatically switches to the standby I/O card. DeltaV control modules reference simplex and redundantI/O channels identically and there is no special configurationrequired to take advantage of redundancy Switchover of a redundant I/O card is completed withintwo scans of the I/O bus.  Make-before-break contacts ensuredigital field instruments remain powered and the processis undisturbed.  Analog output signals are briefly driven byboth cards for <5 ms during switchover of the card. Hardware alerts automatically report hardware integrity errorsfor both the primary and secondary cards.  Any event thatcauses a switchover is also reported automatically through thesystem hardware alerts and is logged in the Event Chronicle. Events that can cause a switchover include: • Hardware failure within the active card. • Communications failure between the active cardand the controller. • Detection of a fault in the field wiring
