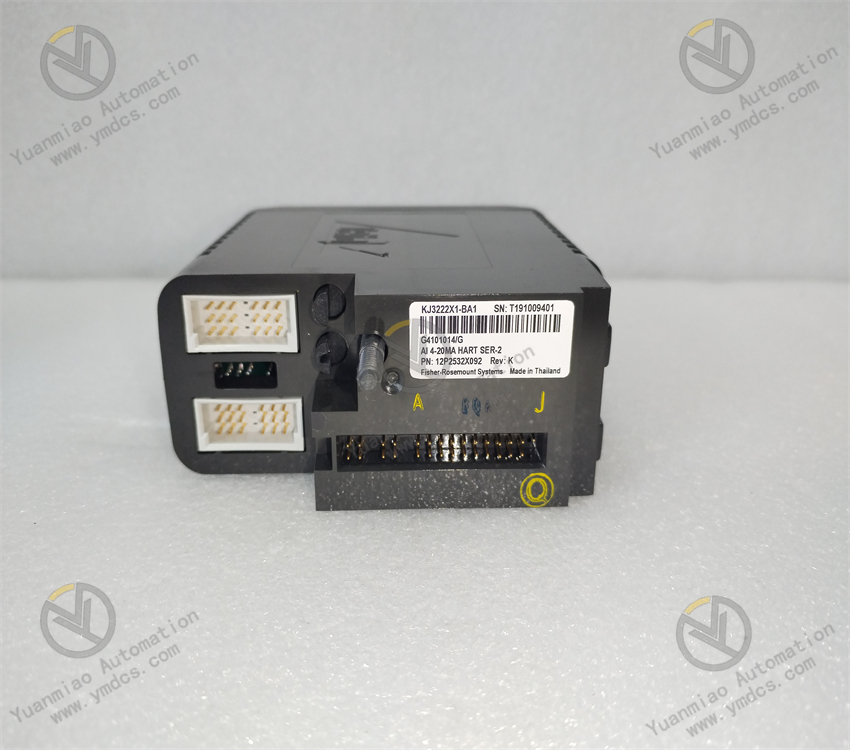

VE4033S2B1 - Redundant Analog Input Cards

Description

The DeltaV™ Traditional I/O is a modular subsystem that offers flexibility during installation by being able to be installed in the field, near your devices. Traditional I/O is equipped with function and field wiring protection keys to ensure that the correct I/O card is always plugged into the corresponding terminal block. Modularity, protection keys, and plug and play capabilities make DeltaV Traditional I/O a smart choice for your process control system. Specifications Operating Temperature：-40 to 70° C (-40 to 158° F) Storage Temperature：-40 to 85° C (-40 to 185° F) Relative humidity：5 to 95%, non-condensing Shock：10 g½-sine wave for 11 ms Vibration：1 mm peak-to-peak from 5 Hz to 16 Hz, 0.5 g from 16 Hz to 150 Hz

The Traditional I/O subsystem includes: • I/O interface carrier (a DIN rail surface mounted)on which all I/O related components are installed. • Bulk AC to 24V DC power supply for field devices. • An I/O interface consisting of an I/O card and anI/O terminal block. • A variety of analog and discrete I/O cards enclosedin a common form factor that easily plugs into theI/O interface carrier. • A variety of I/O terminal blocks mounted on the I/O interfacecarrier that can be pre-wired before I/O card installation. I/O Cards A variety of analog and discrete I/O cards are available to meetyour specific requirements.  The following cards support simplexor redundant installation: • AI 4-20 mA HART 8 channels„ AO-4-20 mA HART 8 channels • DI, 24V DC Dry Contact, 8 channels • DO 24V DC High-Side, 8 channelsA Traditional • AI (Plus) 4-20 mA HART, 16 channels • AO (Plus) 4-20 mA HART, 16 channels • DI (Plus) 24V DC, Dry Contact, 32 channels • DO (Plus) 24V DC, High-Side, 32 channels

The following I/O cards are supported in simplex formatto meet your field wiring needs. • AI Isolated, 4 channels • RTD, 8-channels • Thermocouple, 8 channels • Millivolt, 8 channels • DI, High Density, 32 channels • DI 24V DC Isolated, 8 channels • Multi-Function, 4 channels (Isolated DI) • Sequence of Event, 16 channels (DI 24 V DC) • DI 120V AC Low Side Detection, 8 channels • DI 120V AC Isolated, 8 channels • DO 24V DC Isolated, 8 channels • DO 120/230V AC High-Side, 8 channels • DO 120/230 Isolated, 8 channels

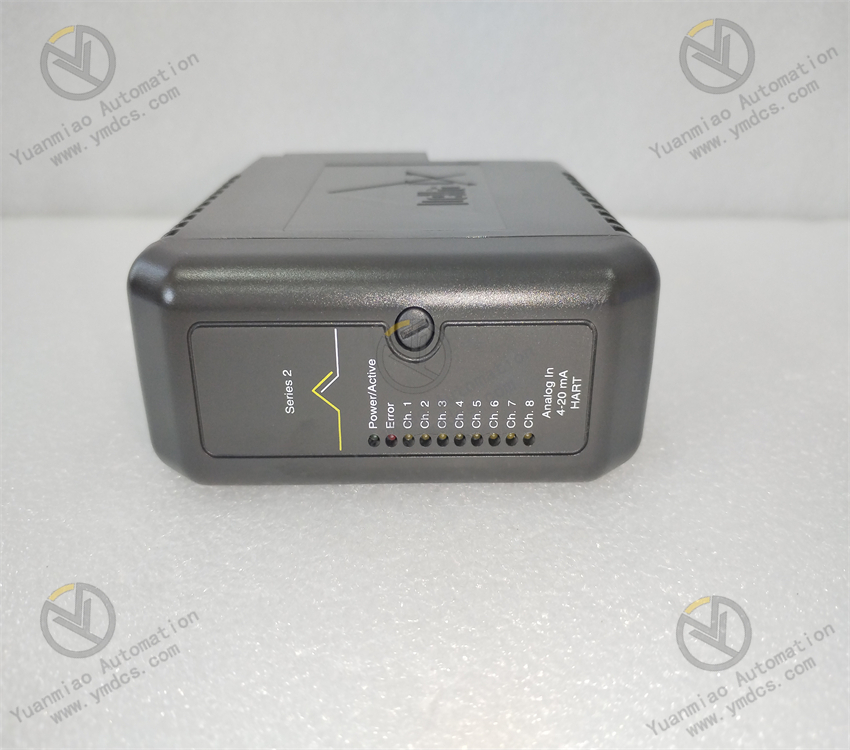

All I/O cards are enclosed in a common form factor that plugsinto the I/O interface carrier.  The housing is clearly labeled withthe enclosed I/O card type.  All cards have power and internalerror indicators.  Eight-channel cards have clearly visible channelstatus LEDs. All cards meet ISA G3 corrosion specifications by the carefulselection of superior electronic components and the use ofconformal coating. Pulse Counters are available on most DI cards.  The supportedmaximum frequency varies from 0.1 Hz on AC signals to75 or 120 Hz on 24V DC inputs.  For higher pulse counts,up to 50 KHz, use the Multi-Function card’s high speedpulse input. The DeltaV system provides control module level timestamping for log events and alarms.  For greater eventresolution, the 16-channel Sequence-of-Events DI cardcan provide signal driven events to a resolution of +/- 0.25 msper card, or within 1 ms per controller.  Please refer tothe Sequence-of-Events PDS for more information onSequence-of-Event data collection and system optionsfor this feature.
