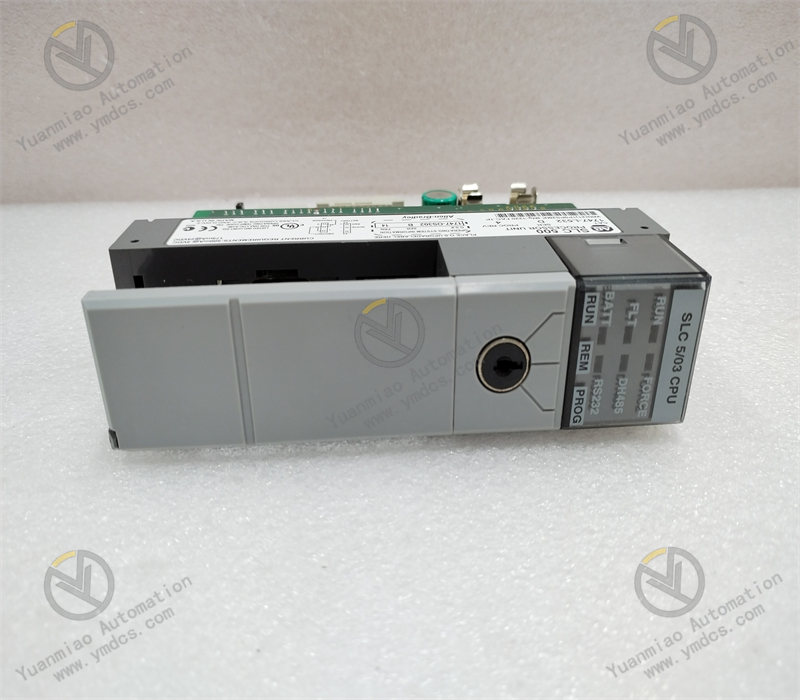

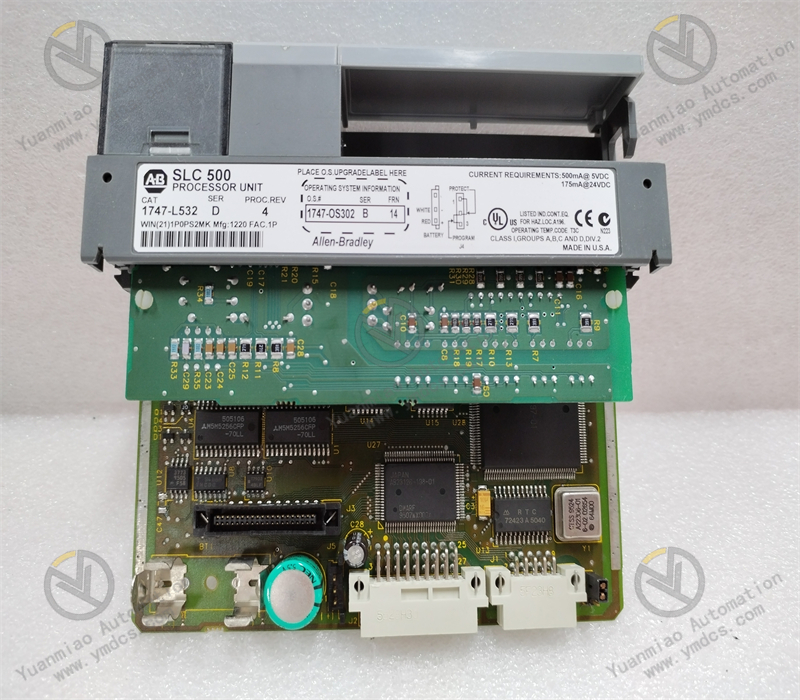

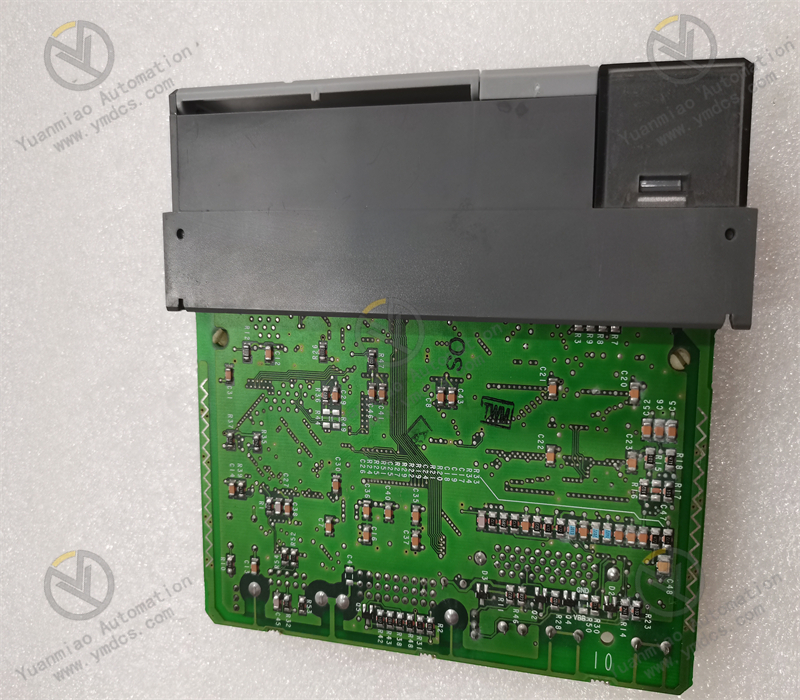

1747-L532 | Controller Module

Description

Description: The 1747-L532 is an SLC 5/03 controller module for the SLC 500 Modular Hardware by Allen-Bradley. It comes with Memory of 16KB, and built-in communication interfaces such as RS-232 Port and DH485 communication port. It is capable of 4096 Inputs points and 4096 Outputs points with an Analog I/O count of 480, 16K words of user memory, and an I/O scan time of 0.225 milliseconds.

Technical Specifications for 1747-L532

The Allen-Bradley 1747-L532 is an SLC 5/03 Processor that is a part of the SLC 500 system. It is a small, simple, and pocket-sized processor with a wide range of applications such as small process control, material handling, and HVAC control. It contains a PLC-5 processor-based advanced instruction set. It can be stand-alone or distributed throughout a system for SCADA applications. The 1747-L532 processor has a total user memory of 16K words with 12K words for data/program and 4K words for data alone. It has up to 4096 inputs, 4096 outputs, and 480 local analog I/Os. It has a program scan time per keyword of 1 millisecond. The 1747-L532 has a backplane current of 500 mA at 5 Volts DC and of 175 mA at 24 Volts DC. It has a maximum of 2 local I/O chassis with a maximum of 30 module I/O slots in a local I/O chassis. For communication, it uses DH-485 and RS-232 ports that can be configured for connection to a 1761-NET-AIC converter. It has standard battery-backed RAM and Flash backup memory. With this processor, the remote I/O scanner module and DeviceNet scanner module can be installed to configure I/O via a universal remote link or a DeviceNet network. The 1747-L532 processor provides 0.44 milliseconds bit-instruction execution time and 10 times the overall system that its competitors do. It has various additional capabilities such as online programming, flash memory upgrades, floating-point math, a built-in real-time clock, key-switch, and calendar. The 1747-L532 is intended for use in clean and dry industrial environments with a 0 to 60 degrees Celsius operating temperature and a 30G of operating shock.

The 1747-L532 Programmable Logic Controller (PLC) is an SLC 500 processor that is also known as SLC 5/03 controller. This controller is designed for use with the Modular Style SLC 500 series that is manufactured by Allen-Bradley. This specific controller is capable of implementing basic and advanced instructions that allows any user to construct a simple user program to complex control logic. These instructions include Bit, Timer, Controller, Comparison, Basic Math, Move, Copy, and Bit Shift, Sequencer, Jump and Subroutine, Messaging, STI, FIFO/LIFO, PID, Advanced Math and Trig instructions. The integrated communication port of this controller is a single RS232 port that can be configured as DF1 or DH485, both for peer-to-peer applications. The default configuration of the RS232 is DF1 Full-duplex, handshaking disabled, communication rate of 19.2Kbaud, CRC Error check, duplicate packet detects on and parity set to none. It may also be auto-detected in the RSLinx communication tool through the auto-config driver mode. The default settings of Channel 1 DH485 port are 19.2 Kbaud and node address = 1. The integrated memory of this SLC 5/03 processor is 16KB. This controller supports burning of program to a back-up memory to allow automatic loading of user program upon power cycle. This prevents unwanted deletion of PLC program when the integrate 1747-BA is drained. This Battery is provided with a LED indicator to indicate the state of the battery’s power.
