Description

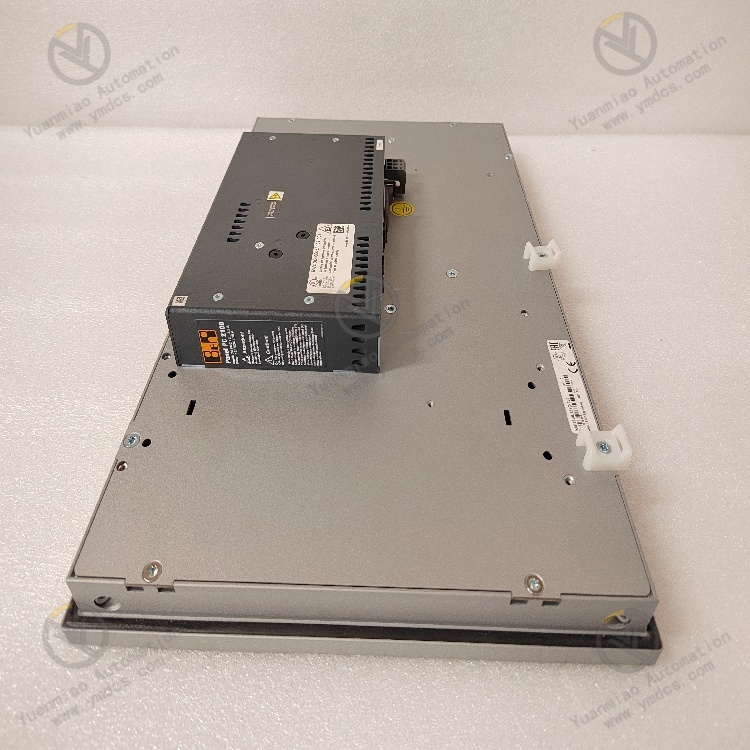

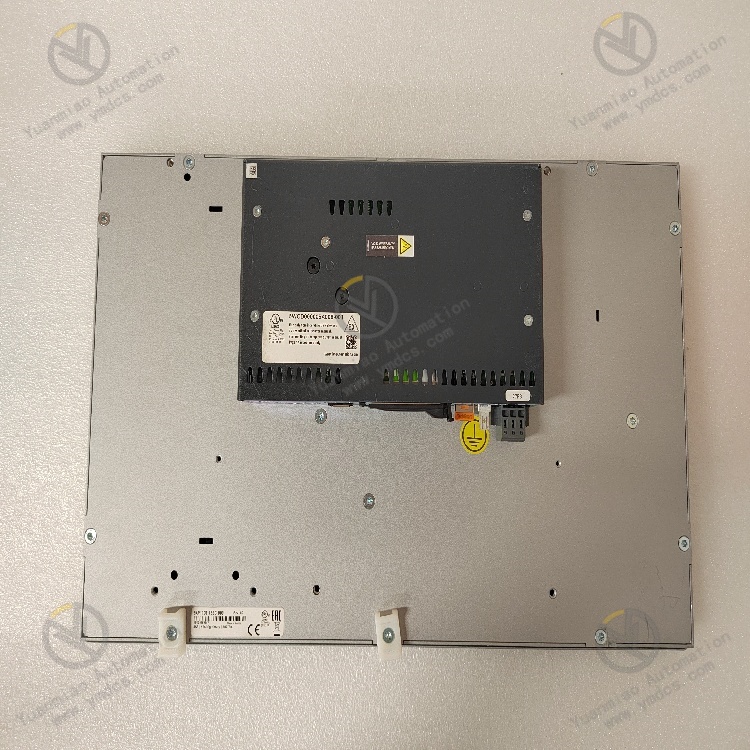

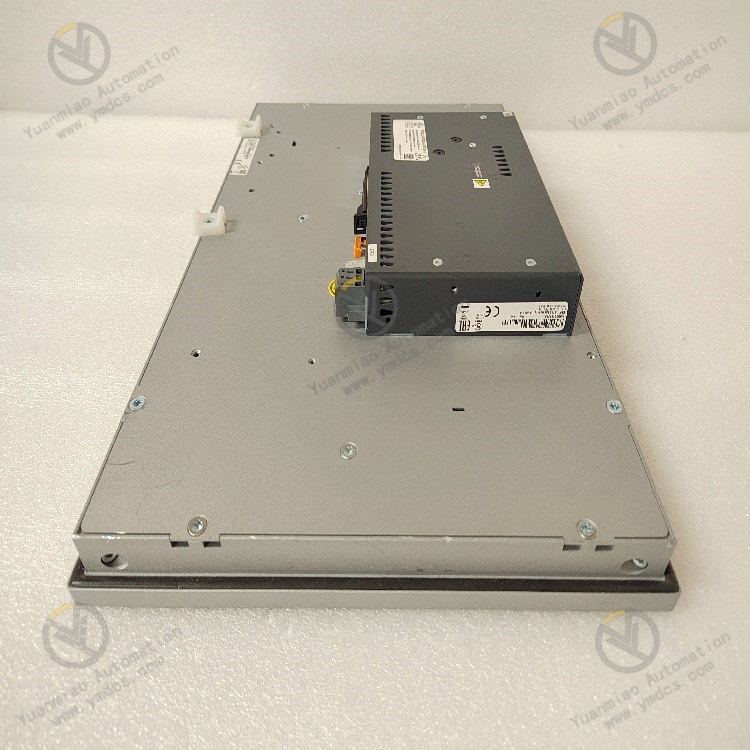

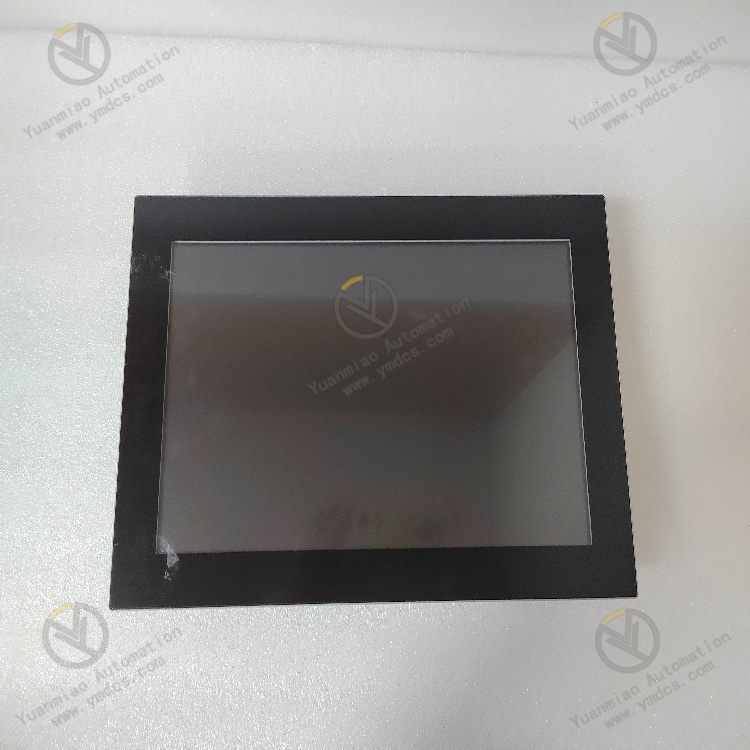

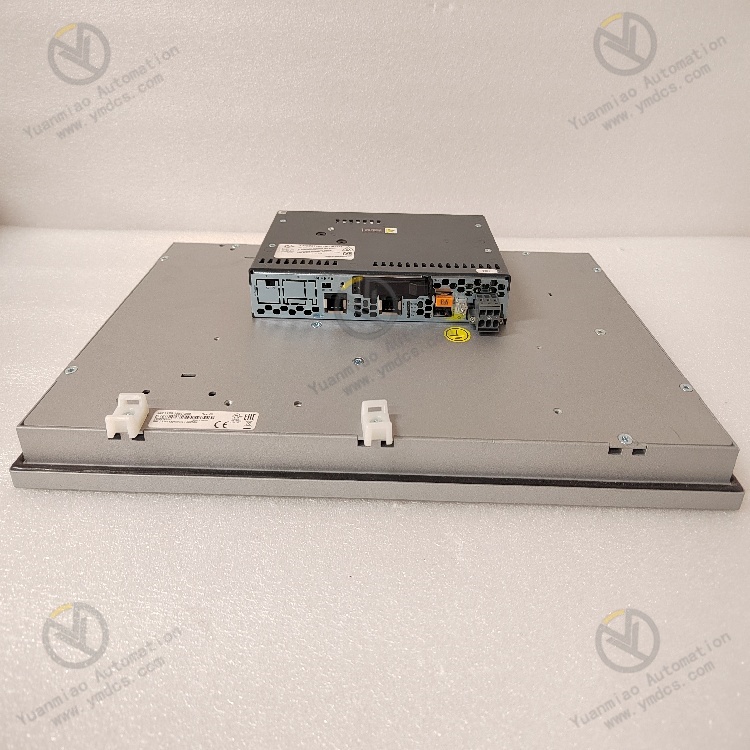

B&R 5AP1130.156C - 000 is a 15.6-inch automation panel manufactured by B&R. Display Characteristics: It is equipped with a full HD TFT color display screen. The resolution is 1920×1080 pixels (16:9), and it can display 16.7 million colors, presenting vivid colors and clear images. The backlight type is LED, and the half-brightness time is ≥ 50,000 hours, which means it has a relatively long service life. The touch technology is projected capacitive multi-touch, which is highly sensitive in operation and supports a variety of gesture controls, making it convenient for users to interact.
Installation Method: It is suitable for installation in control cabinets and has a horizontal format. It can be easily installed in industrial control cabinets, saving space and facilitating operation and monitoring.
Application Scenarios: It is mainly used for panel PCs of the PPC 900/PPC 2100/PPC 3100/PPC 2200 series, as well as link modules. It is widely applied in industries such as the automotive industry, electronics industry, food processing, machining and manufacturing, garment processing industry, and modern logistics.
Environmental Adaptability: It complies with the pollution degree 2 specified in the EN 61131 - 2 standard. It can adapt to a certain degree of industrial pollution environment, has good robustness and reliability, and can operate stably in relatively harsh industrial environments.
Technical Parameters: Electrical Characteristics Power Supply Voltage: Generally supports 24 V DC (usually allows a certain voltage fluctuation range, such as ±10% to ±20%, to adapt to the actual situation of the power supply in the industrial field). This common industrial power supply specification facilitates integration with other industrial devices. Power Consumption: The overall power consumption is relatively low. Usually, the power consumption in normal working condition may be around 15 - 30 W. Low power consumption helps to reduce energy consumption and heat dissipation requirements.
Mechanical Characteristics Dimensions: The specific dimensions may vary depending on the design of the frame and other factors. However, generally, the width is approximately 376 mm, the height is about 214 mm, and the thickness is around 40 - 50 mm. Such a compact size design is suitable for installation in various industrial control cabinets. Weight: The weight of the device is usually around 2 - 3 kg, which is convenient for handling and installation. Protection Level: The protection level of the front panel can usually reach IP65. This means that it can effectively prevent dust from entering and can withstand water splashes from all directions without affecting normal operation, making it suitable for relatively harsh industrial production environments.
Communication Interfaces Ethernet Interface: Usually equipped with at least one Ethernet interface, supporting common industrial Ethernet protocols such as POWERLINK, Ethernet/IP, etc. It can be used for high-speed data communication and real-time control with other industrial devices (such as PLCs, sensors, actuators, etc.). USB Interfaces: Generally, there are multiple USB interfaces (such as 2 - 4), which can be used to connect external storage devices (such as USB flash drives) for data backup and program updates. They can also be connected to input devices such as mice and keyboards for convenient operation. Other Interfaces: It may also have serial communication interfaces (such as RS - 232, RS - 485) for communication connections with some traditional industrial devices.
Software Characteristics
Operating System: Usually pre-installed with an embedded operating system suitable for industrial applications, such as Windows Embedded Standard or Linux, etc., providing a stable platform for running industrial automation software.
Software Development Support: It supports B&R's Automation Studio software development environment. In this environment, operations such as interface design, programming, debugging, and maintenance can be carried out conveniently to achieve various complex industrial automation control and monitoring functions.
