Description

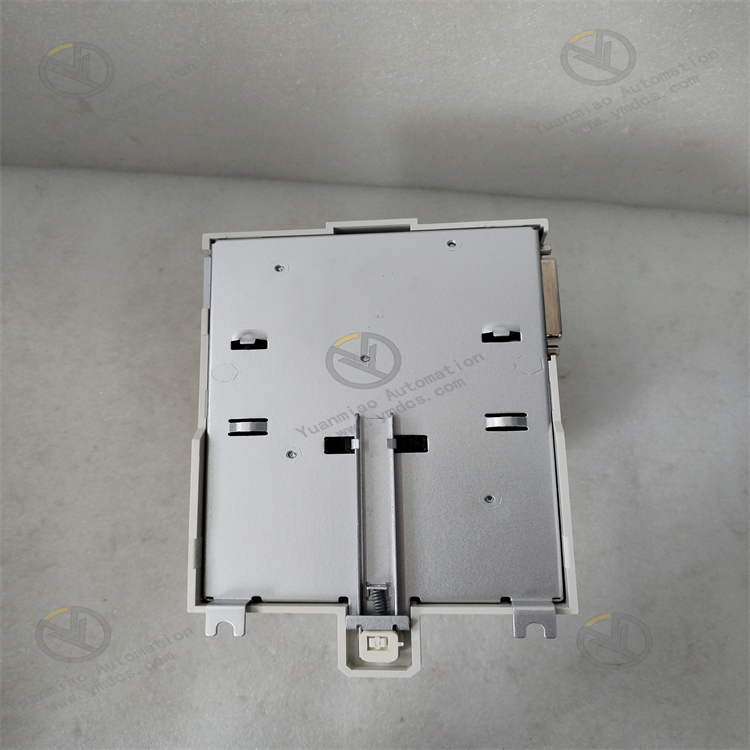

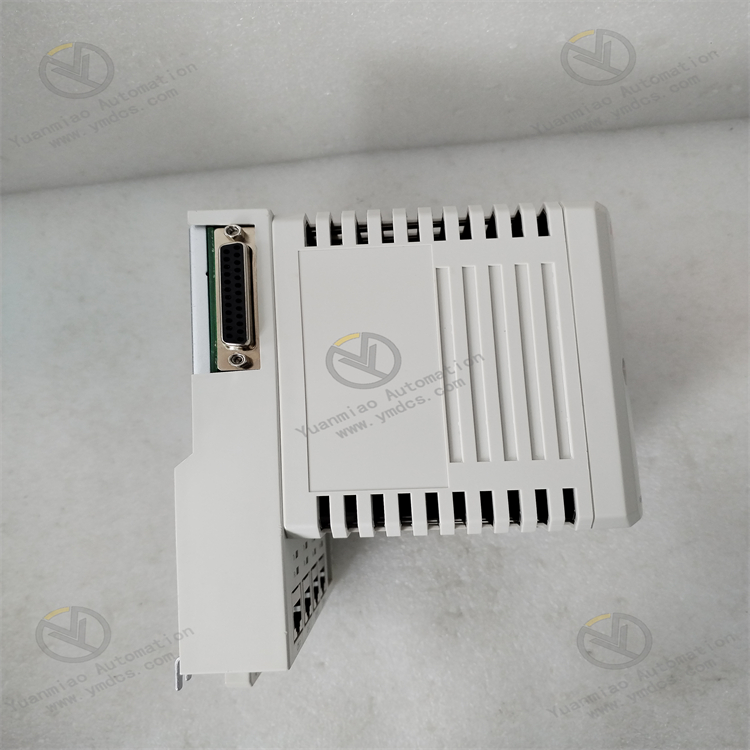

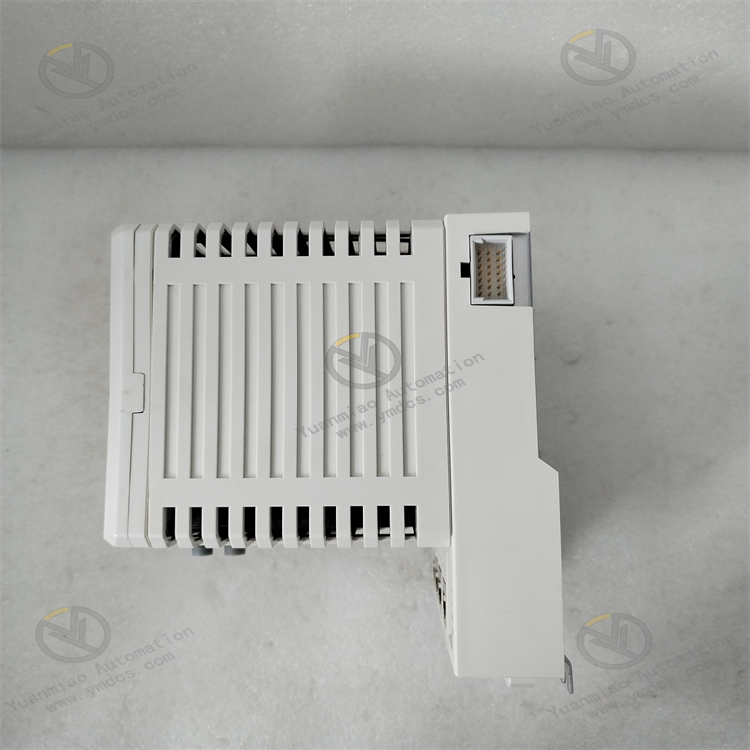

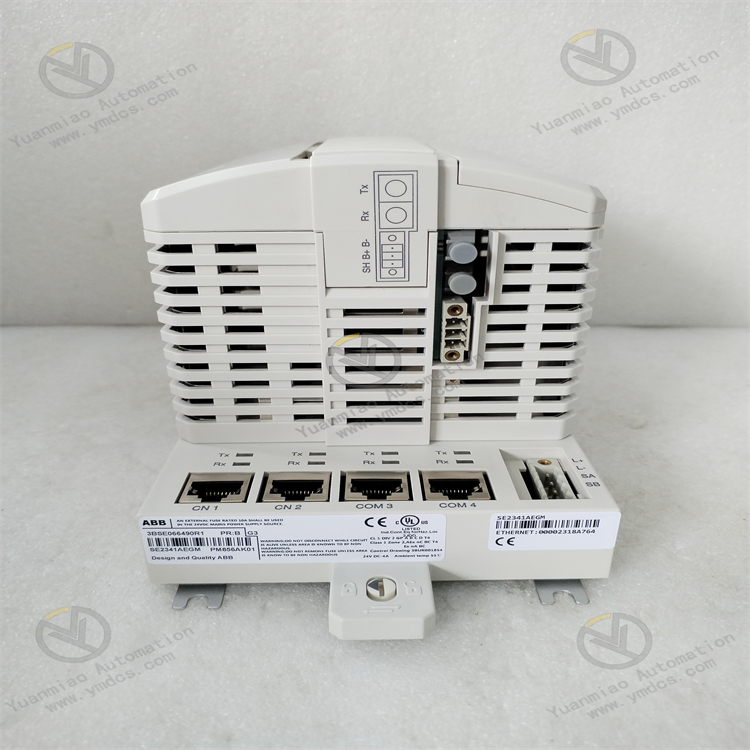

PM856AK01 | ABB | AC 800M | Processor Unit Kit
| Article number | 3BSE066490R1 (PM856AK01) |
| Clock Frequency | 24 MHz |
| Performance, 1000 boolean operations | 0.46 ms |
| Performance | 0.46 ms |
| Memory | 16 MB (from 800xA 5.1 FP4) |
| RAM available for application | 10.337 MB (from 800xA 5.1 FP4) |
| Processor type | MPC860 |
| Switch over time in red. conf. | NA |
| No. of applications per controller | 32 |
| No. of programs per application | 64 |
| No. of diagrams per application | 128 |
| No. of tasks per controller | 32 |
| Number of different cycle times | 32 |
| Cycle time per application programs | Down to 1 ms |
| Flash PROM for firmware storage | 2MB |
| Power supply | 24 V d.c. (19.2-30 V d.c.) |
| Power consumption +24 V typ/max | 180 / 300 mA |
| Power dissipation typ. | 4.32 W (7.2 W max) |
| Built-in back-up battery | Lithium, 3.6 V |
| Clock synchronization | 1 ms between AC 800M controllers by CNCP protocol |
| Event queue in controller per OPC client | Up to 3000 events |
| AC 800M transm. speed to OPC server | 36-86 events/sec ,113-143 data messages/sec |
| Comm. modules on CEX bus | 12 single CEX bus modules |
| Supply current on CEX bus | Max 2.4 A |
| I/O clusters on Modulebus with non-red. CPU | 1 electrical, 7 optical |
| I/O clusters on Modulebus with red. CPU | NA |
| I/O capacity on Modulebus | Max 96 I/O modules |
| Modulebus scan rate | 0 - 100 ms (actual time depending on number of I/O modules) |
| Supply current on Electrical Modulebus | 24 V : max 1.0 A 5 V : max 1.5 A |
| Ethernet channels | 2 |
| Ethernet interface | Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole) |
| Control Network protocol | MMS (Manufacturing Message Service) and IAC (Inter Application Communication) |
| Recommended Control Network backbone | 100 Mbit/s switched Ethernet |
| Real-time clock stability | 100 ppm (approx. 1 h/year) |
| RS-232C interface | 2 (one general, 1 for service tool) |
| RS-232C interface (COM3) (non red. only) | RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support |
| RS-232C interface (COM4) (non red. only) | RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support |
| Temperature, Operating | +5 to +55 °C (+41 to +131 °F) |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Temperature changes | 3 °C/minutes according to IEC/EN 61131-2 |
| Pollution degree | Degree 2 according to IEC/EN 61131-2 |
| Corrosion protection | G3 compliant to ISA 71.04 |
| Relative humidity | 5 to 95 %, non-condensing |
| Emitted noise | < 55 dB (A) |
| Vibration | 10 < f < 50 Hz: 0.0375 mm amplitude, 50 < f < 150 Hz: 0.5 g acceleration, 5 < f < 500 Hz: 0.2 g acceleration |
| Rated Isolation Voltage | 500 V a.c. |
| Dielectric test voltage | 50 V |
| Protection class | IP20 according to EN 60529, IEC 529 |
| Altitude | 2000 m (6 562 ft) according to IEC/EN 61131-2 |
| Emission & Immunity | EN 61000-6-4, EN 61000-6-2 |
| Environmental conditions | Industrial |
| Electrical Safety | EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201 |
| Hazardous location | cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X |
| Marine certificates | ABS, BV, DNV-GL, LR |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
| Width | 119 mm (4.7 in.) |
| Height | 186 mm (7.3 in.) |
| Depth | 135 mm (5.3 in.) |
| Weight (including base) | 1100 g (2.4 lbs) |
